Power, Ground and Low Speed GMLAN

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

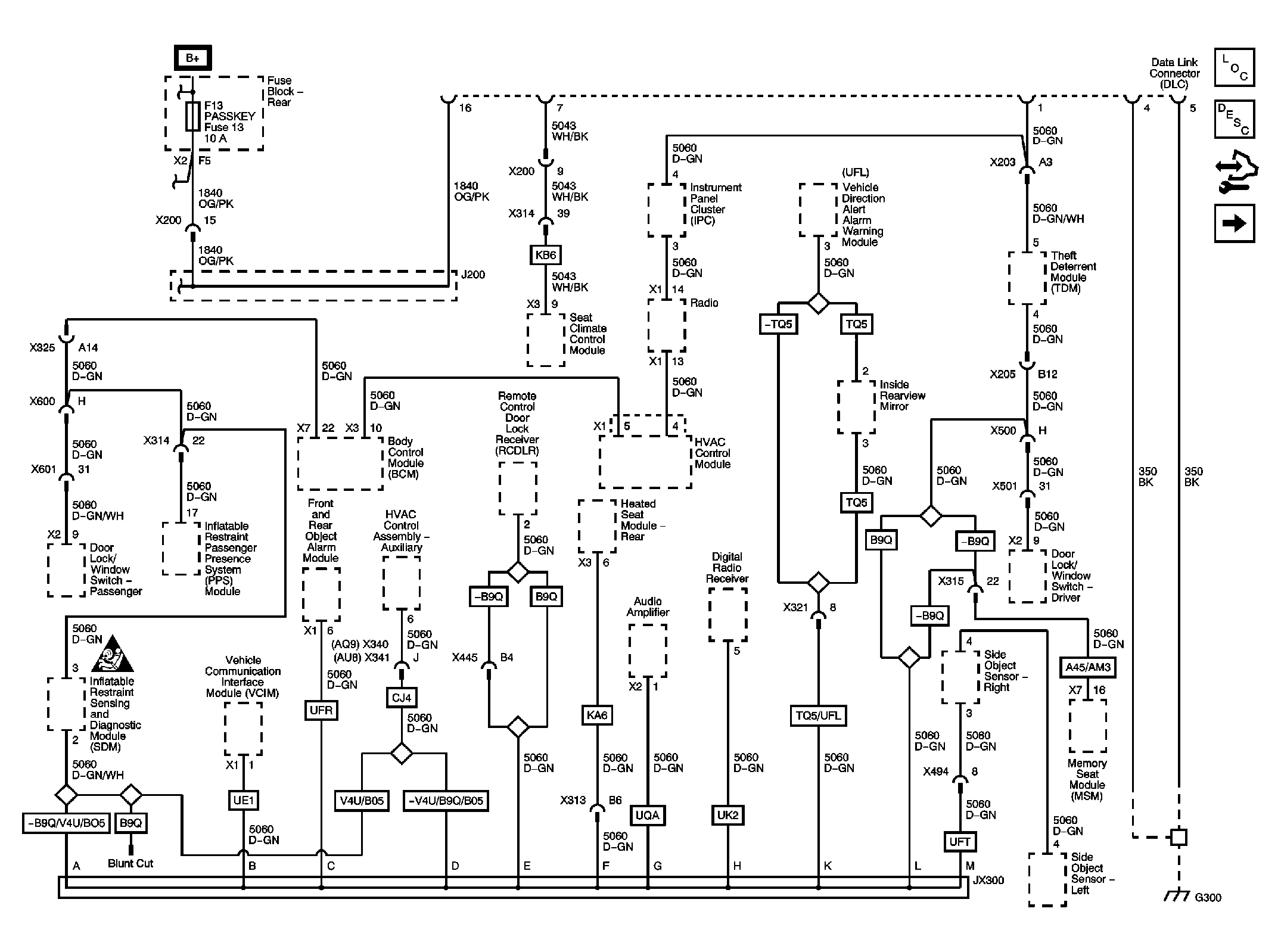

Fig 1: Power, Ground and Low Speed GMLAN Wiring Schematic
GM2398518Courtesy of GENERAL MOTORS COMPANY
