Linear Interconnect Network (LIN)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

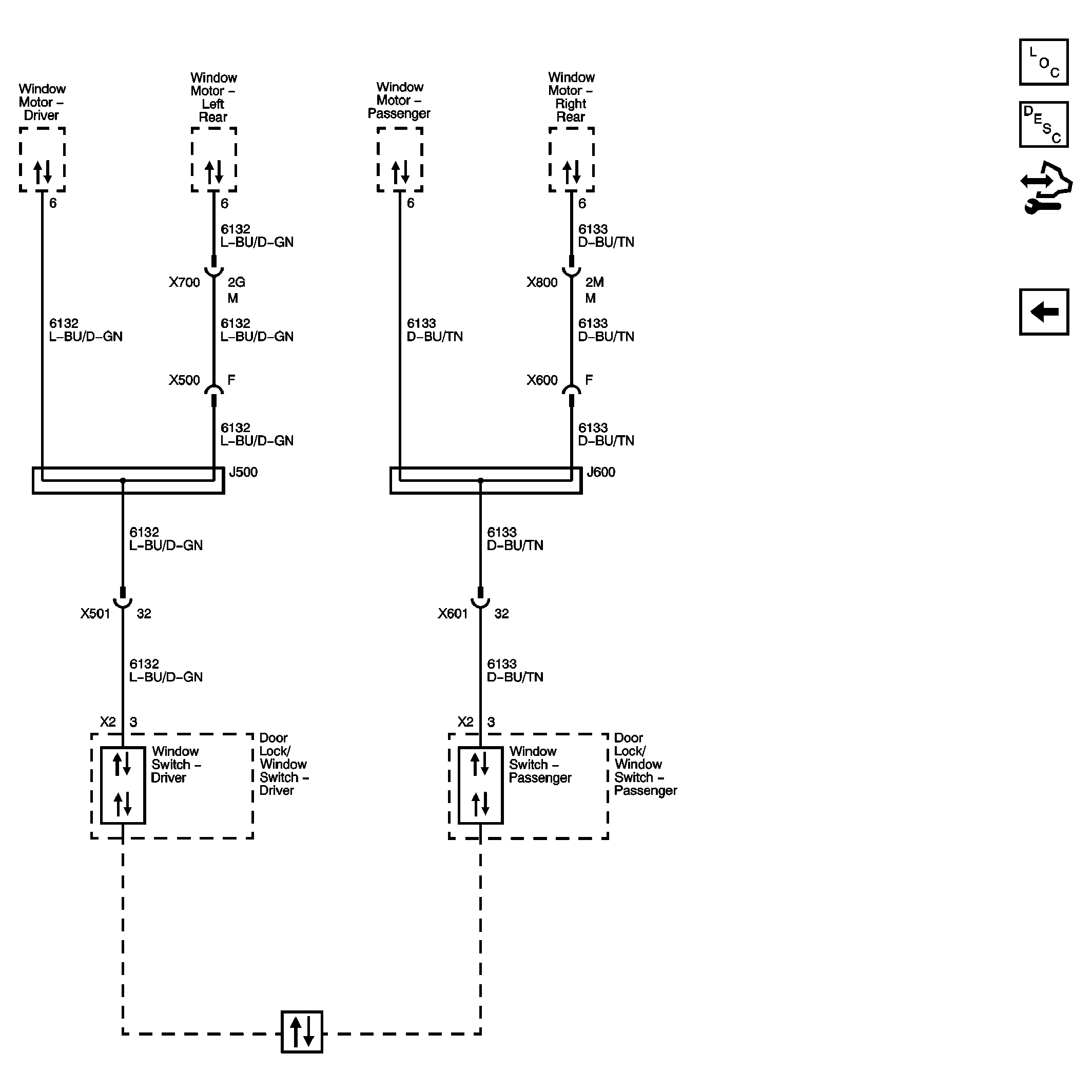

Fig 1: Linear Interconnect Network (LIN) Wiring Schematic
GM2398527Courtesy of GENERAL MOTORS COMPANY
