Subsystem References (4 of 4)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

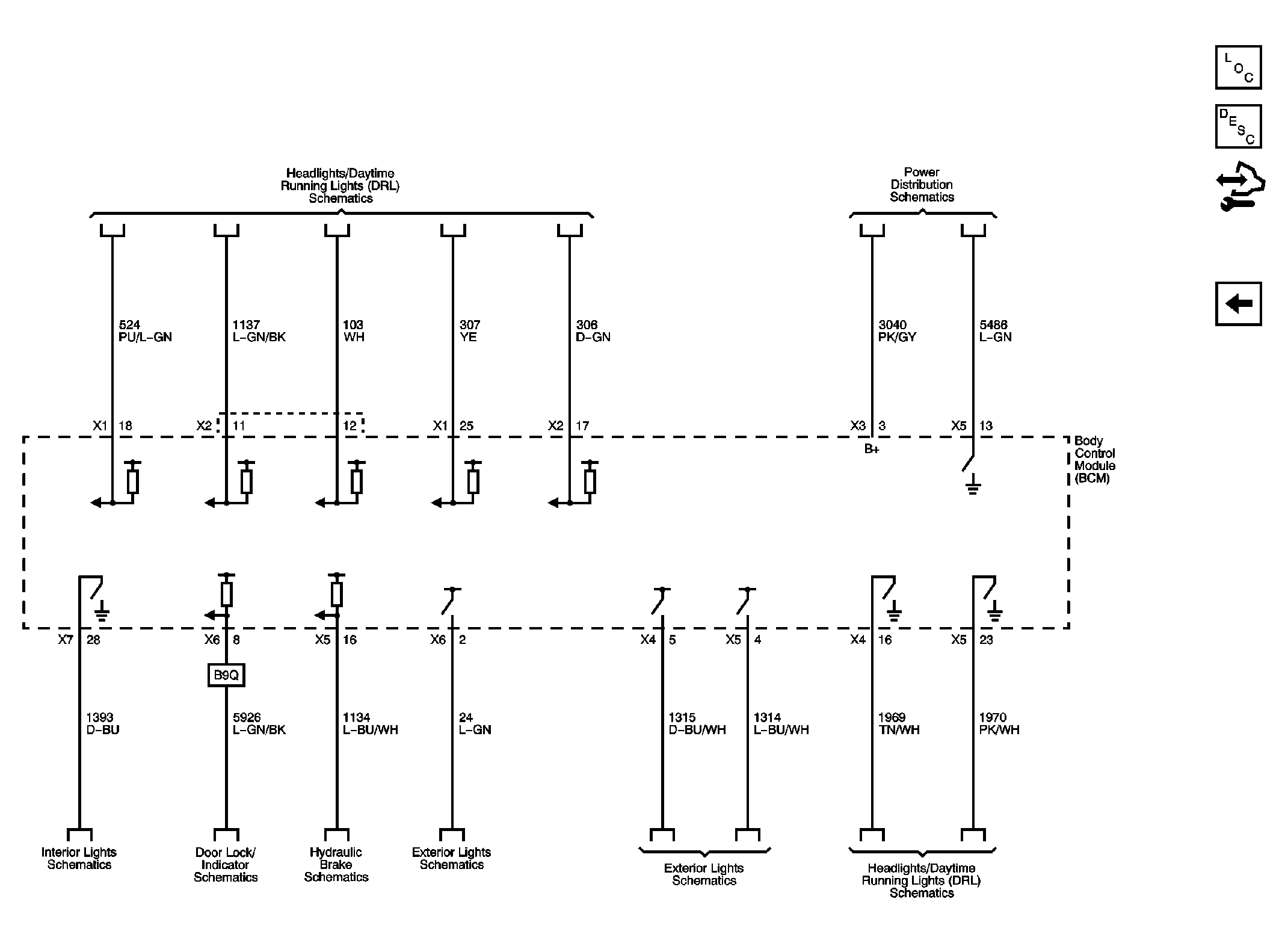

Fig 1: Subsystem References Wiring Schematic (4 of 4)
GM2398579Courtesy of GENERAL MOTORS COMPANY
