Removal Procedure

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Without disconnecting the intermediate steering shaft, lower the steering column assembly. Refer to Steering Column Replacement .
  2. Remove the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
  3. Remove the nuts and position aside the accelerator pedal position sensor. Refer to Accelerator Pedal Position Sensor Replacement .

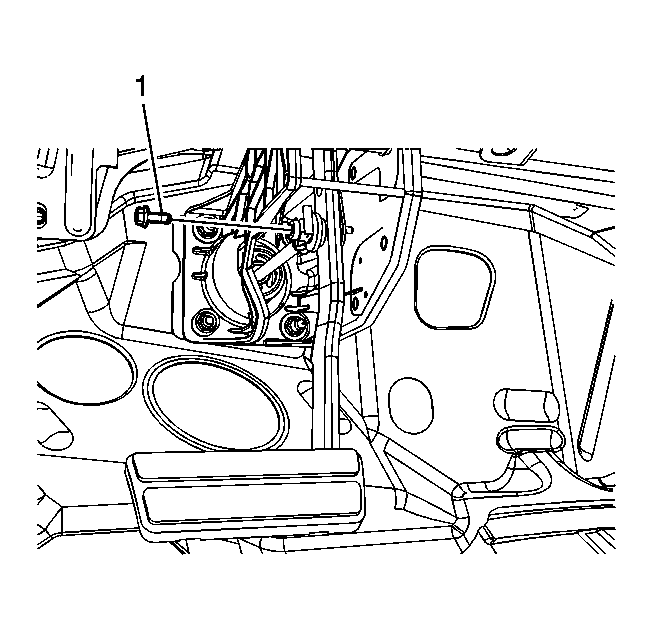

    4. Fig 1: Brake Pedal Pushrod Retaining Clip Verification Bolt
    GM2197491Courtesy of GENERAL MOTORS COMPANY
  4. Remove the brake pedal pushrod retaining clip verification bolt (1).

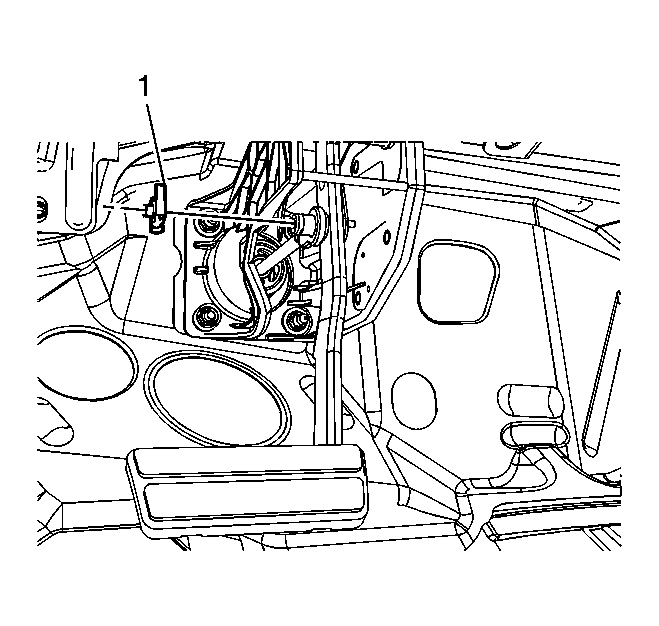

    5. Fig 2: Brake Pedal Pushrod Retaining Clip
    GM2197492Courtesy of GENERAL MOTORS COMPANY
  5. Remove the brake pedal pushrod retaining clip (1).

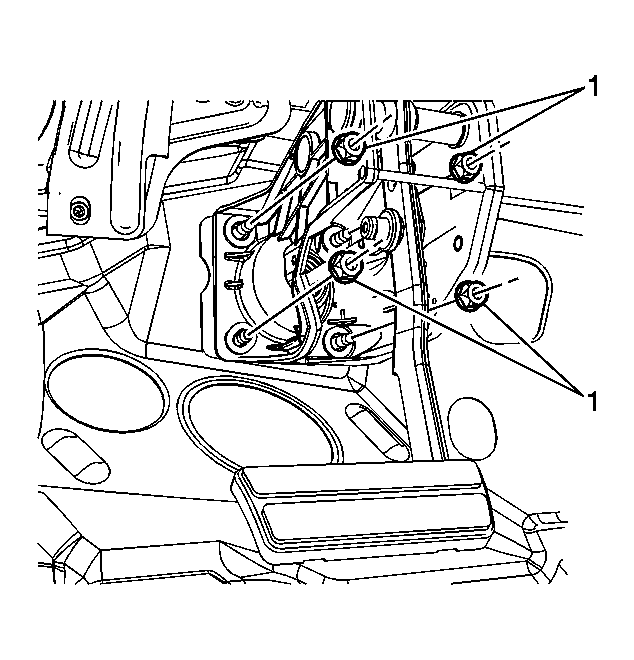

    6. Fig 3: Brake Pedal Assembly & Nuts
    GM2197493Courtesy of GENERAL MOTORS COMPANY
  6. Remove the brake pedal assembly nuts (1).
  7. Disconnect the brake pedal pushrod.
  8. Remove the brake pedal assembly.
