Without A45

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

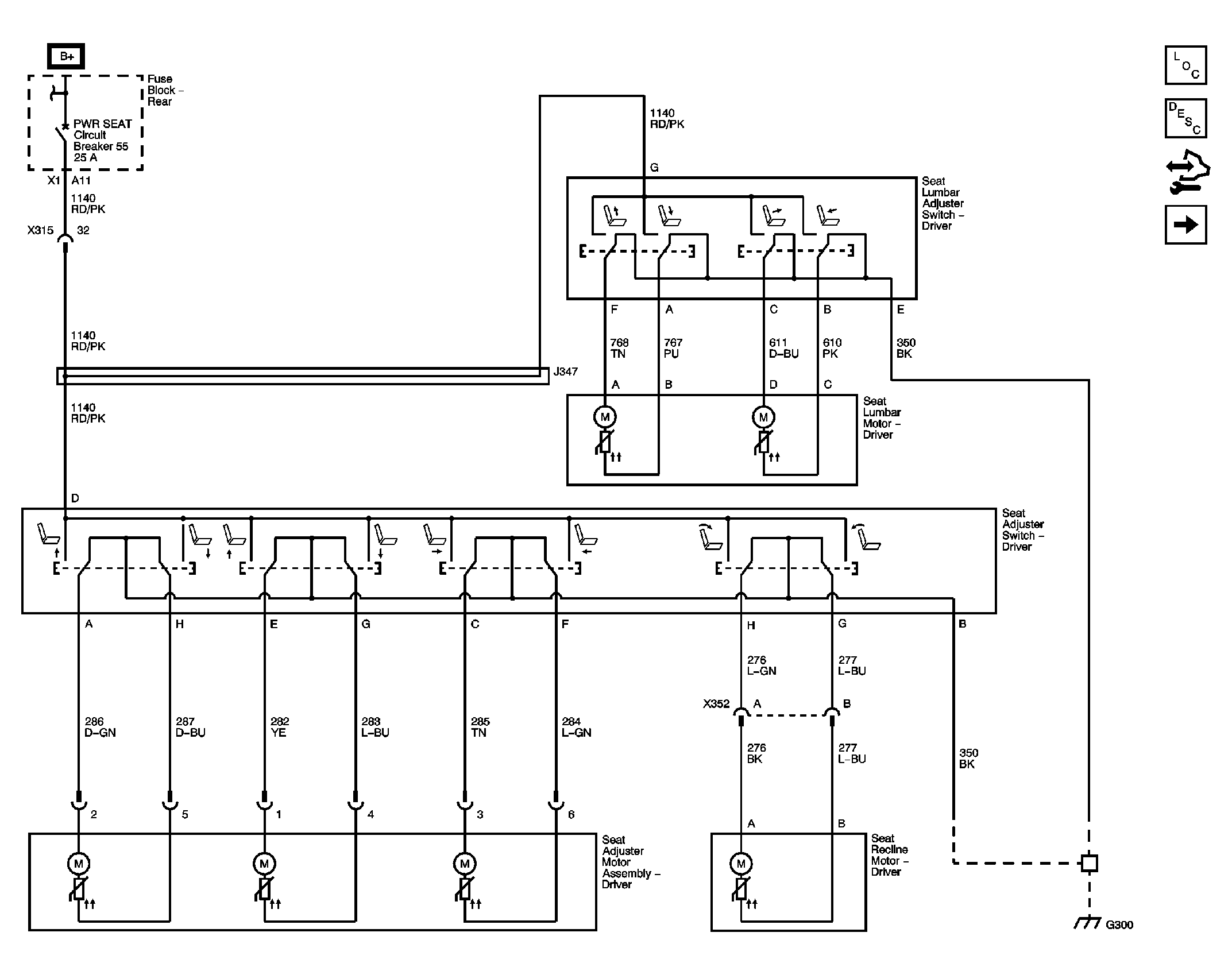

Fig 1: Driver Seat Wiring Schematic (Without A45)
GM2398987Courtesy of GENERAL MOTORS COMPANY
