Left Rear Heated Seat Switch (KA6)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

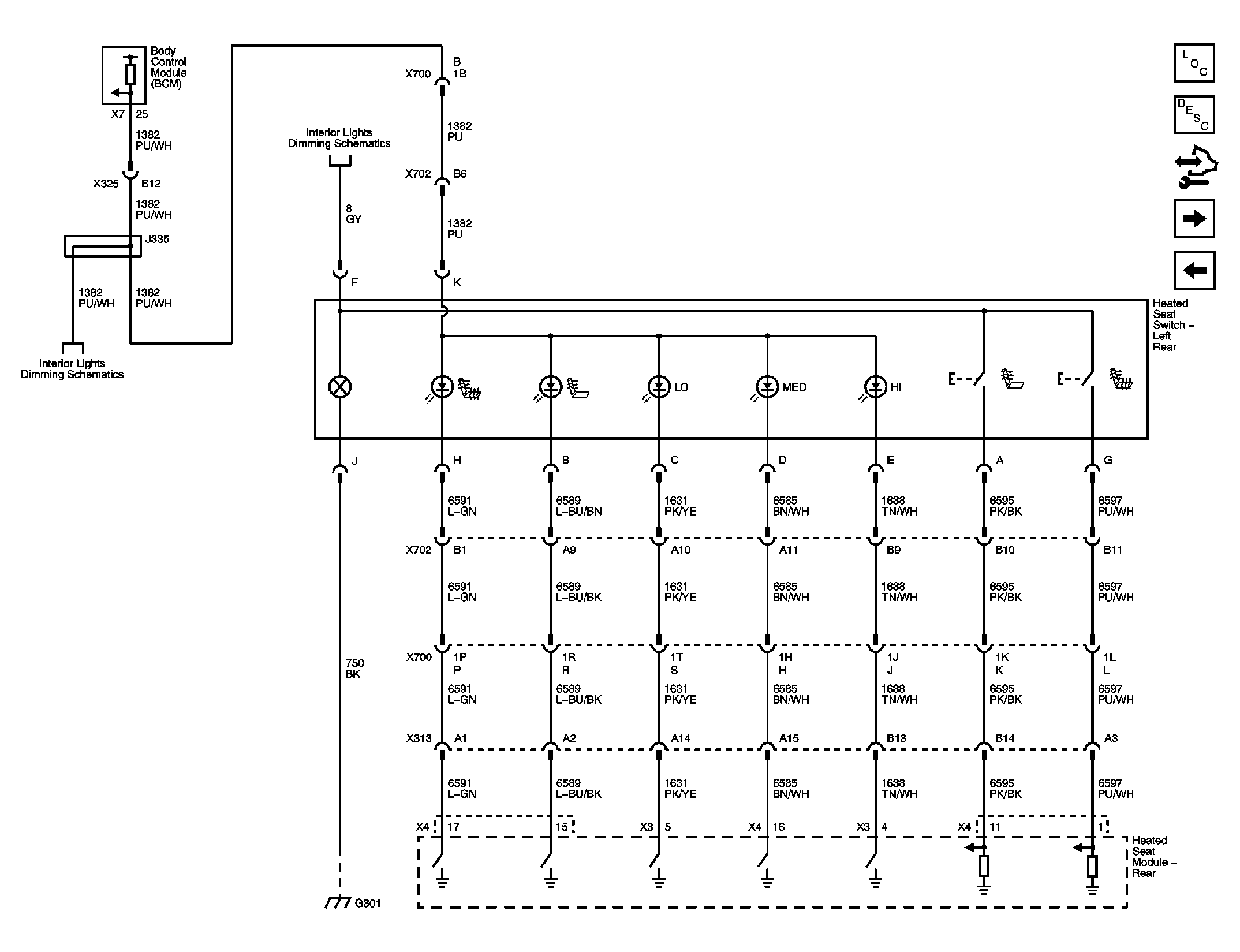

Fig 1: Left Rear Heated Seat Switch (KA6) Wiring Schematic
GM2399023Courtesy of GENERAL MOTORS COMPANY
