Digital Radio and Mobile Telephone and Vehicle Location Base Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

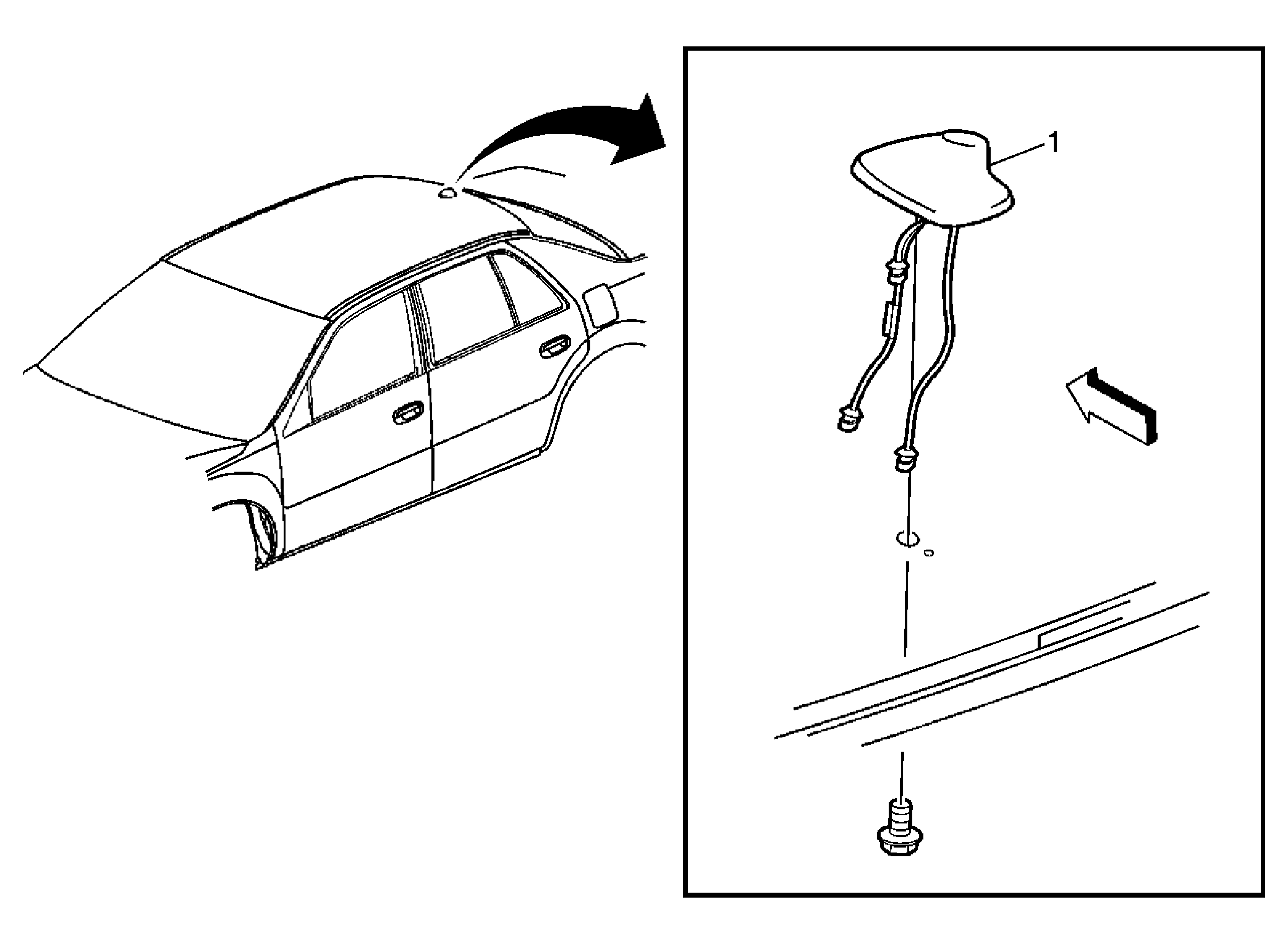

Fig 1: Digital Radio And Mobile Telephone And Vehicle Location Base Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the headliner trim panel to access the antenna base fastener. Refer to Headlining Trim Panel Replacement (Without PLA) or Headlining Trim Panel Replacement (With PLA) .
1	Digital Radio and Mobile Telephone and Vehicle Location Base Assembly CAUTION: Refer to Fastener Caution . Procedure Loosen the integral nut. Disconnect the electrical connections. Disconnect the antenna cables. Feed the wiring and cable up through the hole in the roof panel. Tighten: 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure:
Lower the headliner trim panel to access the antenna base fastener. Refer to Headlining Trim Panel Replacement (Without PLA) or Headlining Trim Panel Replacement (With PLA) .

Digital Radio and Mobile Telephone and Vehicle Location Base Assembly

CAUTION: Refer to Fastener Caution .

Procedure

Loosen the integral nut.
Disconnect the electrical connections.
Disconnect the antenna cables.
Feed the wiring and cable up through the hole in the roof panel.

Tighten: 10 N.m (89 lb in)
