Section 122 (Antilock Brake System)
>>
Wiring Schematics
>>
Antilock Brake System Wiring Schematics
>>
Wheel Speed Sensors
Wheel Speed Sensors
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

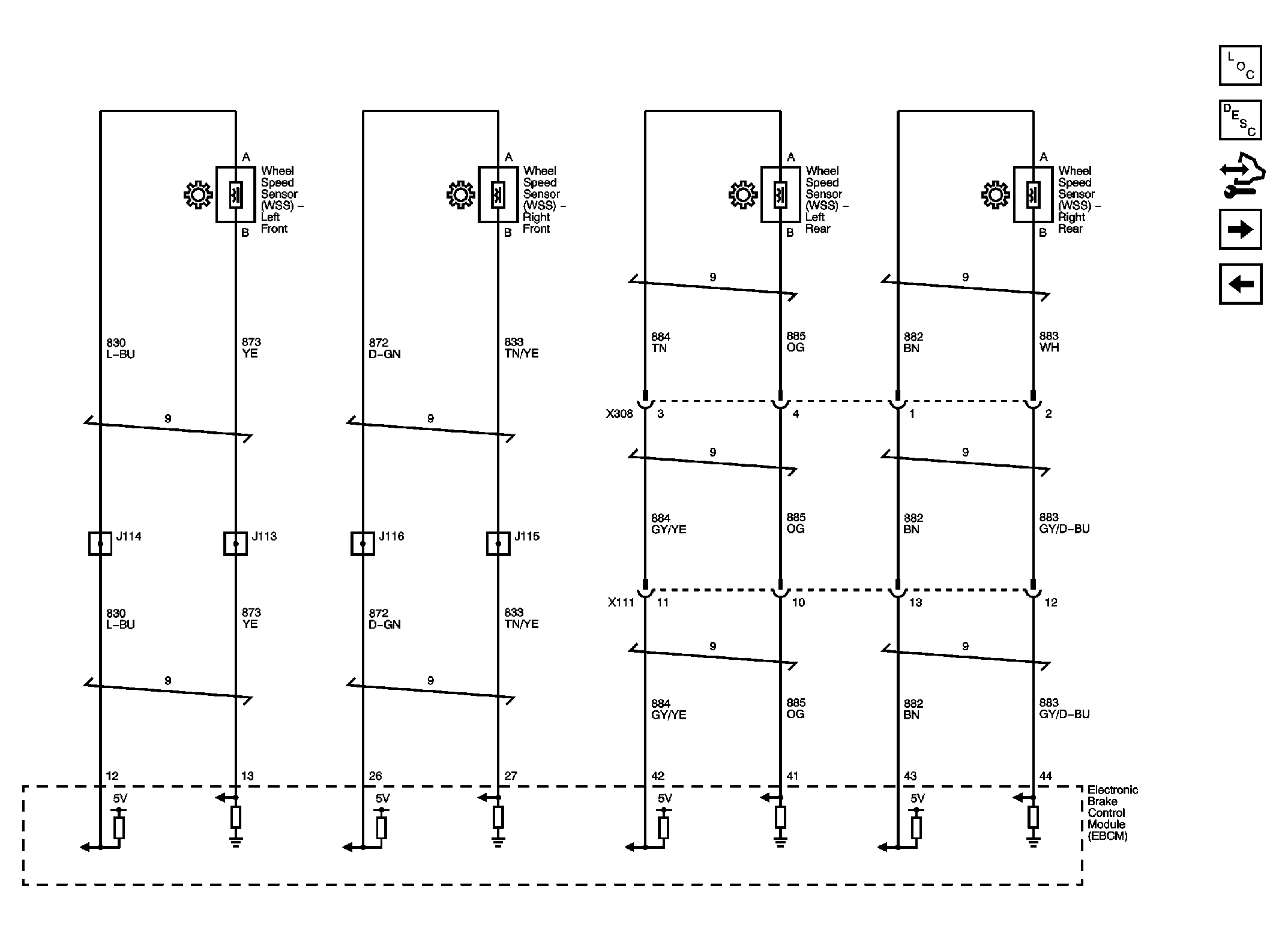

Fig 1: Wheel Speed Sensors Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
