Tilt/Telescoping Steering Column Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

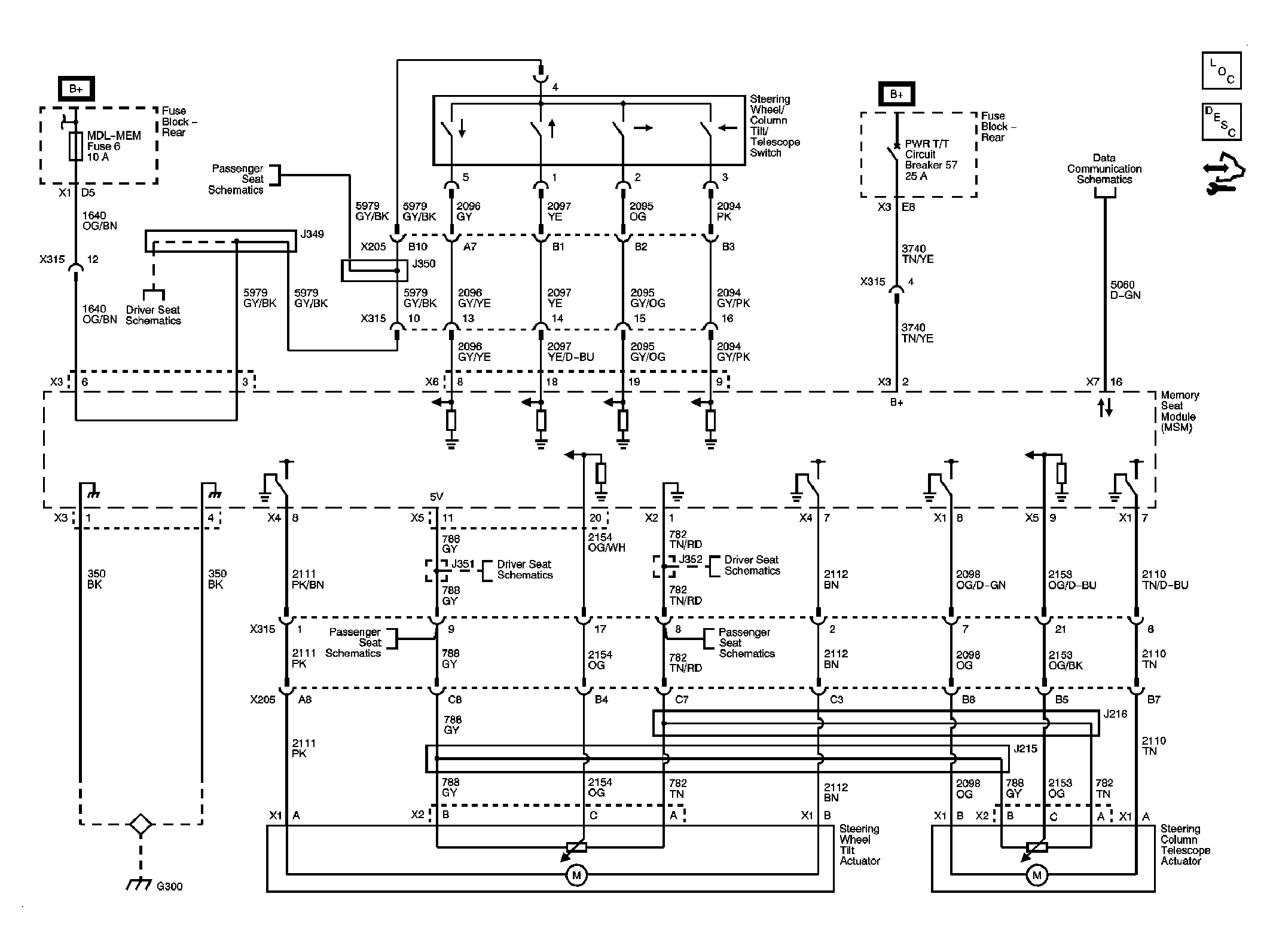

Fig 1: Tilt/Telescoping Steering Column Schematic
GM2082425Courtesy of GENERAL MOTORS CORP.
