Front Passenger Door Module, Power and Ground

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

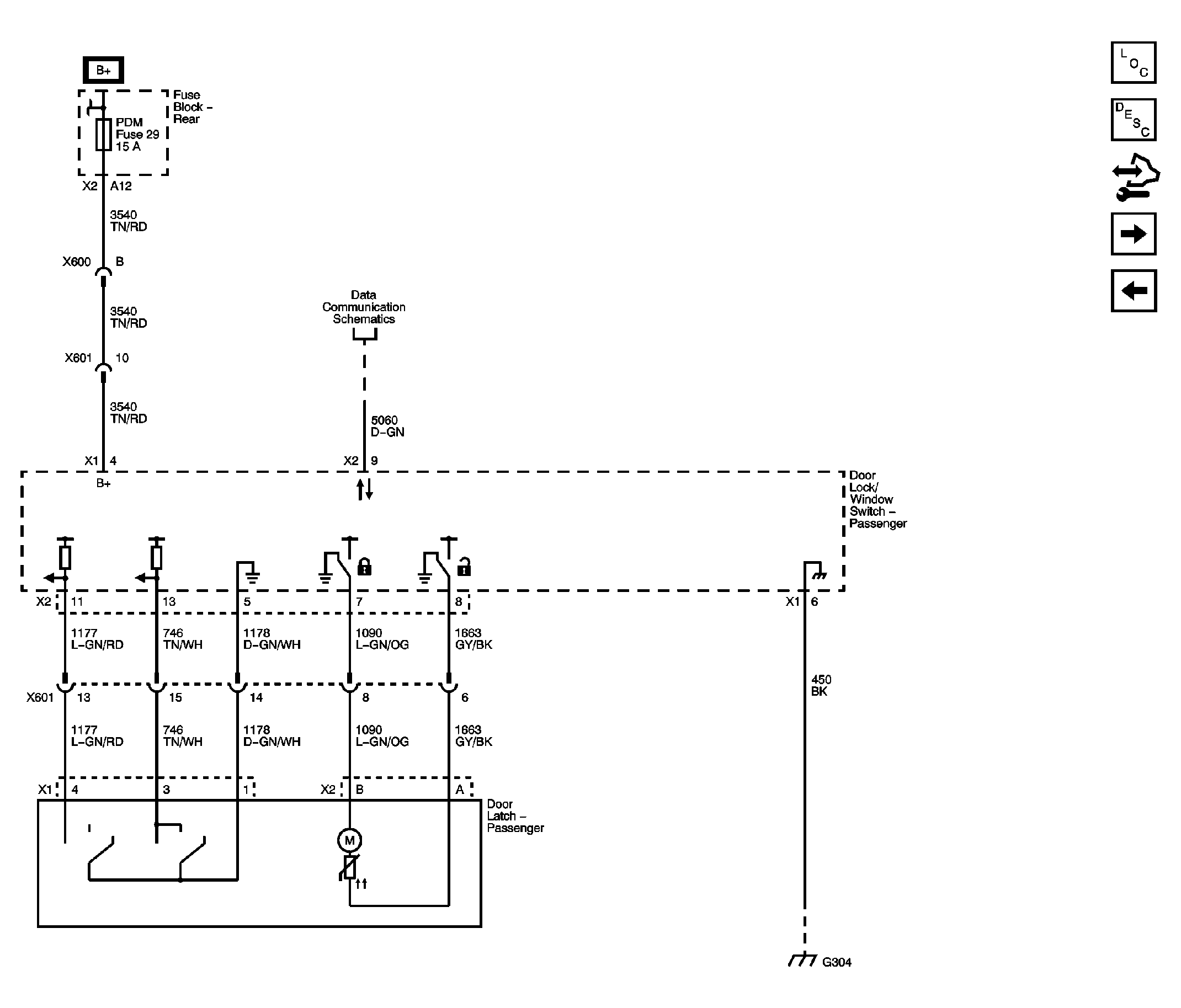

Fig 1: Front Passenger Door Module, Power and Ground Wiring Schematic
GM2398155Courtesy of GENERAL MOTORS COMPANY
