I/P and Seat Accent Lamps

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

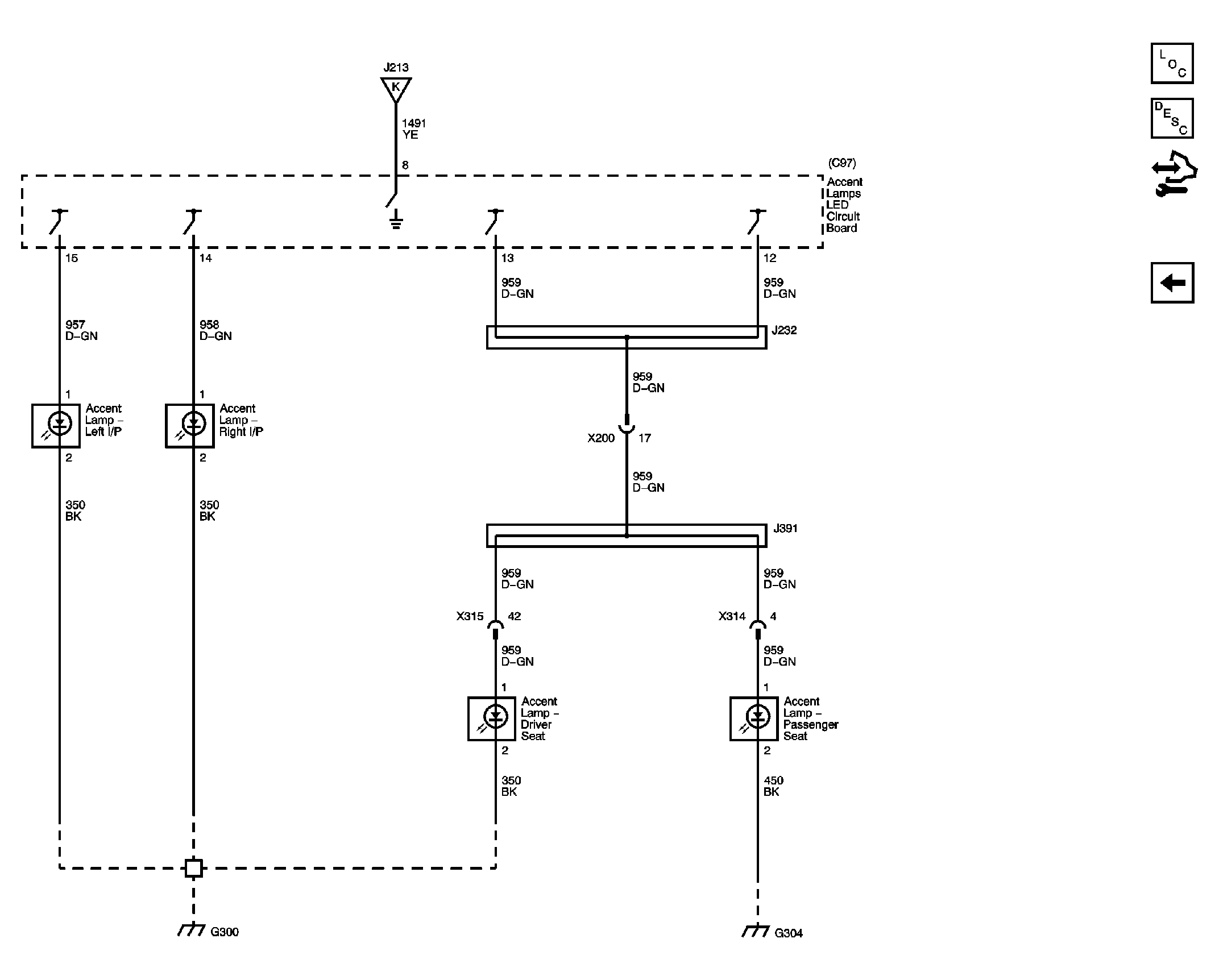

Fig 1: I/P and Seat Accent Lamps Wiring Schematic
GM2398015Courtesy of GENERAL MOTORS COMPANY
