Heated Seat, Rear Windows, and Seat Lumbar

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

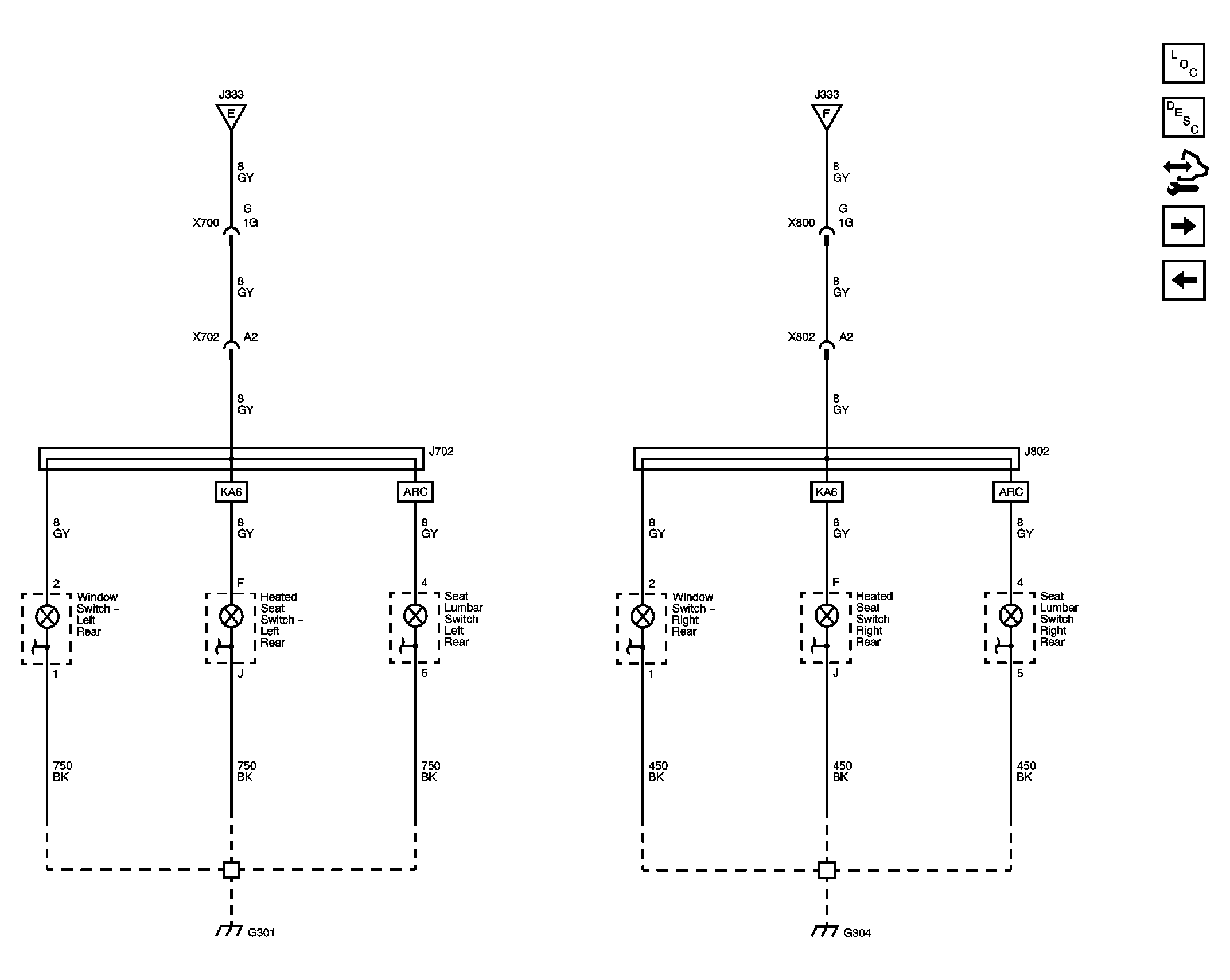

Fig 1: Heated Seat, Rear Windows & Seat Lumbar Wiring Schematic
GM2397916Courtesy of GENERAL MOTORS COMPANY
