Ashtray, Clock, Driver Information, Hazard, Headlamp, HVAC Control, and Radio
WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

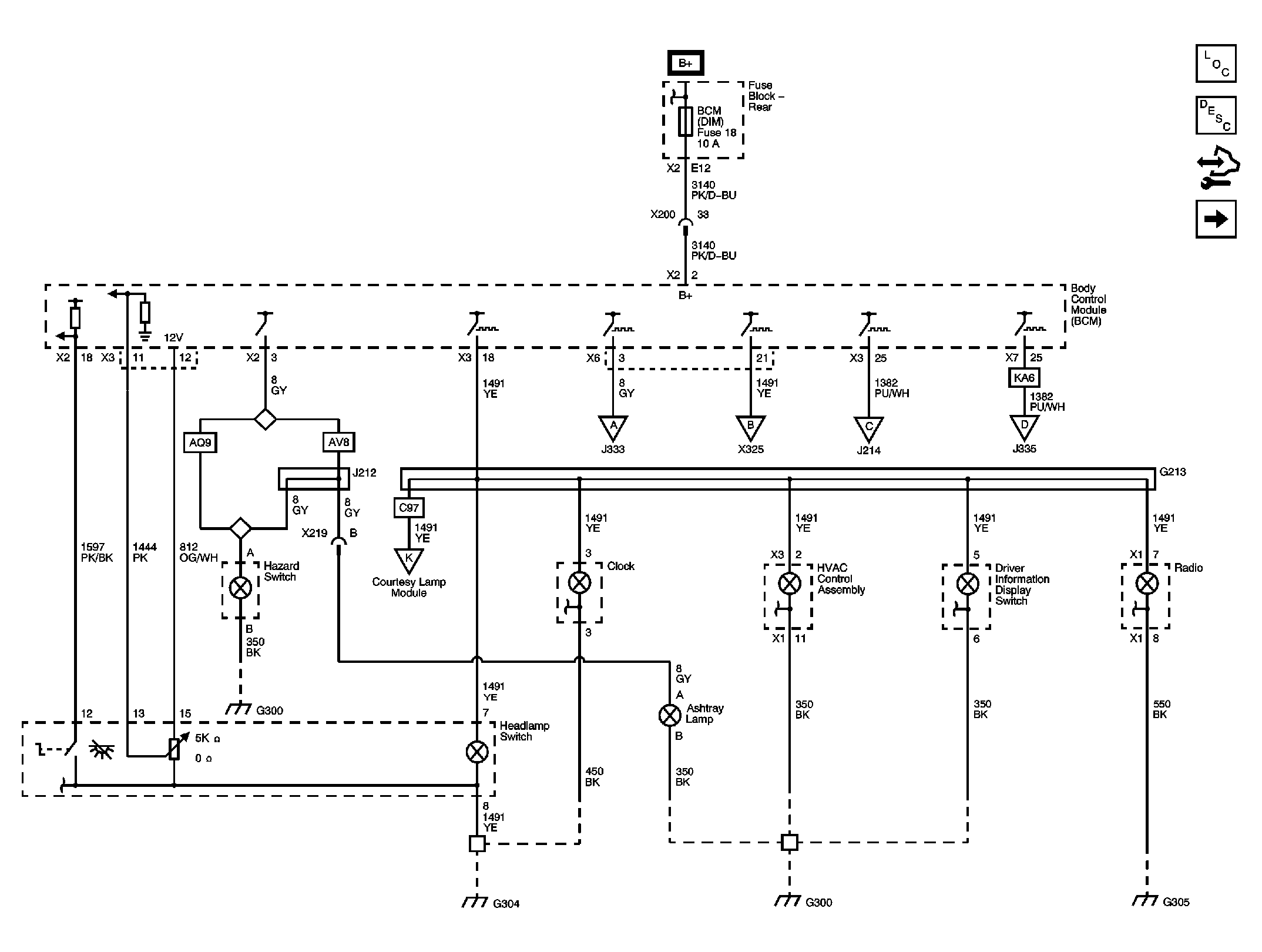

Fig 1: Ashtray, Clock, Driver Information, Hazard, Headlamp, HVAC Control & Radio Wiring Schematic
