Center High Mounted Stop Lamp

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

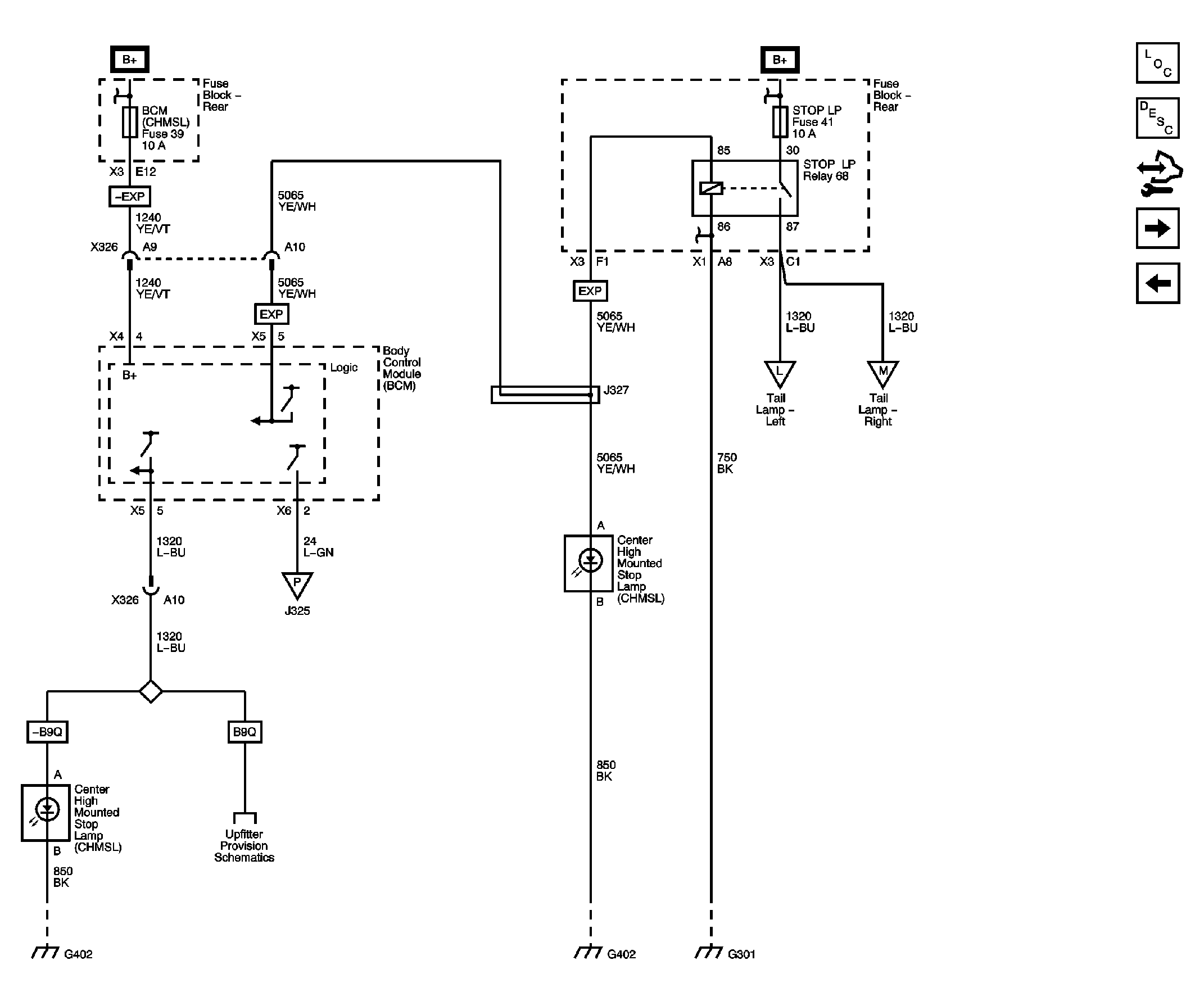

Fig 1: Center High Mounted Stop Lamp Wiring Schematic
GM2397822Courtesy of GENERAL MOTORS COMPANY
