Section 106 (HVAC System - Automatic)
>>
Wiring Schematics
>>
HVAC Wiring Schematics
>>
Power, Ground, Blower Motor Control
Power, Ground, Blower Motor Control
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

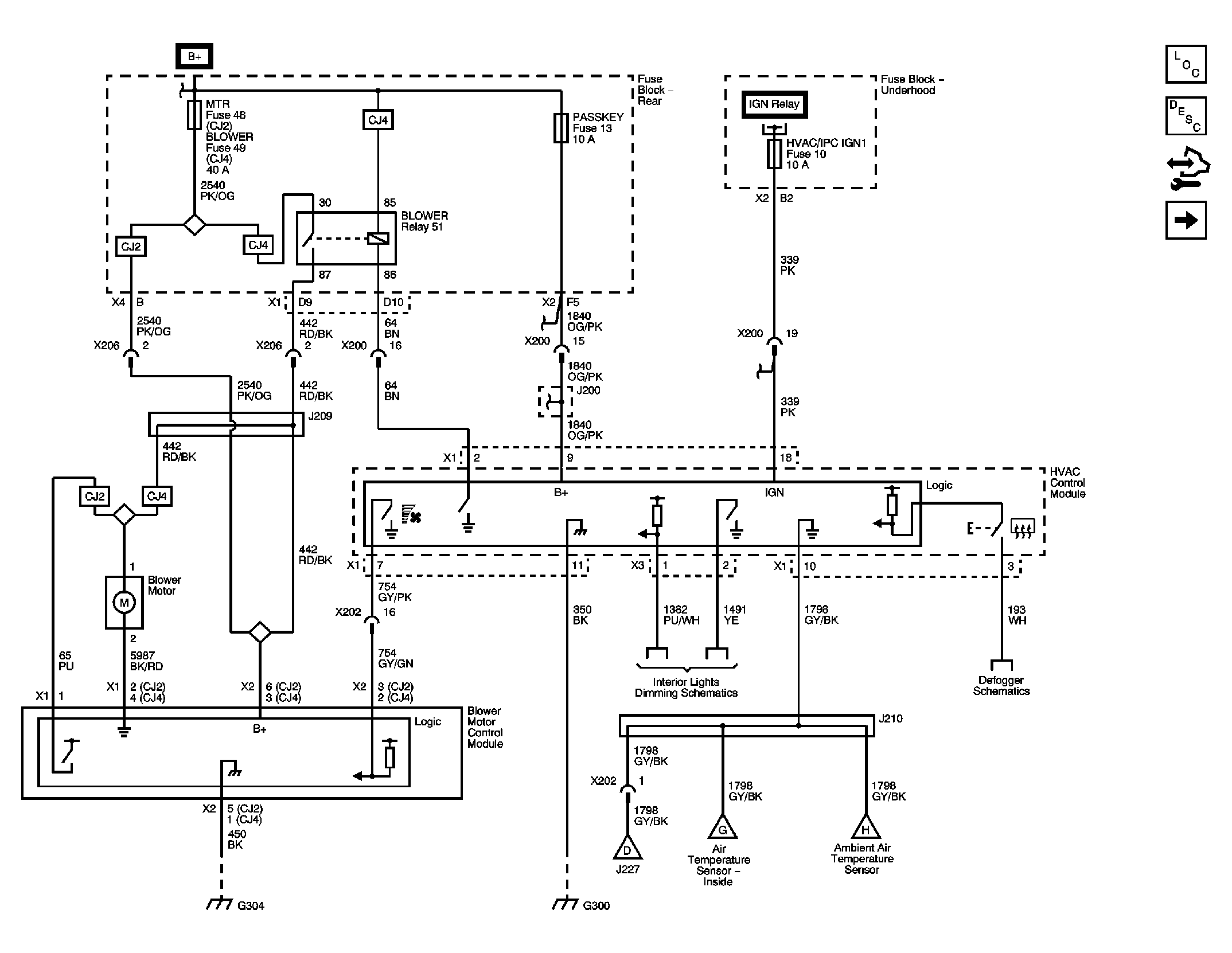

Fig 1: Power, Ground, Blower Motor Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
