Mode and Air Temperature Controls

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

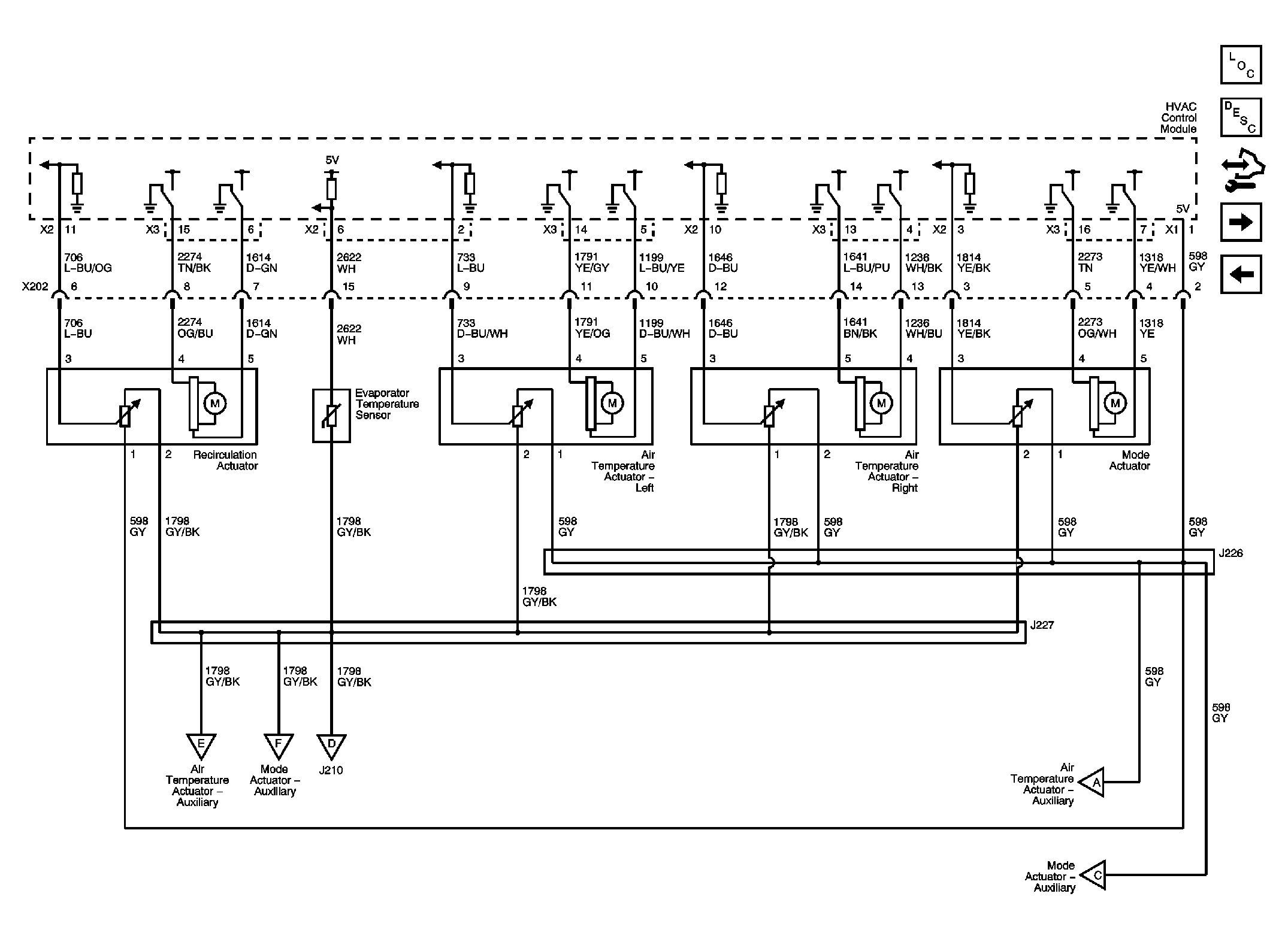

Fig 1: Mode and Air Temperature Controls Wiring Schematic
GM2398508Courtesy of GENERAL MOTORS COMPANY
