Section 100 (Mirror System)
>>
Wiring Schematics
>>
Outside Rearview Mirror Wiring Schematics
>>
Driver Outside Rearview Mirror
Driver Outside Rearview Mirror
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

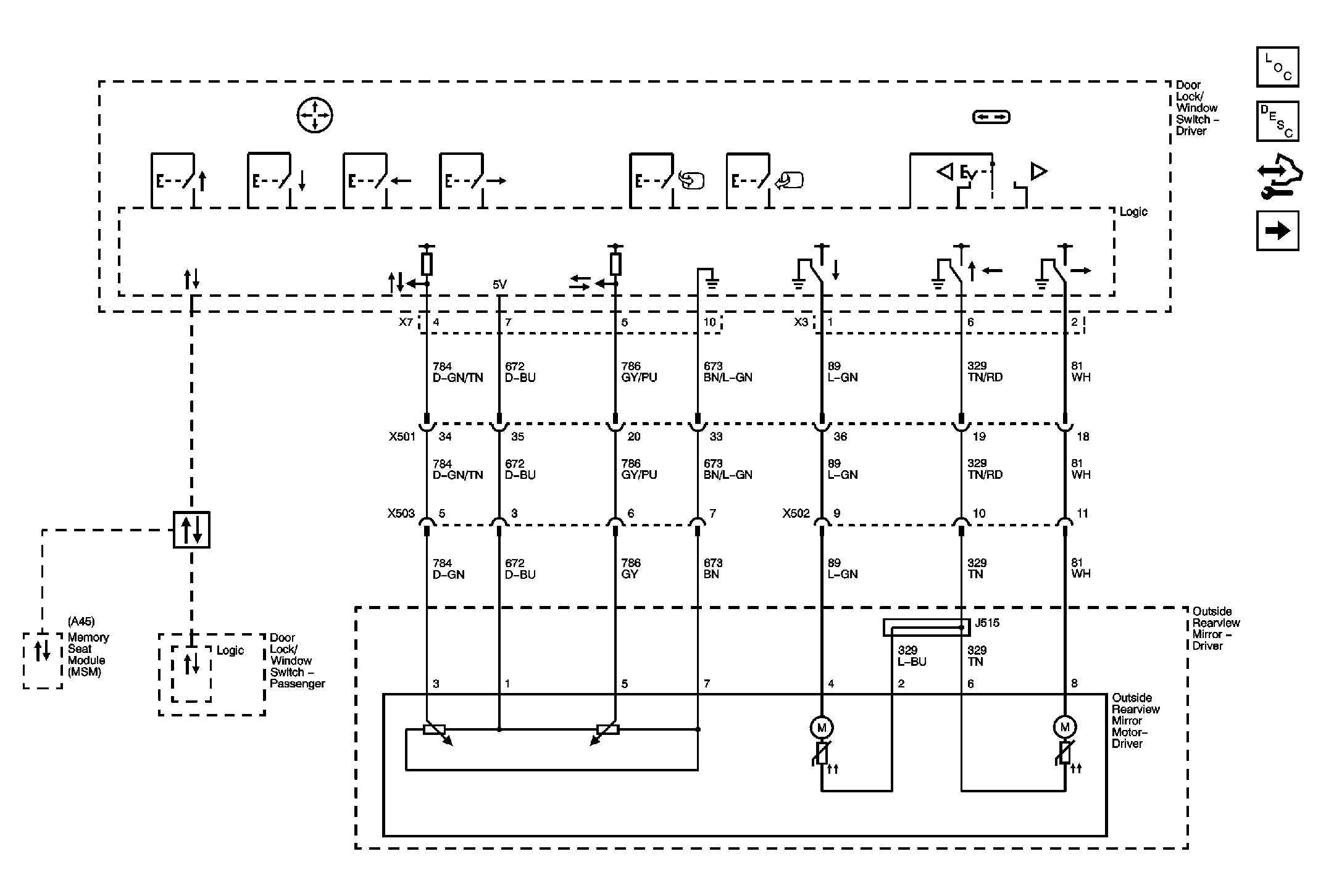

Fig 1: Driver Outside Rearview Mirror Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
