Audible Warnings Schematics
Audible Warnings Schematics

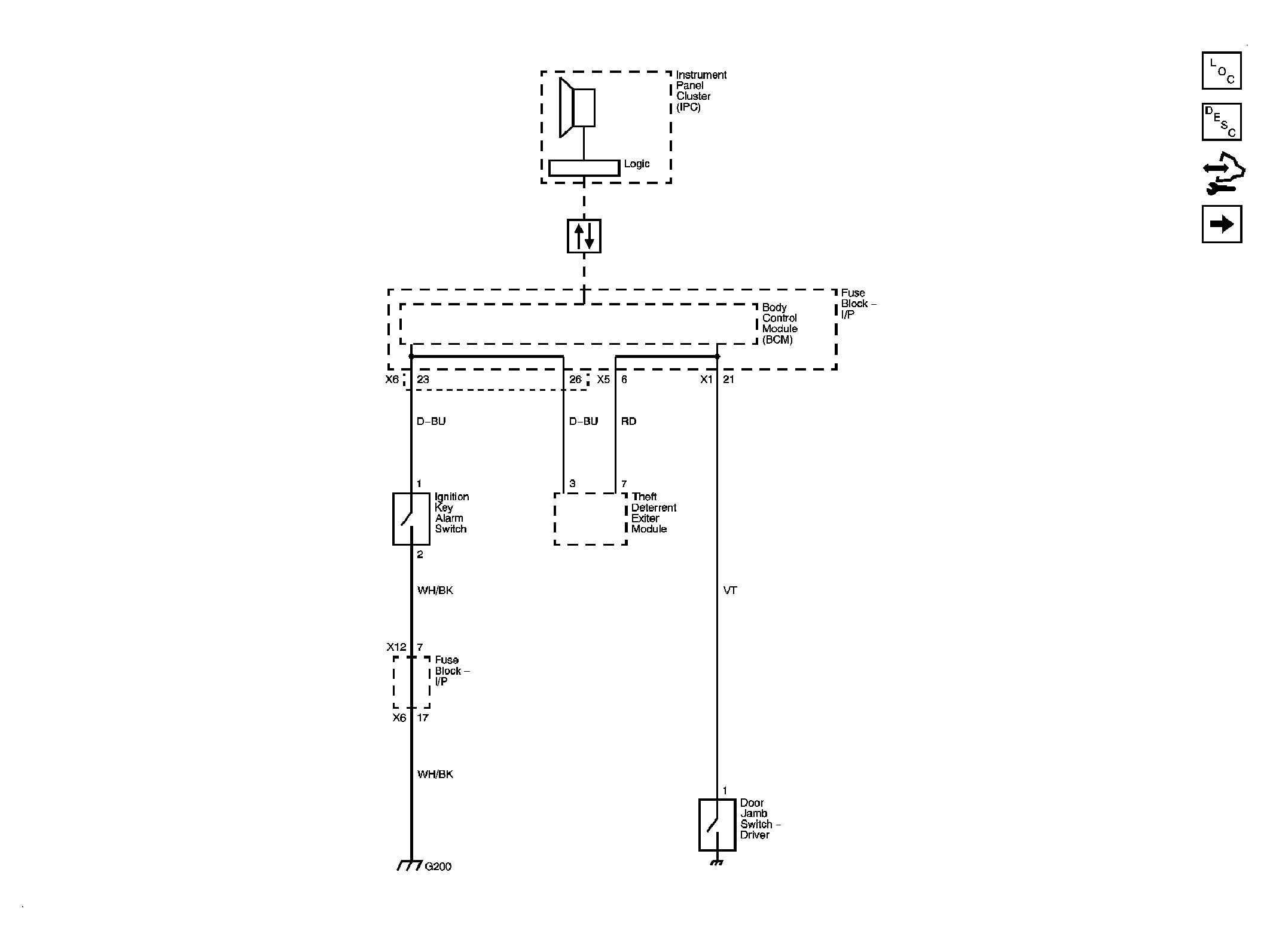

Fig 1: Ignition Key Alarm Switch, Door Ajar Switch
Courtesy of GENERAL MOTORS CORP.

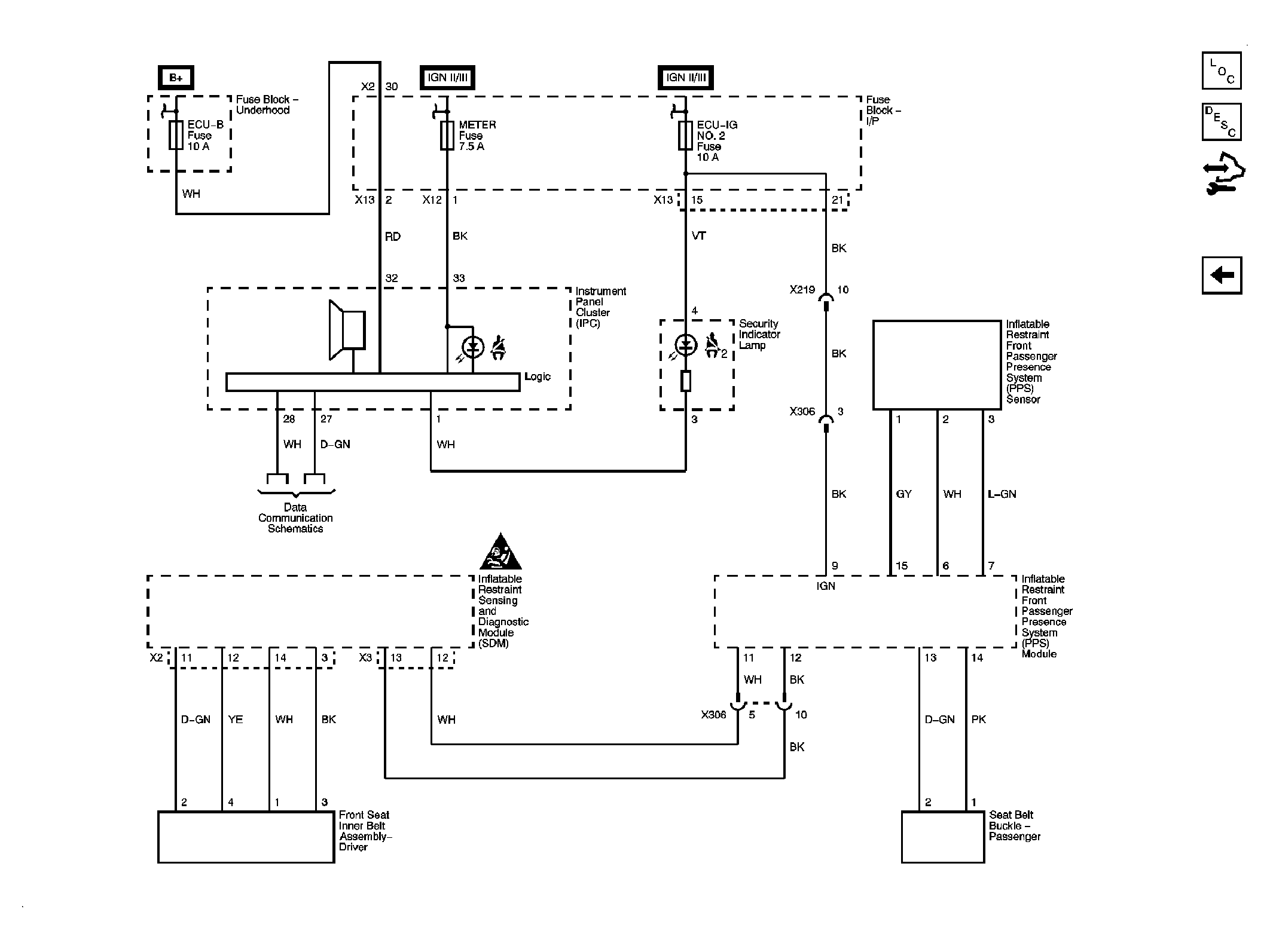

Fig 2: Seat Belt Warning Indicator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
