Wheels/Vehicle Underbody Component Views

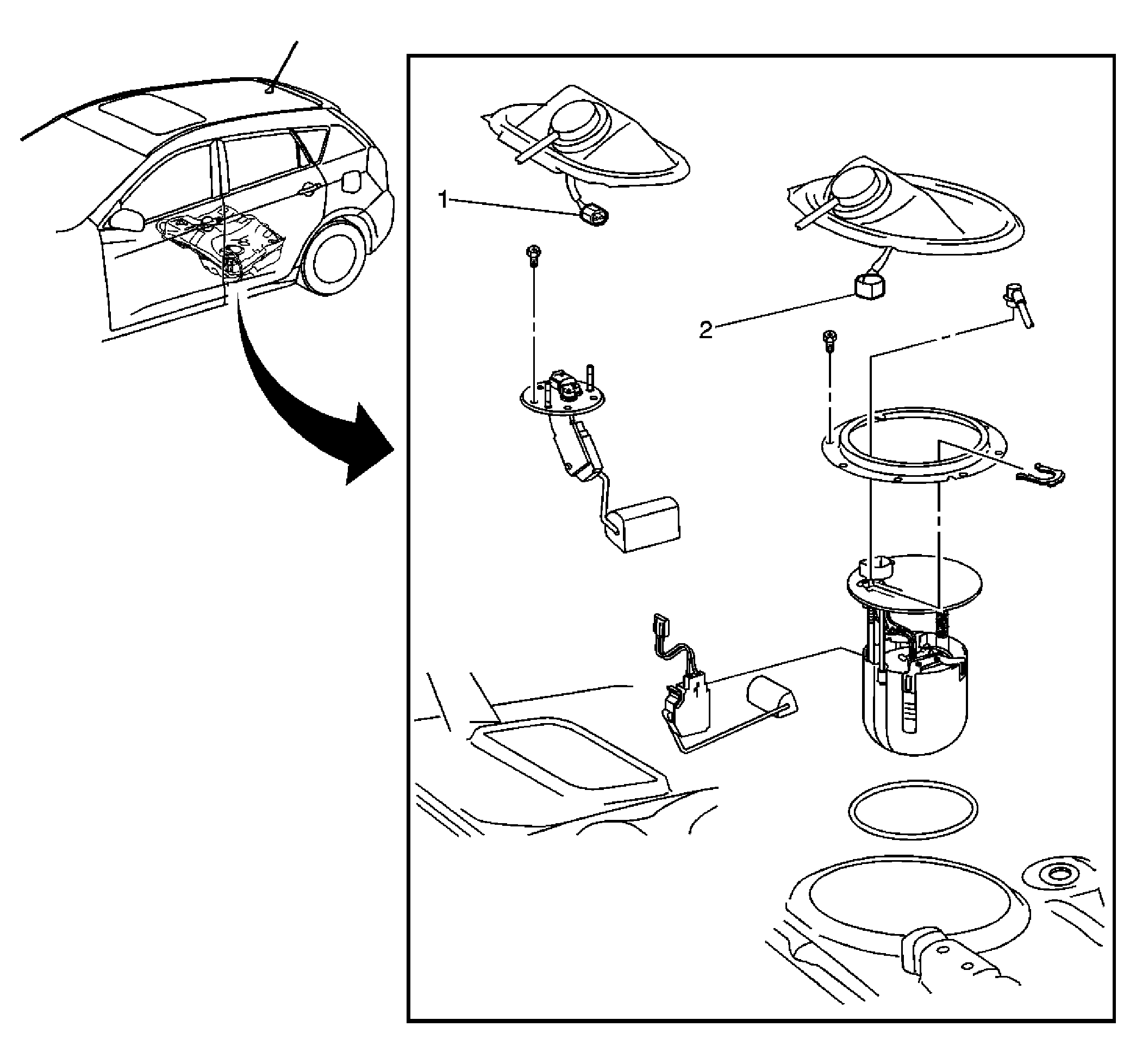

Fig 1: Identifying Fuel Tank Components AWD LAX

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly - Secondary (AWD)
2	Fuel Pump and Sender Assembly

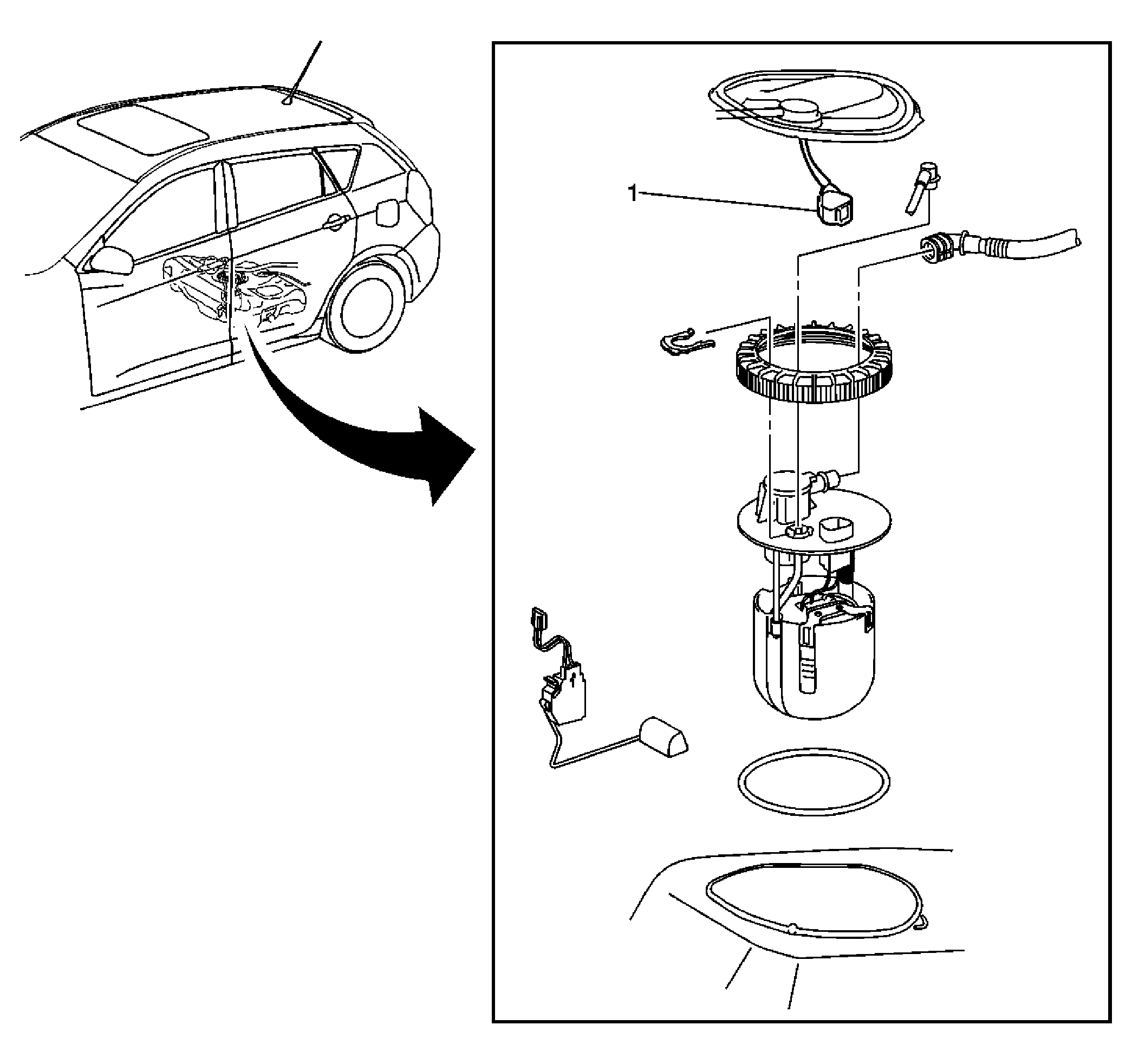

Fig 2: Identifying Fuel Tank Components FWD LAX/LAY

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly

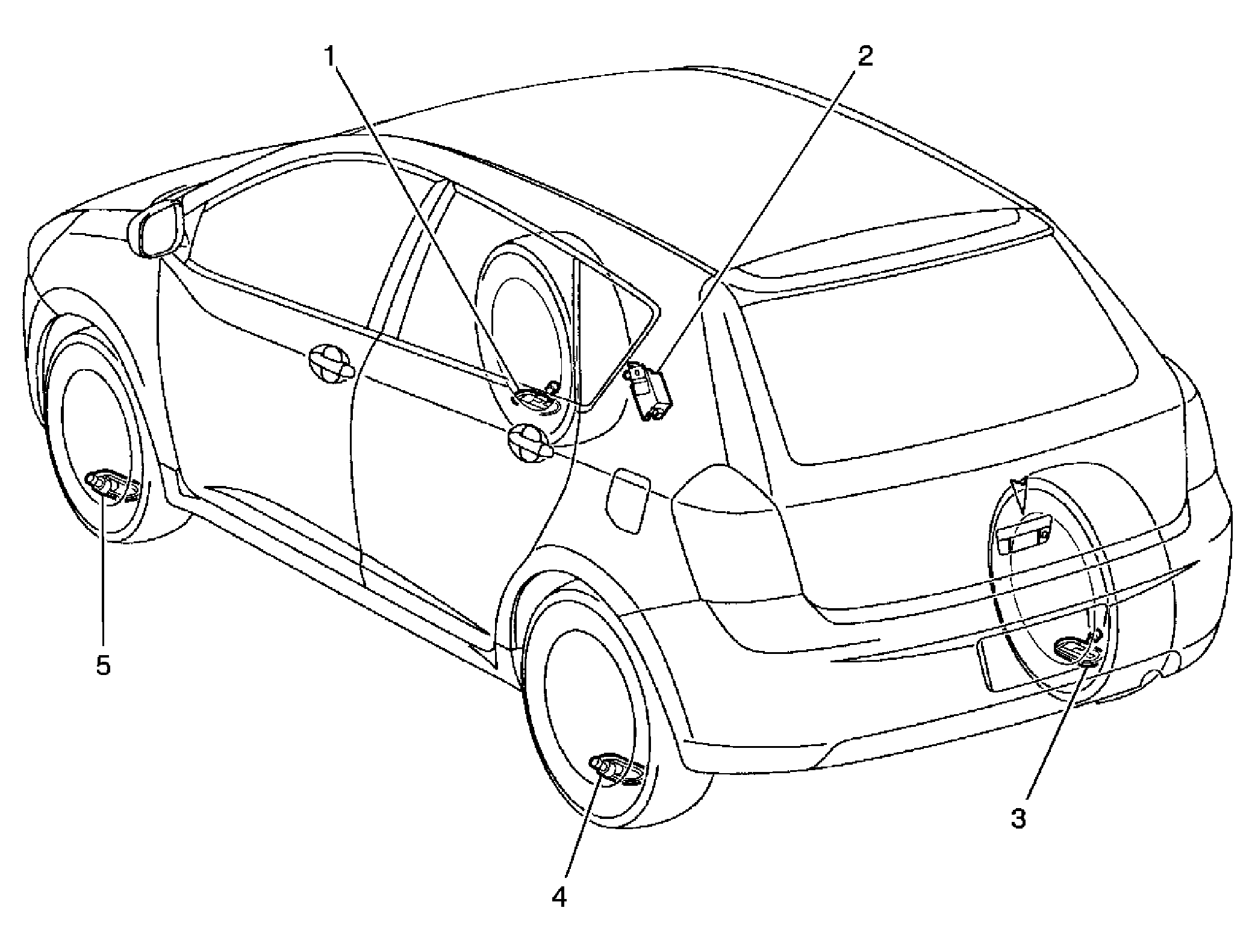

Fig 3: Identifying Tire Pressure Monitoring System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tire Pressure Sensor - Right Front
2	Tire Pressure Receiver - Left Rear
3	Tire Pressure Sensor - Right Rear
4	Tire Pressure Sensor - Left Rear
5	Tire Pressure Sensor - Left Front

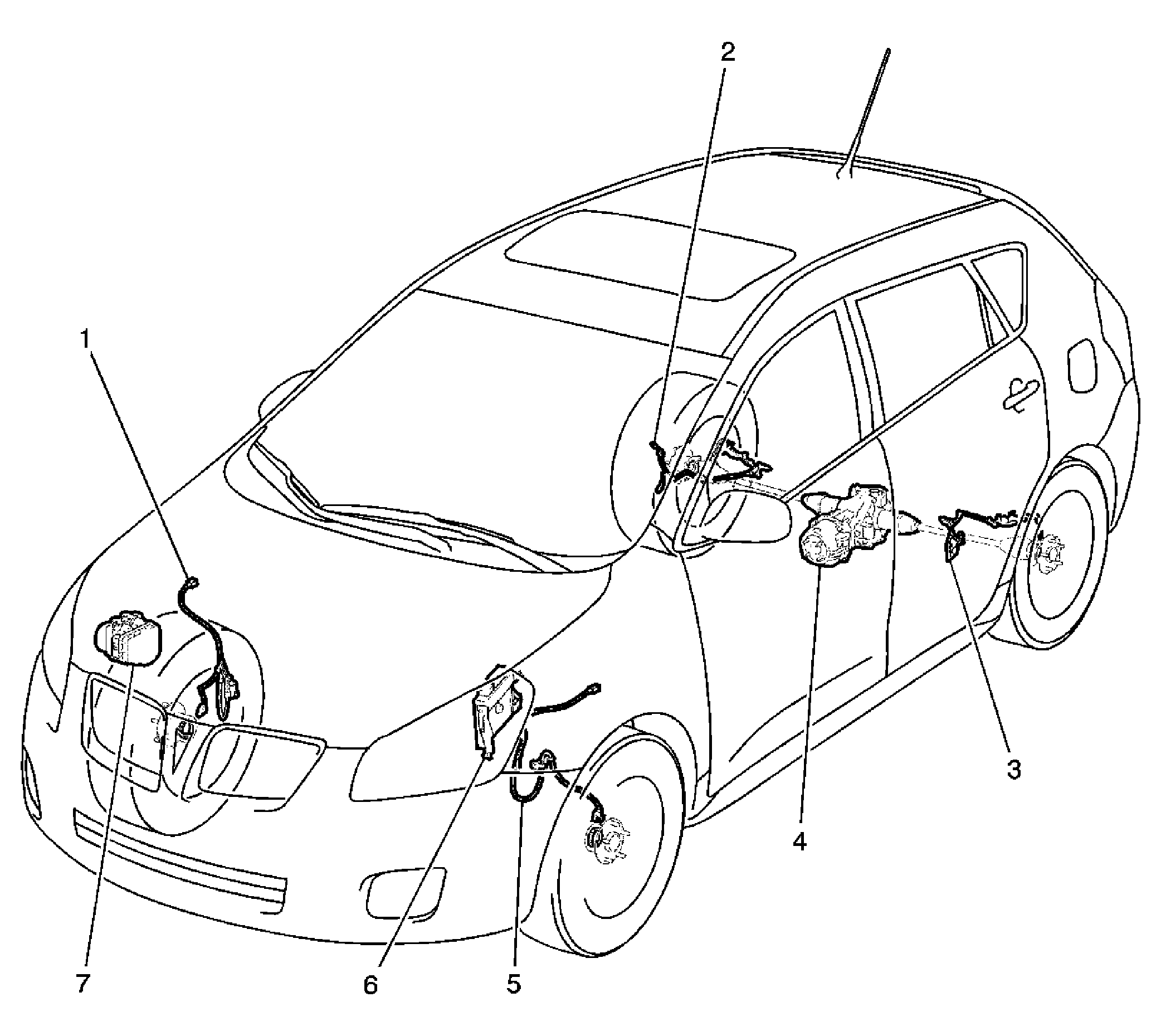

Fig 4: Identifying Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Right Front
2	Wheel Speed Sensor (WSS) - Right Rear
3	Wheel Speed Sensor (WSS) - Left Rear
4	Electromagnetic Control Coupling
5	Wheel Speed Sensor (WSS) - Left Front
6	Powertrain Control Module (PCM)
7	Brake Pressure Modulator Valve (BPMV)
