Luggage Compartment/Rear of Vehicle Component Views

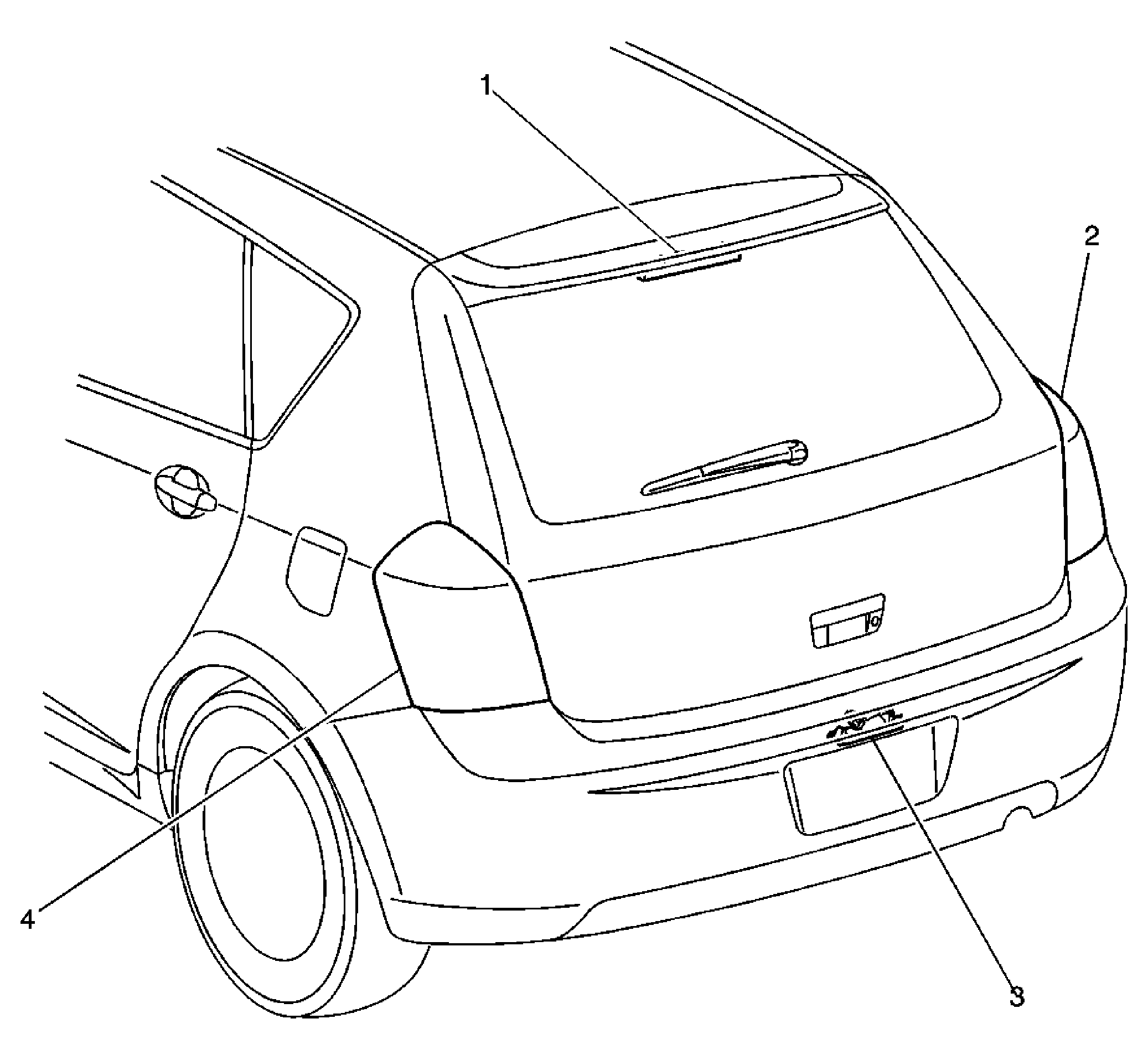

Fig 1: Identifying Rear Exterior Light Components
GM2025434Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL)
2 Tail/Stop/Turn/Backup Lamp Assembly - Right
3 License Plate Lamp
4 Tail/Stop/Turn/Backup Lamp Assembly - Left
