Door Component Views

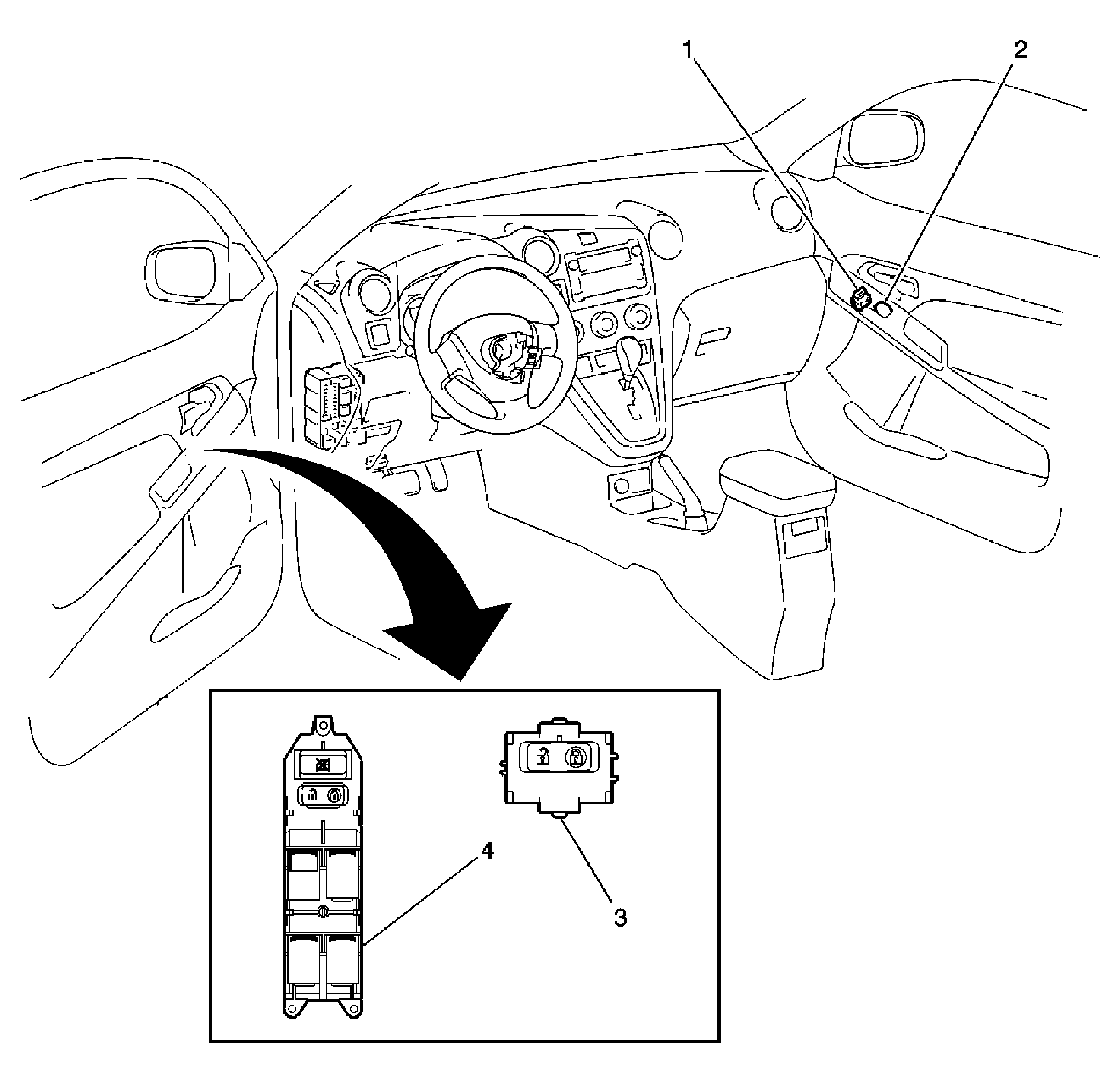

Fig 1: View Of Power Door Lock Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger
2	Window Switch - Passenger
3	Door Lock Switch - Passenger (-A31)
4	Door Lock/Window Switch - Driver (A31)

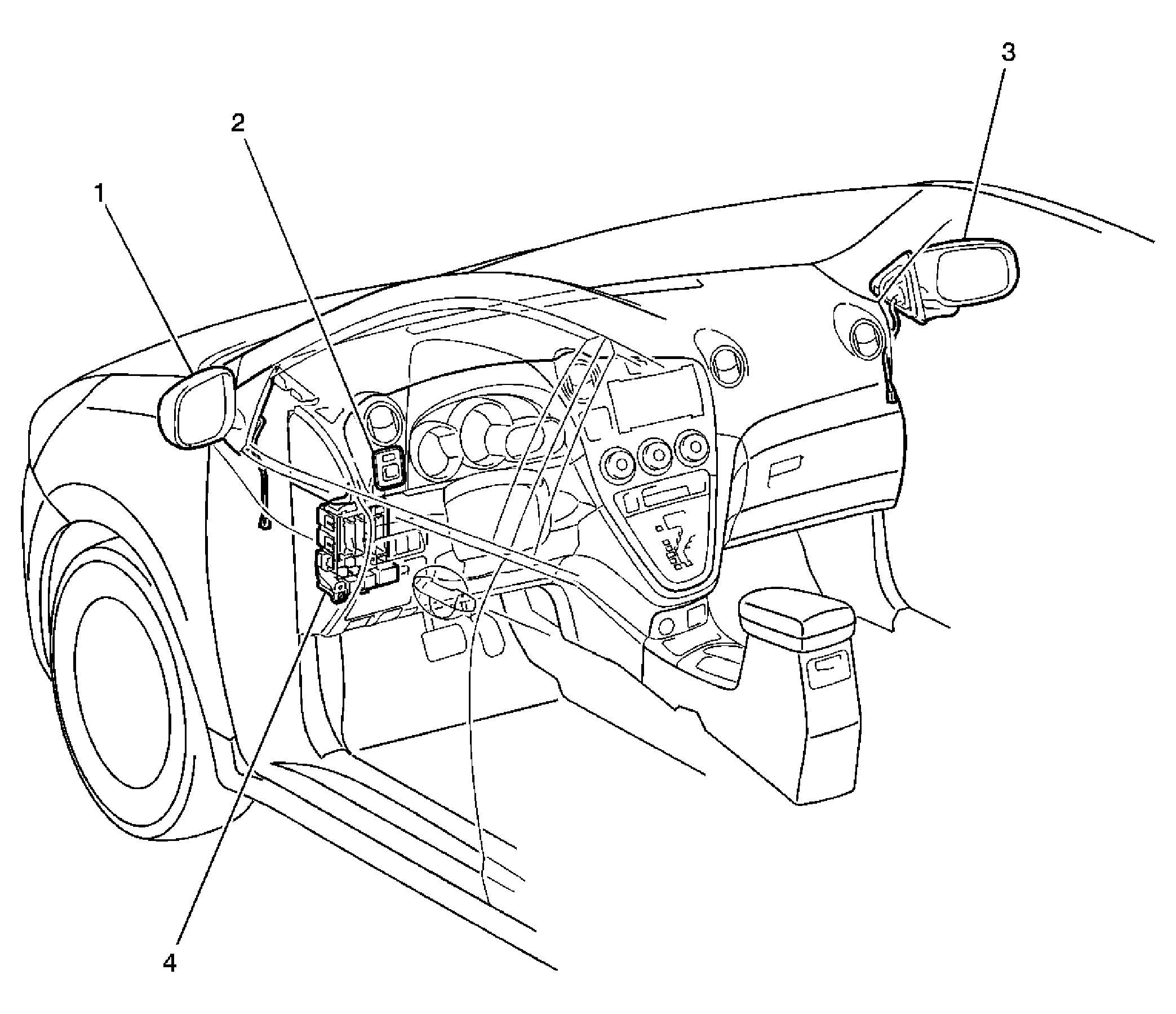

Fig 2: Identifying Power Mirror Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror (OSRVM) - Driver
2	Outside Rearview Mirror (OSRVM) - Switch
3	Outside Rearview Mirror (OSRVM) - Passenger
4	Fuse Block - I/P

Fig 3: Identifying Power Window Control Components

Courtesy of GENERAL MOTORS CORP.

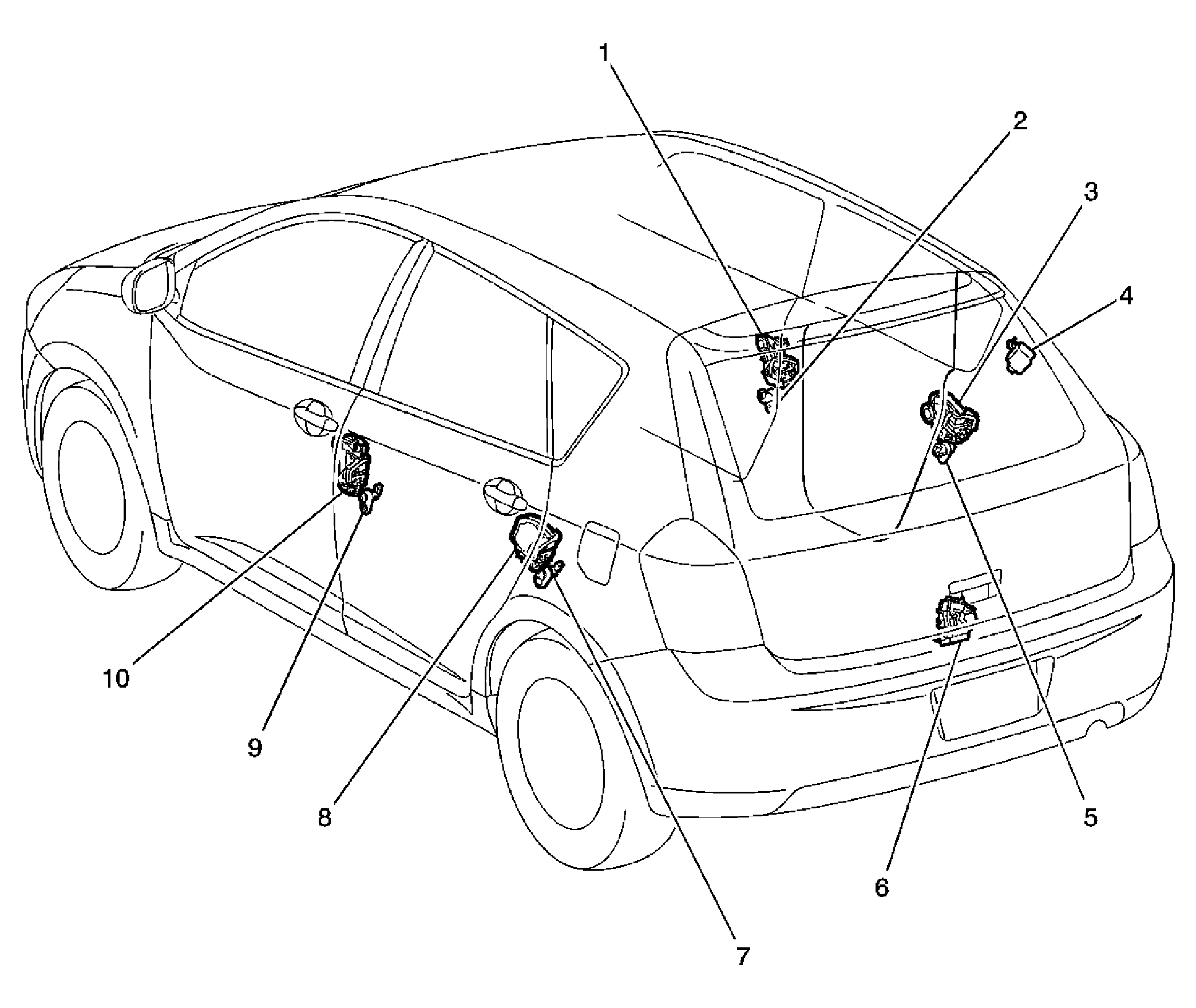

Fig 4: Identifying Wireless Door Lock Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Passenger
2	Door Lamb Switch - Passenger
3	Door Lock Actuator - Right Rear
4	Remote Control Door Lock Receiver
5	Door Lamb Switch - Right Rear
6	Liftgate Latch Assembly
7	Door Lamb Switch - Left Rear
8	Door Lock Actuator - Left Rear
9	Door Lamb Switch - Driver
10	Door Lock Actuator - Driver
