Antilock Brake System Schematics

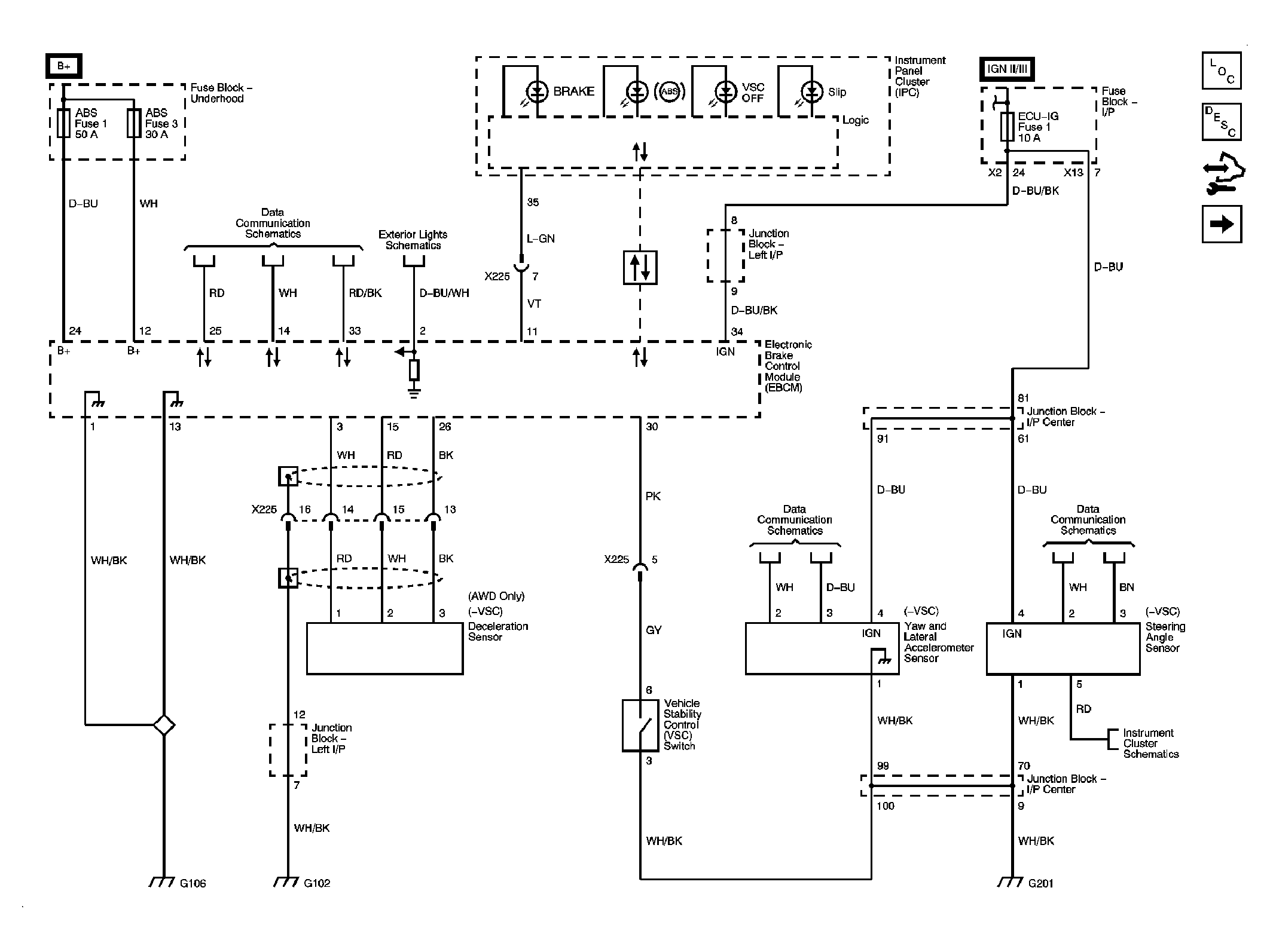

Fig 1: Power, Ground, Indicator/Warning Lamps, Electronic Stability Sensors and Switches
GM2032974Courtesy of GENERAL MOTORS CORP.

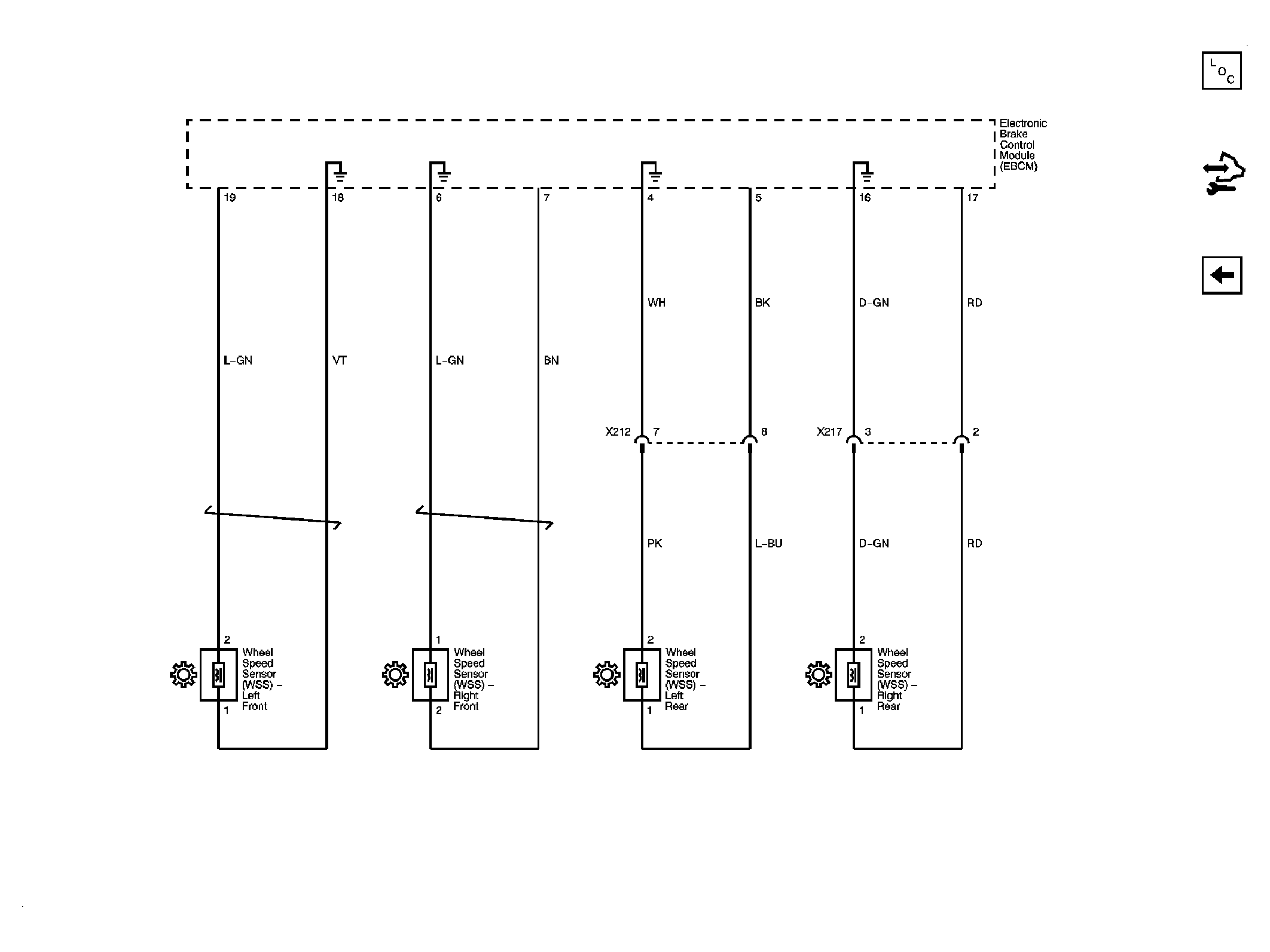

Fig 2: Wheel Speed Sensors
GM2032987Courtesy of GENERAL MOTORS CORP.
