Installation Procedure

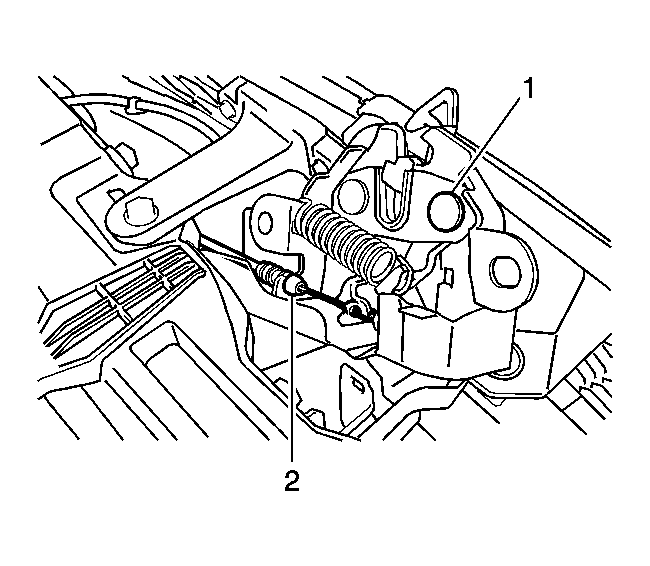

    Fig 1: Identifying Hood Latch Release Cable & Hood Latch
    GM2014618Courtesy of GENERAL MOTORS CORP.
  1. Install the hood latch release cable (2) to the hood latch (1).

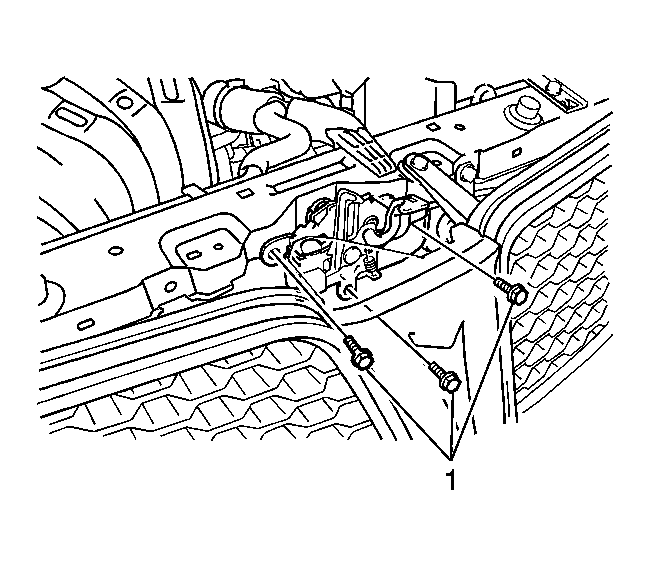

    2. Fig 2: View Of Hood Latch, Plastic Retainer & Bolts
    GM2014611Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch to the vehicle. Secure the latch with the 3 bolts (3) and one plastic retainer but do not tighten fully.
    3. NOTE: Refer to Fastener Caution .
  3. Make the following adjustments to the hood latch:
    • The striker shaft lines up with the center groove of the latch.
    • The hood is flush with the front fender. Refer to Hood Adjustment .

      Tighten:  Tighten the hood latch bolts to 7.5 N.m (66 lb in).

  4. Lower the hood.
