Theft Deterrent System Schematics

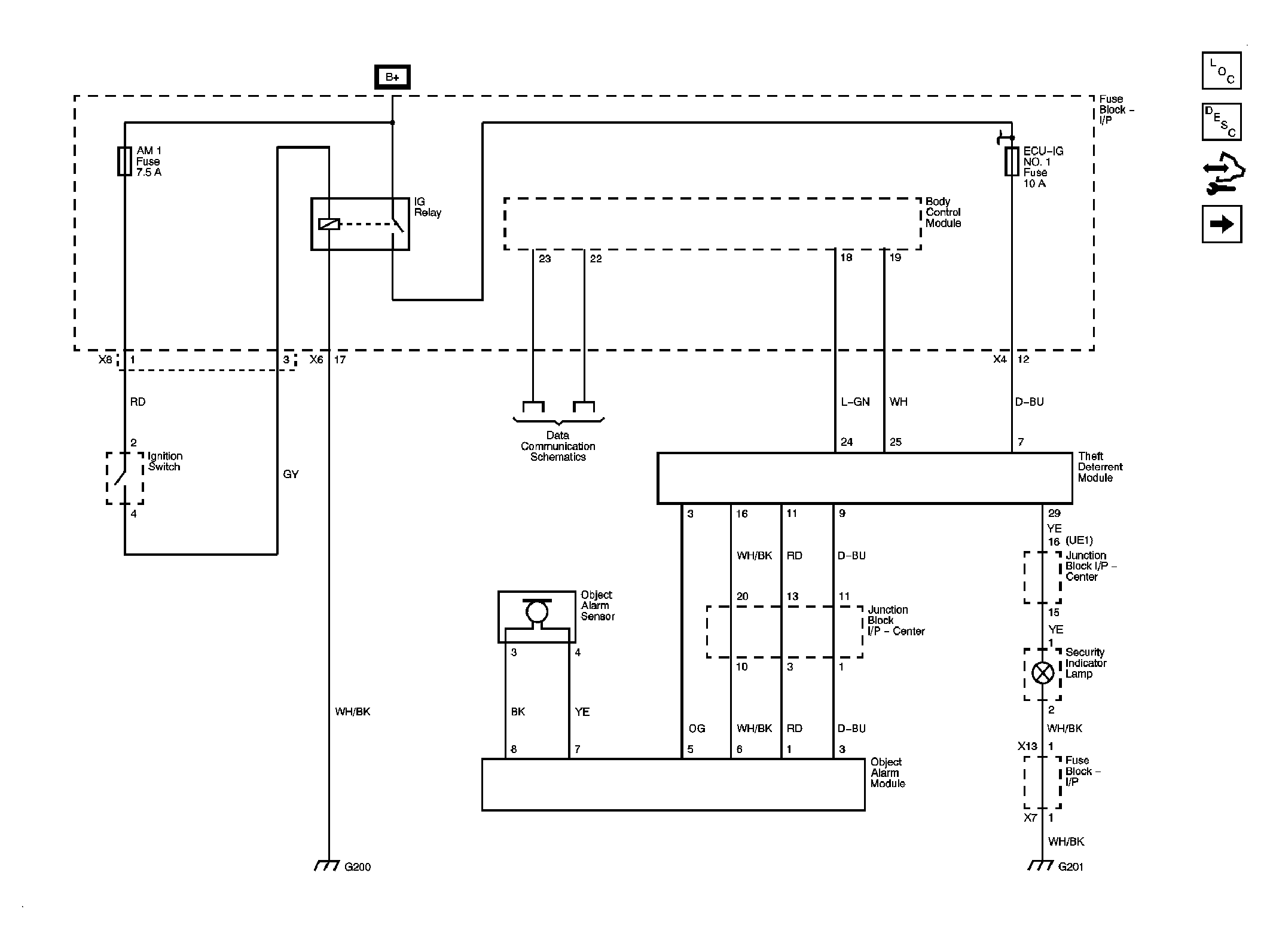

Fig 1: Theft Deterrent Module, Object Alarm Module, Object Alarm Sensor

Courtesy of GENERAL MOTORS CORP.

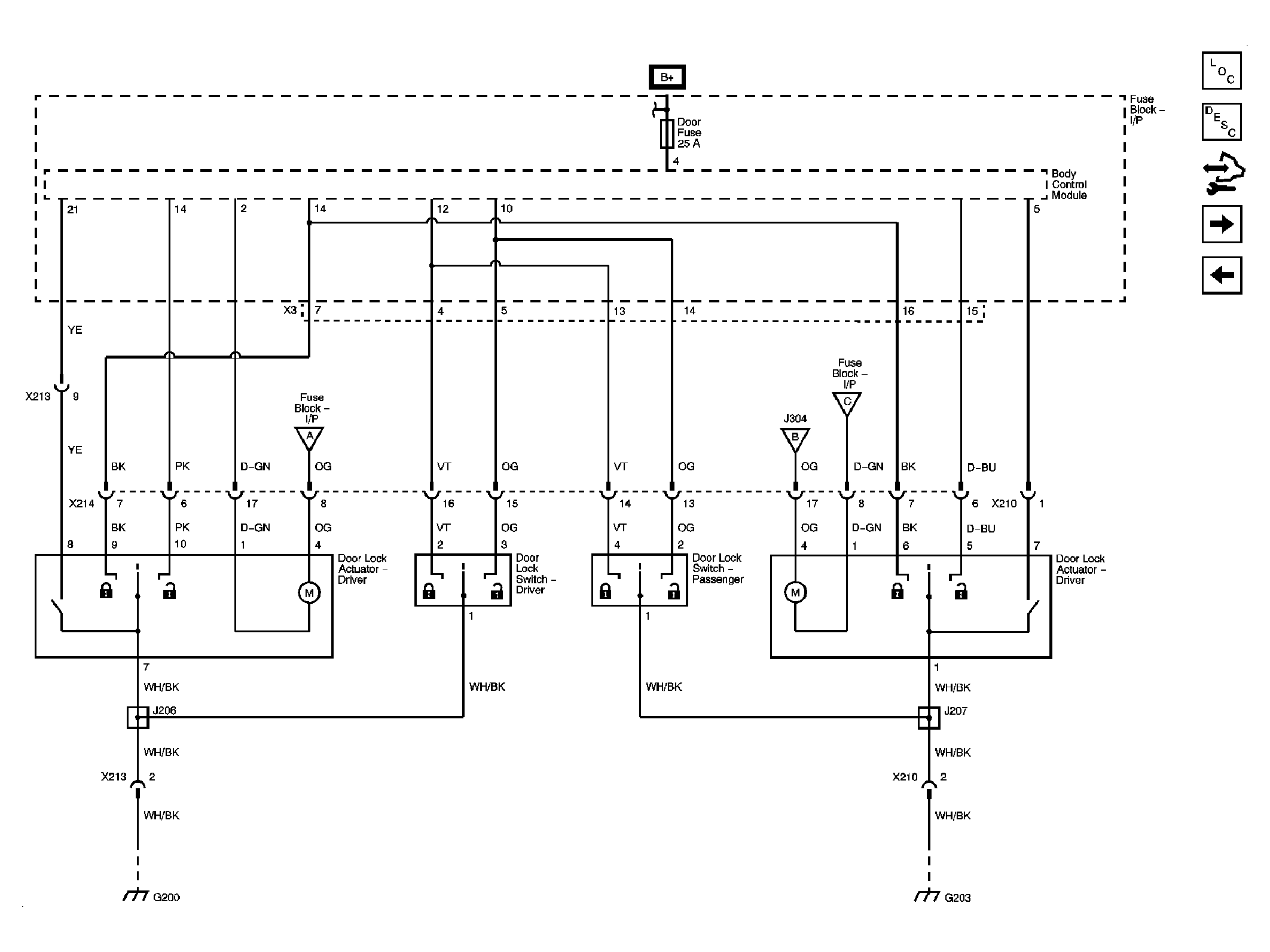

Fig 2: Door Lock Actuators, Door Lock Switches

Courtesy of GENERAL MOTORS CORP.

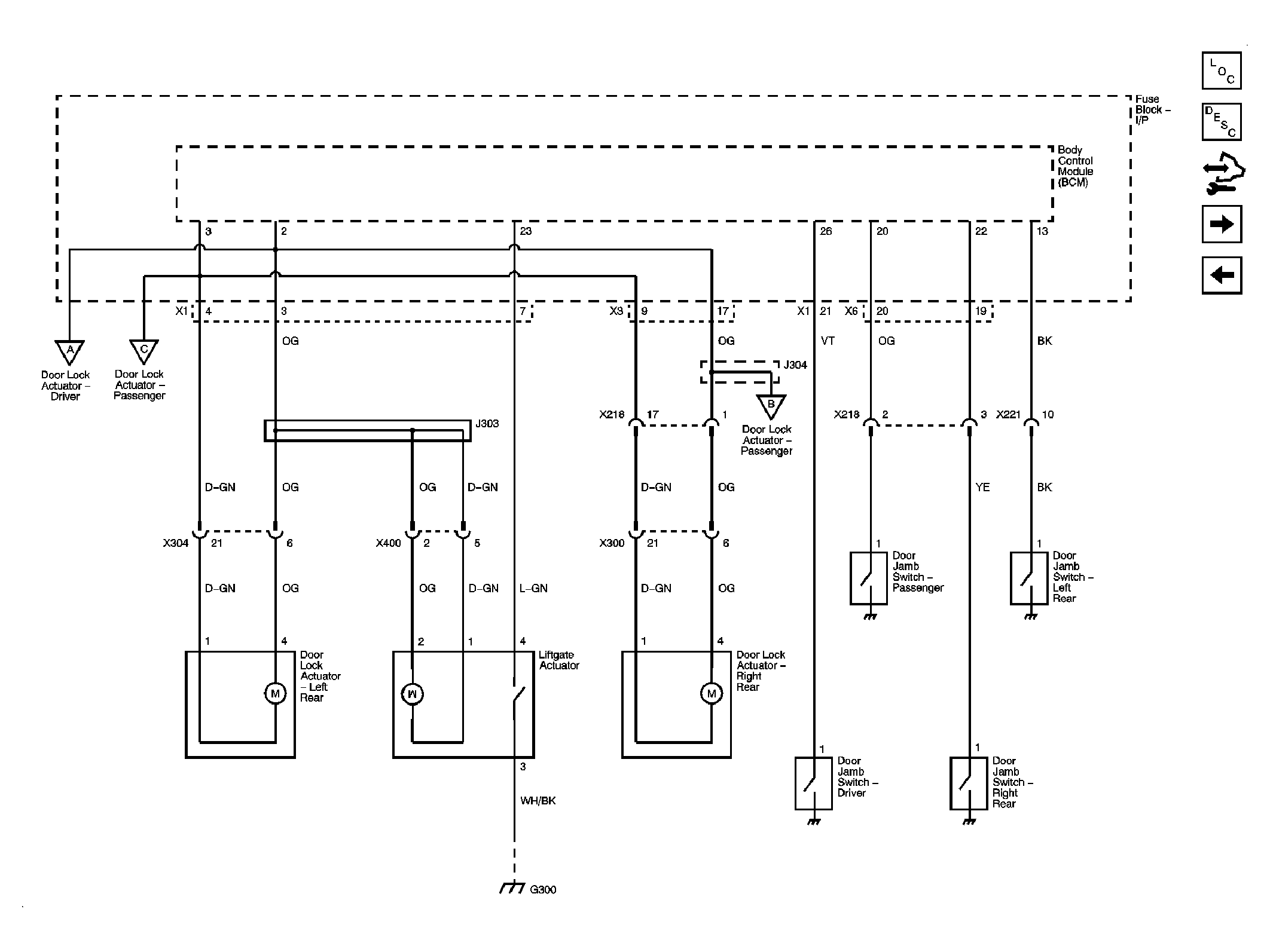

Fig 3: Door Lock Actuators, Door Jamb Switches, Liftgate Actuator

Courtesy of GENERAL MOTORS CORP.

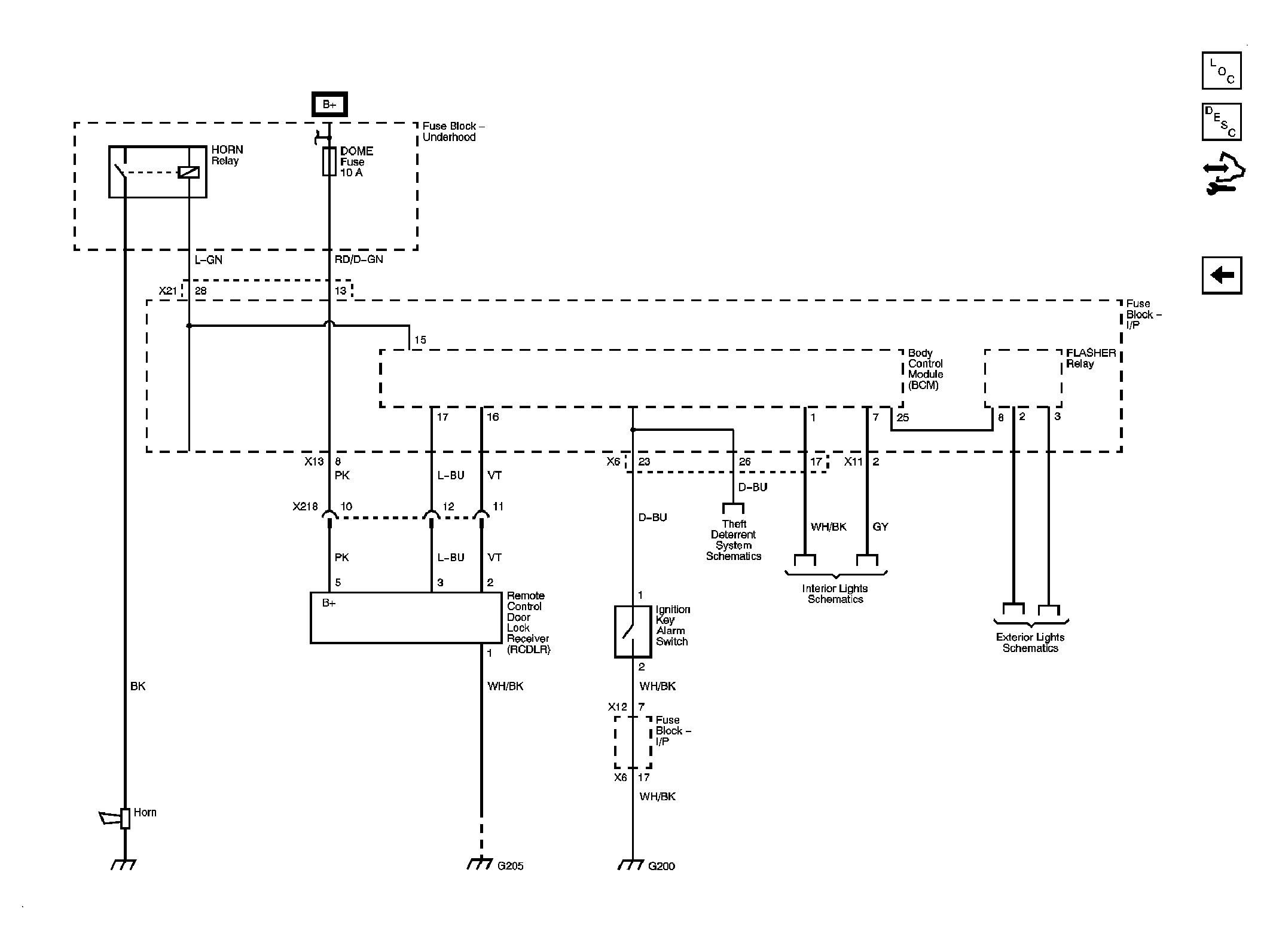

Fig 4: Remote Control Door Lock Receiver, Ignition Key Alarm Switch, Flasher Relay

Courtesy of GENERAL MOTORS CORP.
