Radio/Navigation System Schematics

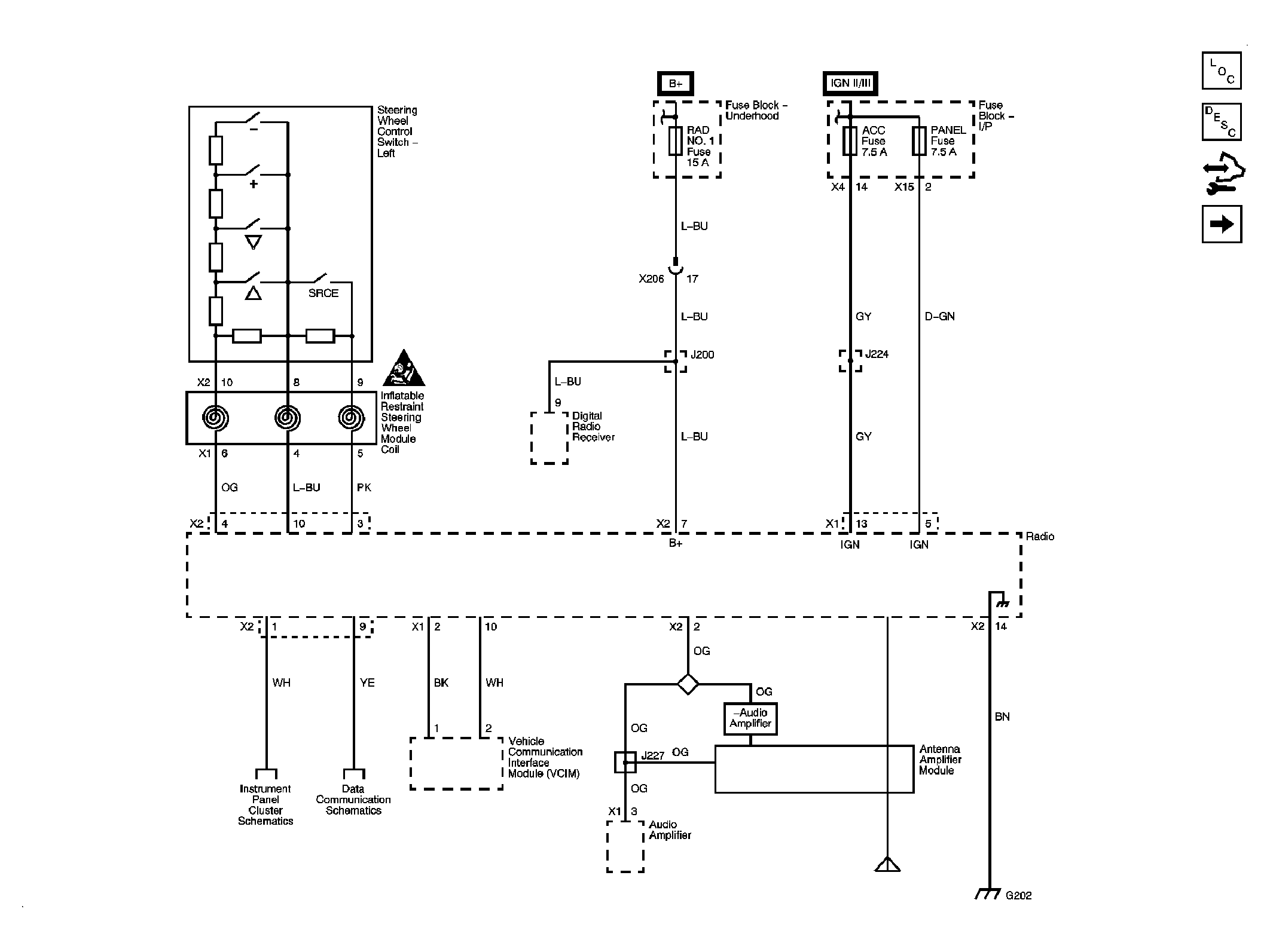

Fig 1: Power, Ground, Steering Wheel Controls, Antenna Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

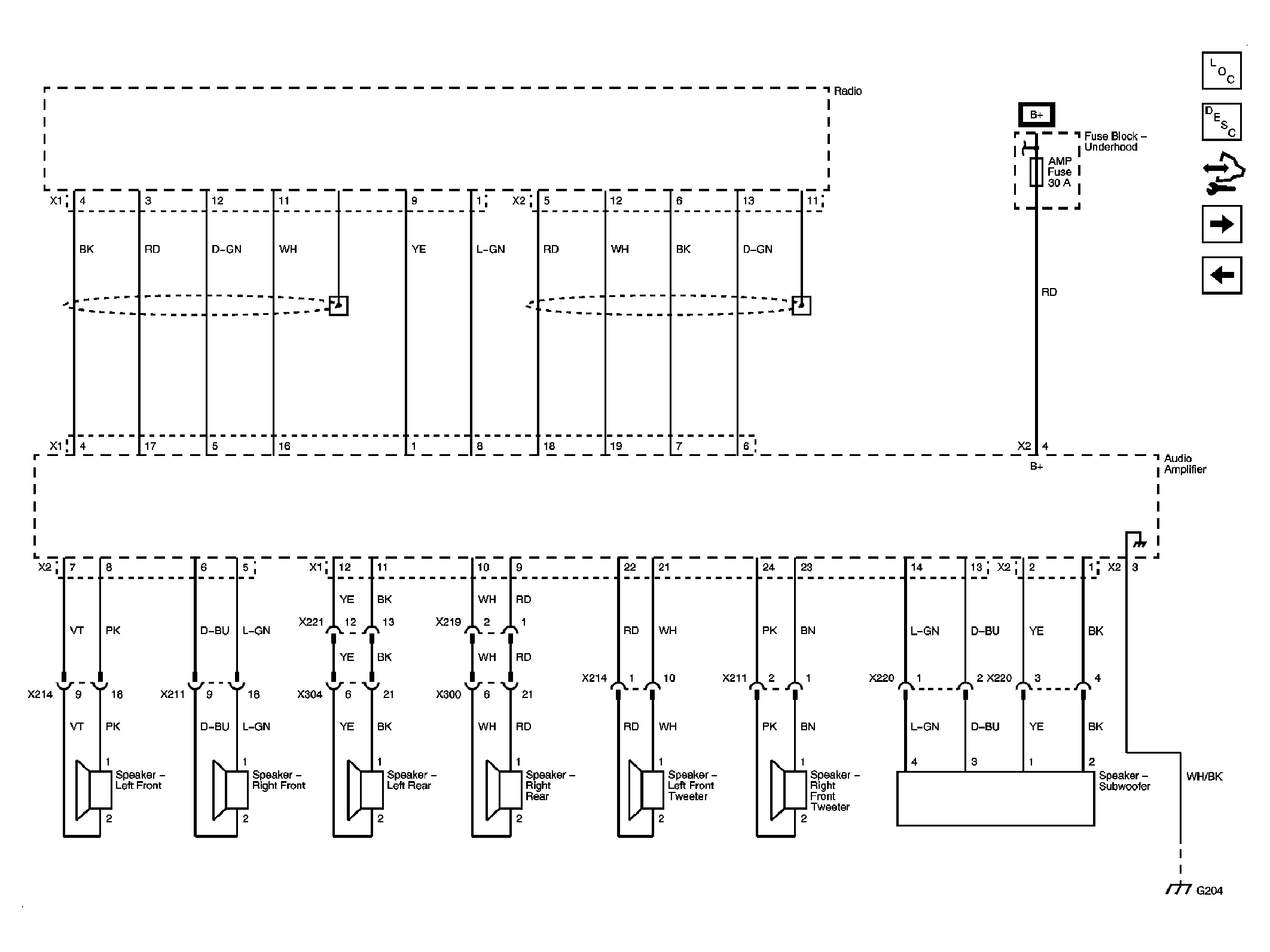

Fig 2: Speakers (U65) W/Audio Amplifier Circuit Schematic Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

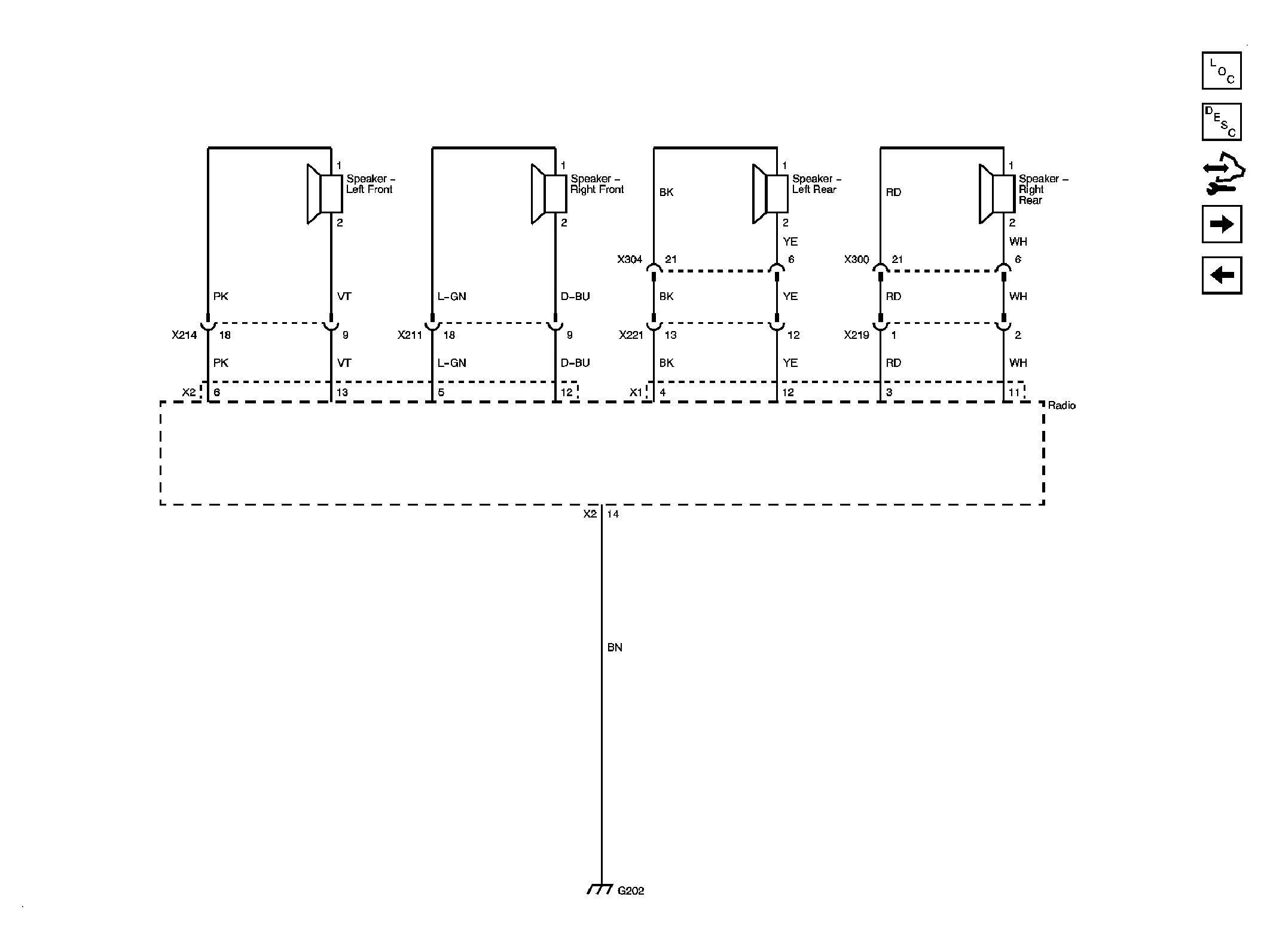

Fig 3: Speakers Circuit Schematic (UW4)

Courtesy of GENERAL MOTORS CORP.

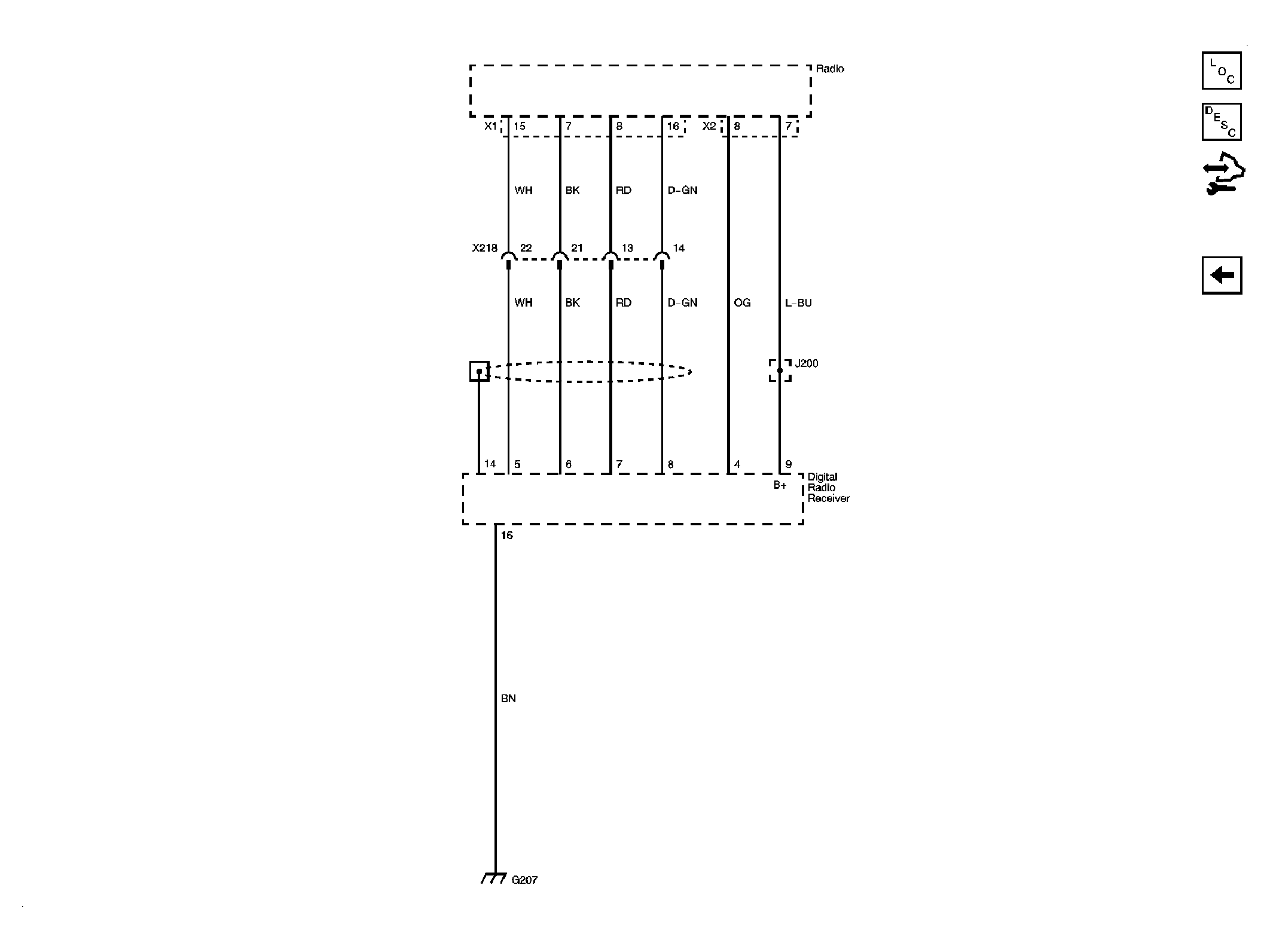

Fig 4: Digital Radio Receiver Circuit Schematic (U2K)

Courtesy of GENERAL MOTORS CORP.
