OnStar Schematics

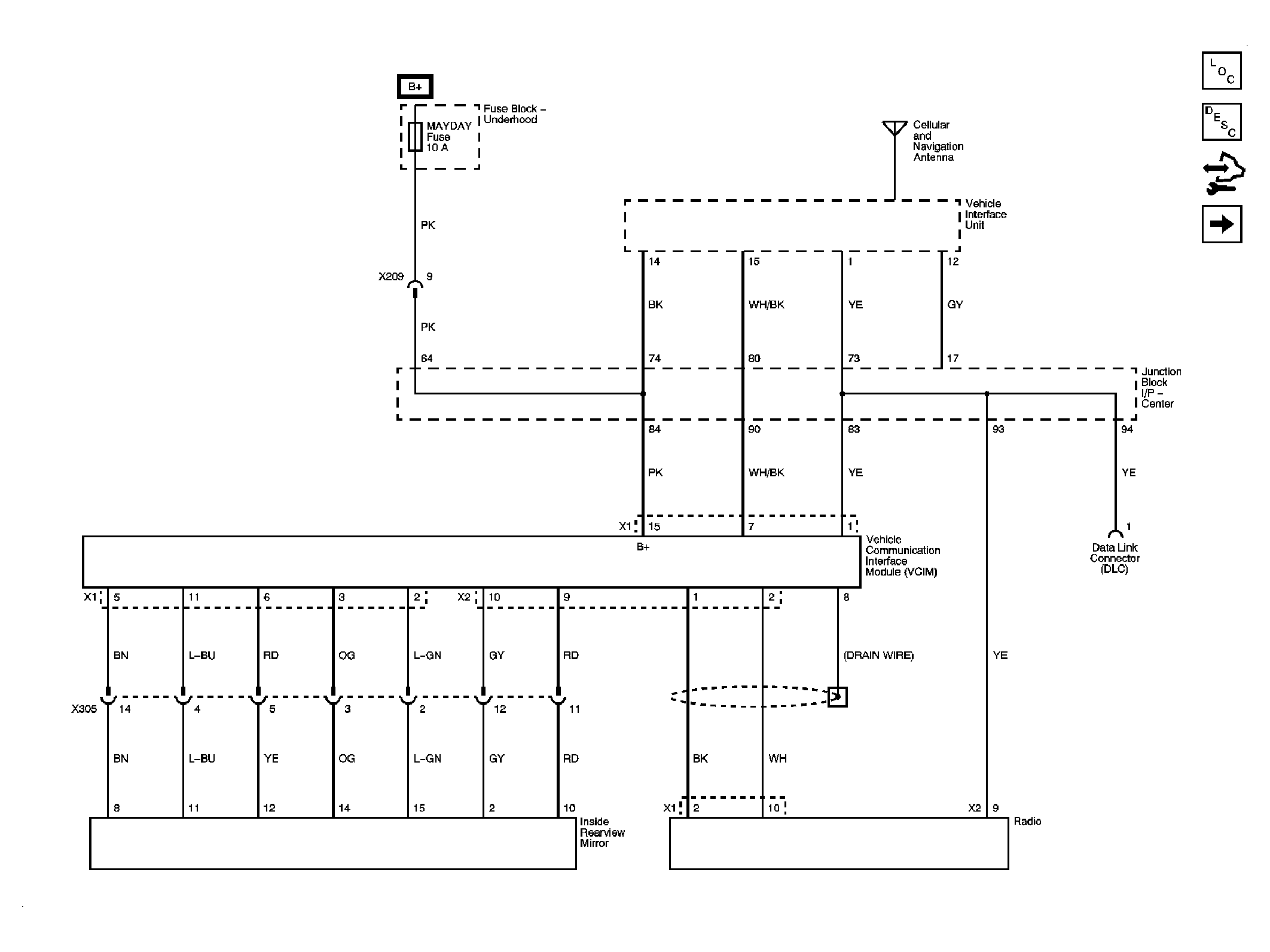

Fig 1: Vehicle Communications Interface Module, Vehicle Interface Unit, Inside Rearview Mirror, Data Link Connector Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

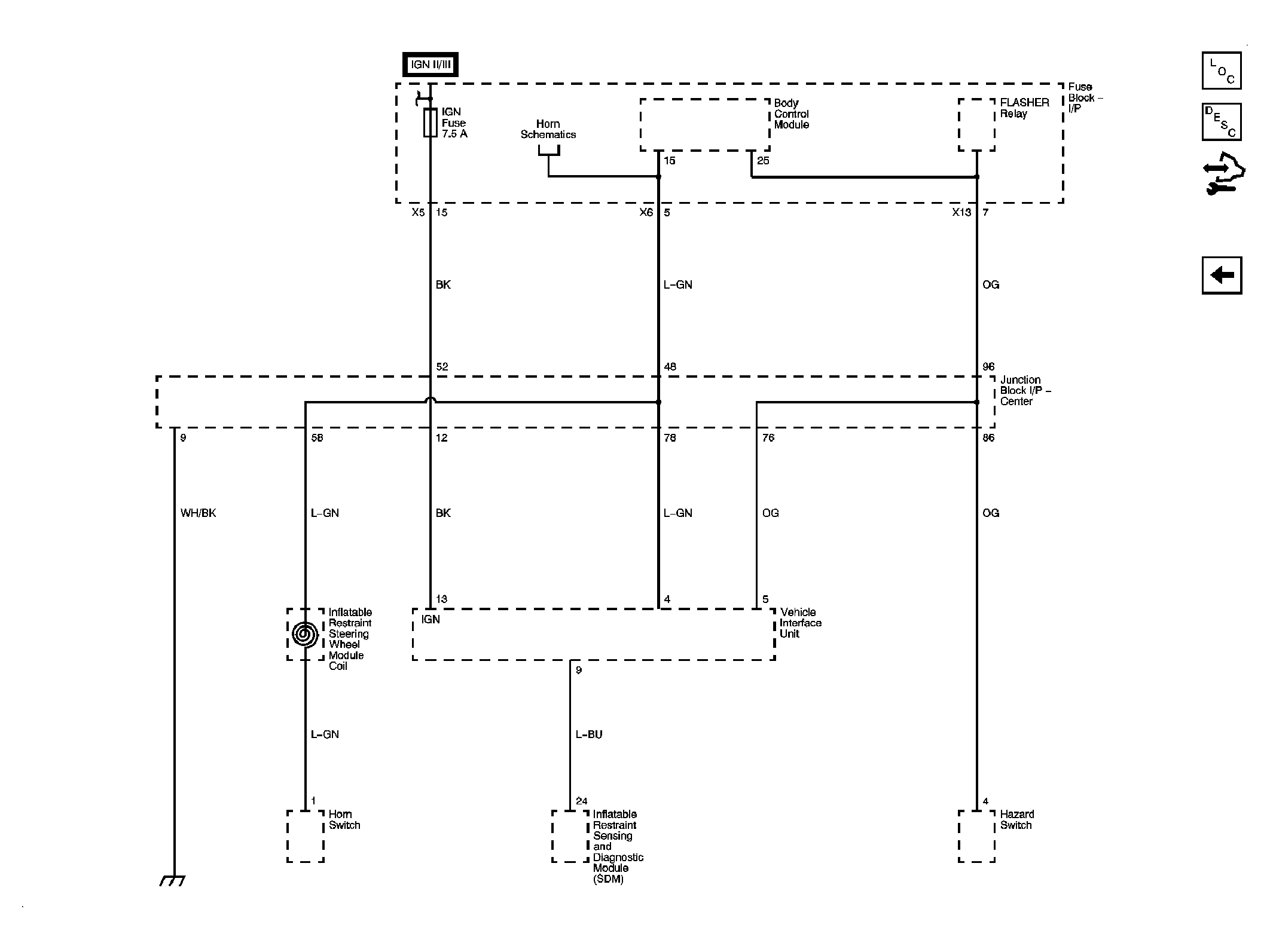

Fig 2: Vehicle Interface Unit Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
