Instrument Cluster Schematics

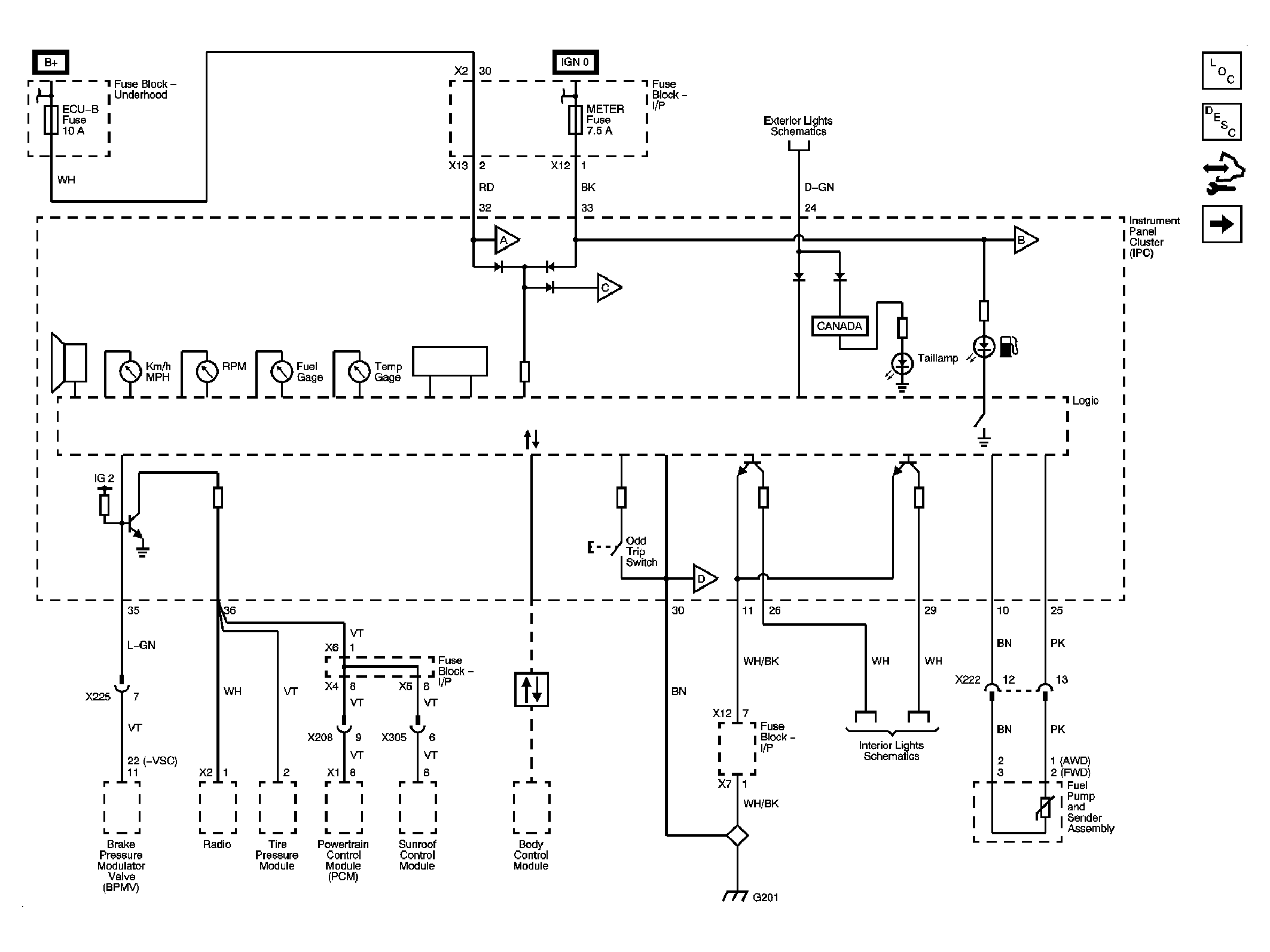

Fig 1: Power, Ground, Serial Data
GM2041437Courtesy of GENERAL MOTORS CORP.
Fig 2: Indicators 1 of 2
GM2041439Courtesy of GENERAL MOTORS CORP.

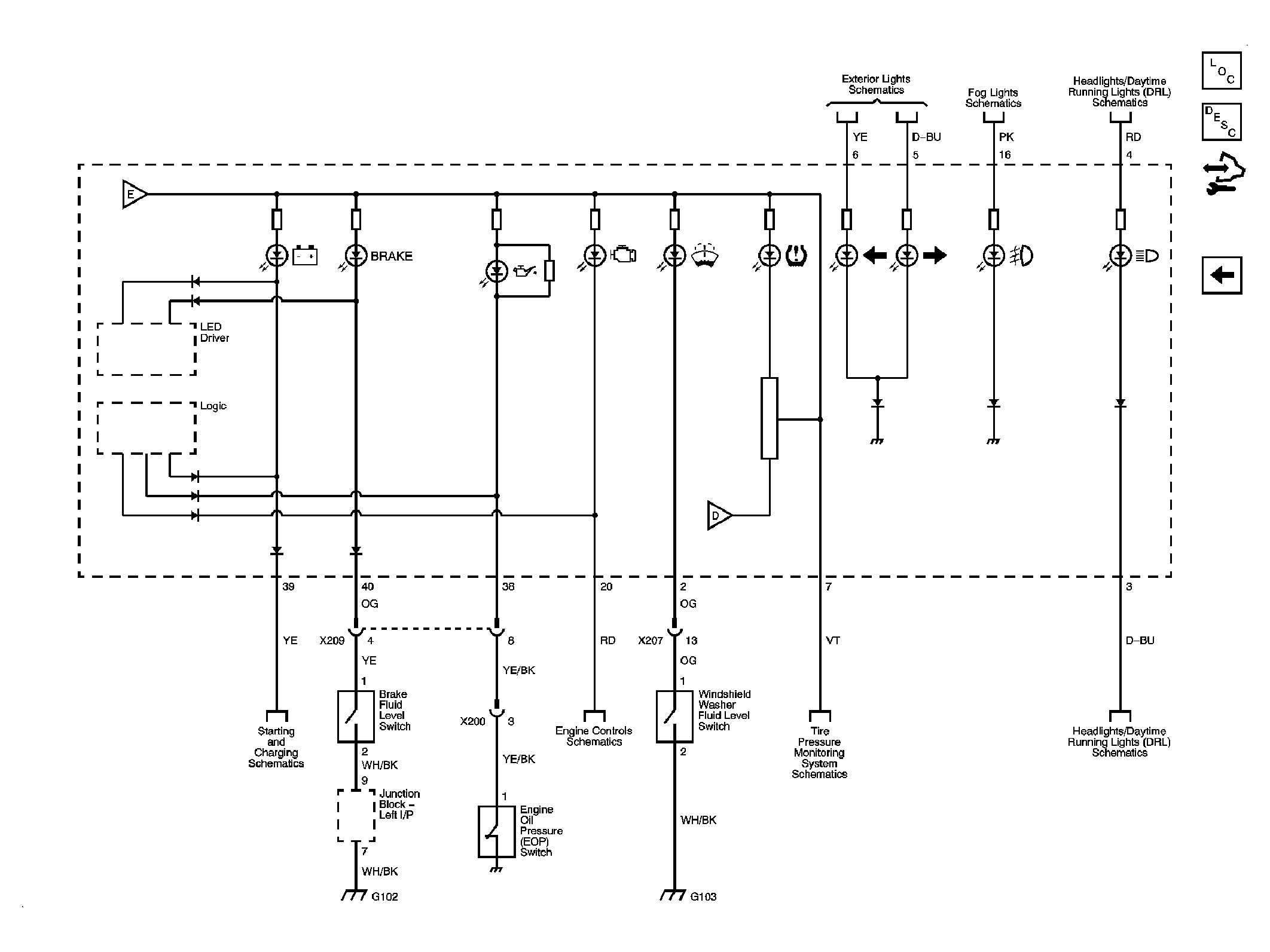

Fig 3: Indicators 2 of 2
GM2041442Courtesy of GENERAL MOTORS CORP.
