Radiator Outlet Hose Replacement (LY7)

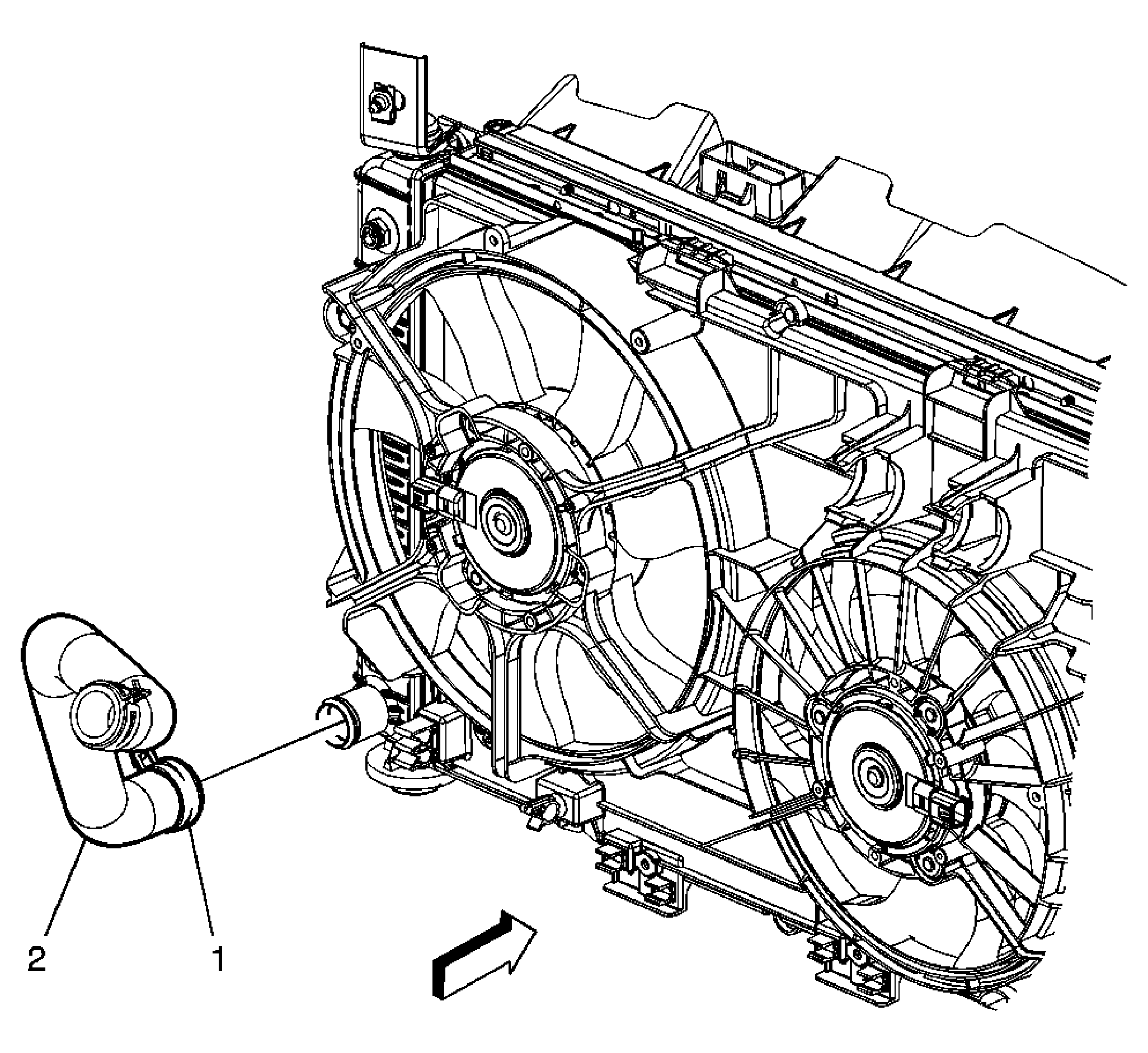

Fig 1: Identifying Radiator Outlet Hose
GM1819729Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill)  or Cooling System Draining and Filling (LNJ GE 47716 Fill)  or Cooling System Draining and Filling (LNJ Static Fill)  or Cooling System Draining and Filling (LY7 Static Fill) .
  2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Radiator Outlet Hose Clamps
2 Radiator Outlet Hose
