Harness Routing Views

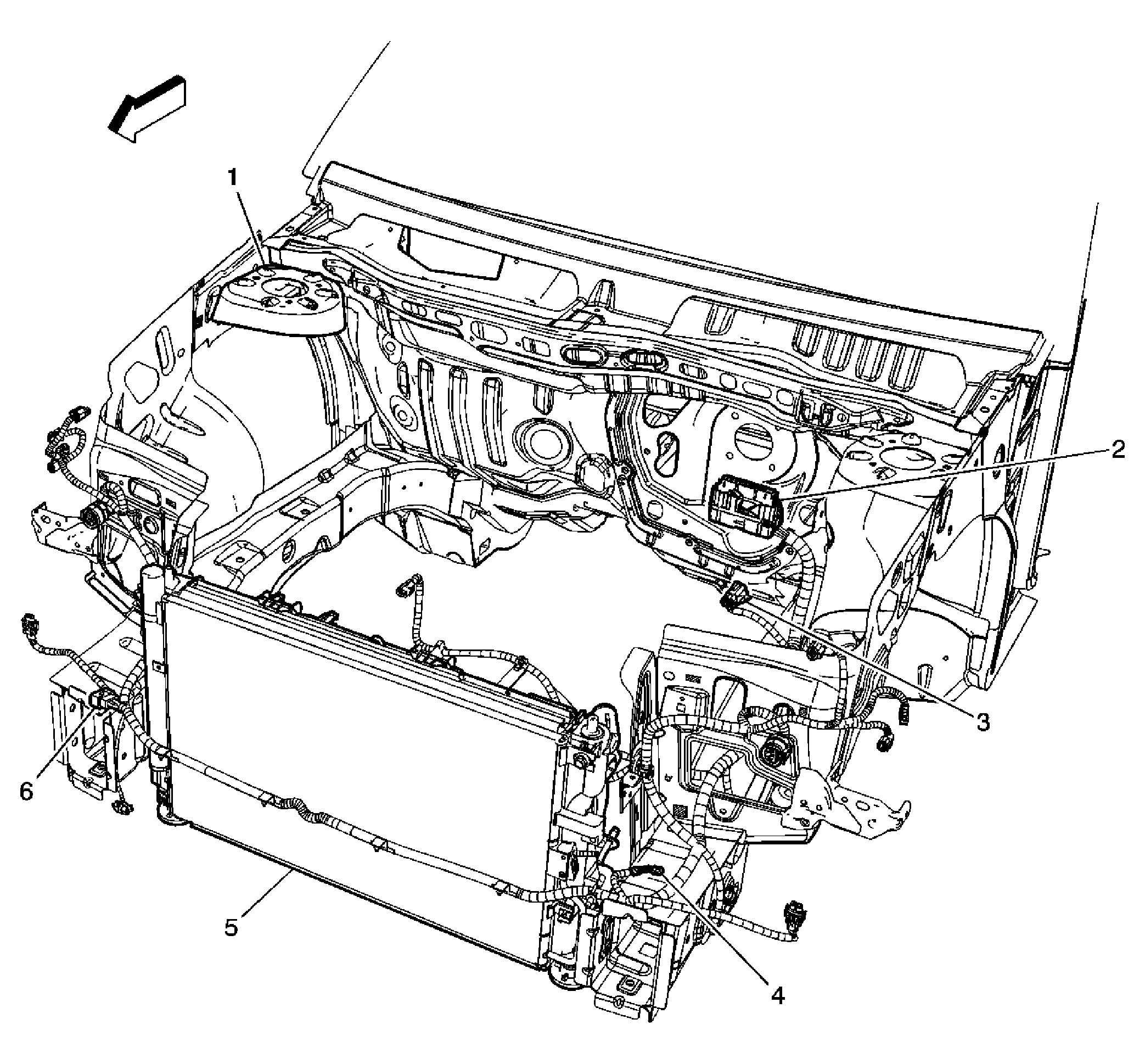

Fig 1: Forward Lamp Harness (Chevy)
GM2017097Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Front Strut Tower
2 Fuse Block - Underhood X3 Connector
3 X101
4 G101
5 Radiator
6 X108 (LY7)

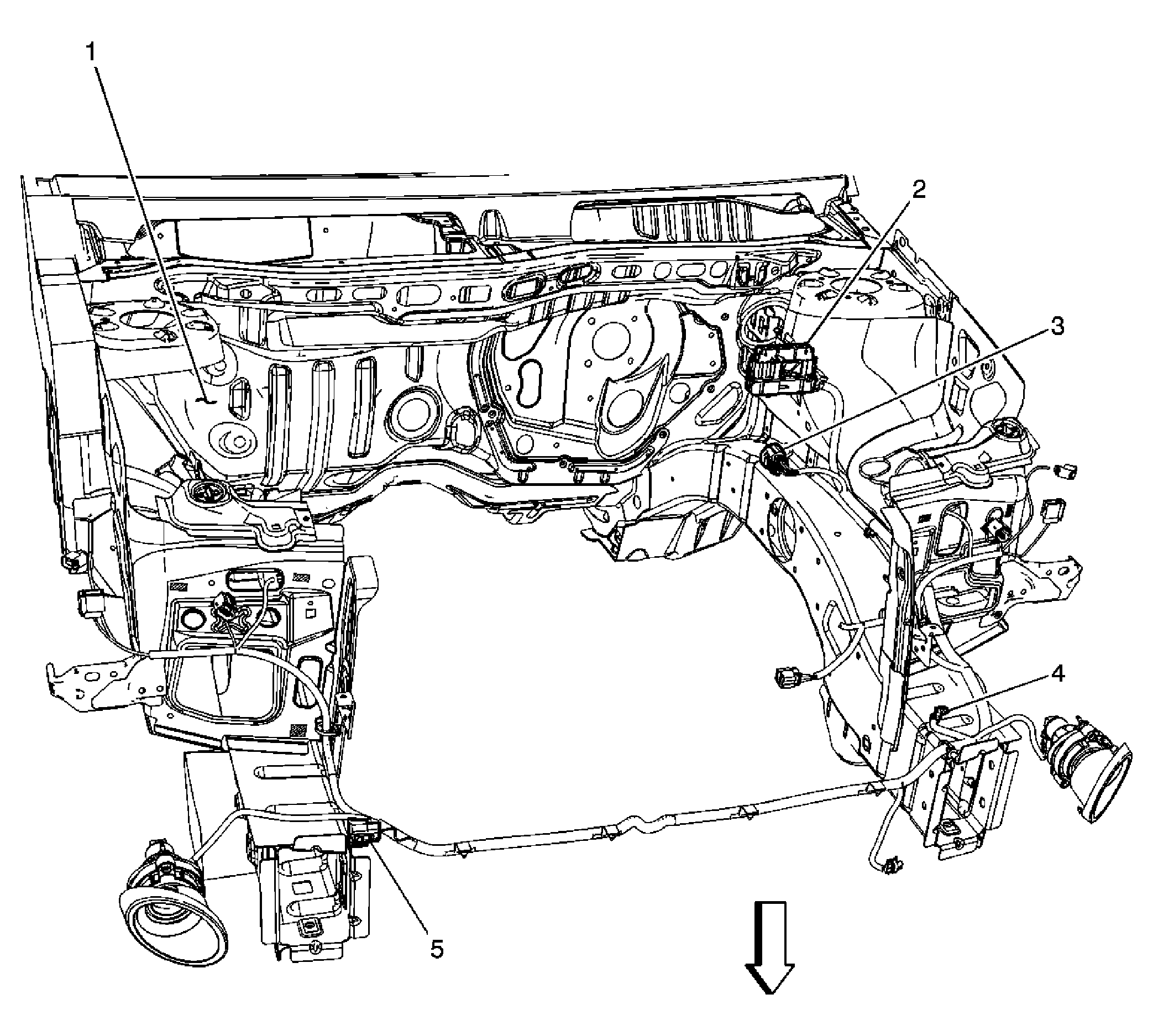

Fig 2: Forward Lamp Harness (Pontiac)
GM2017205Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Panel
2 Fuse Block - Underhood X3 Connector
3 X101
4 G101
5 X108 (LY7)

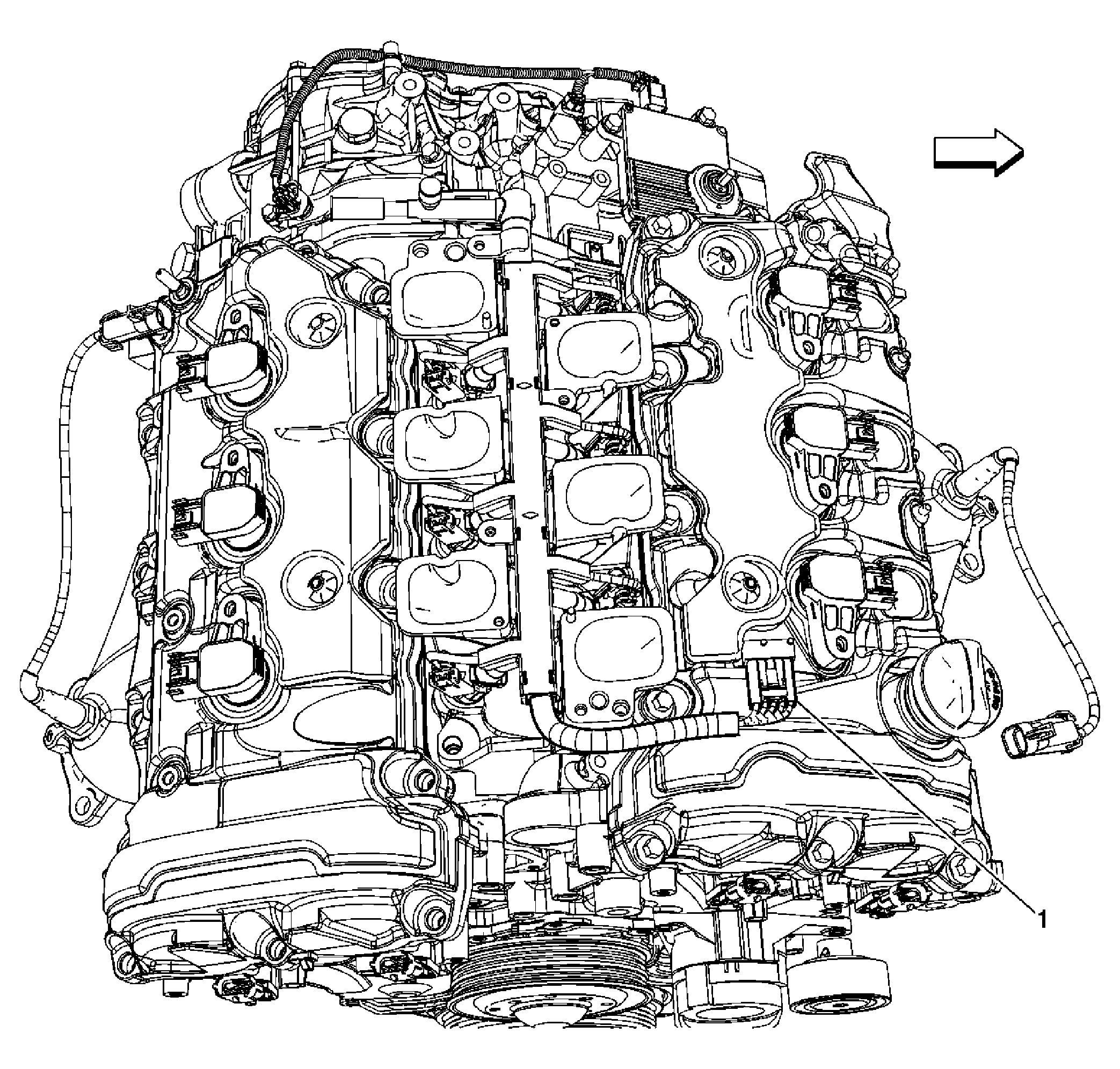

Fig 3: Fuel Injector and Transmission Harness (LY7)
GM2022235Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X105

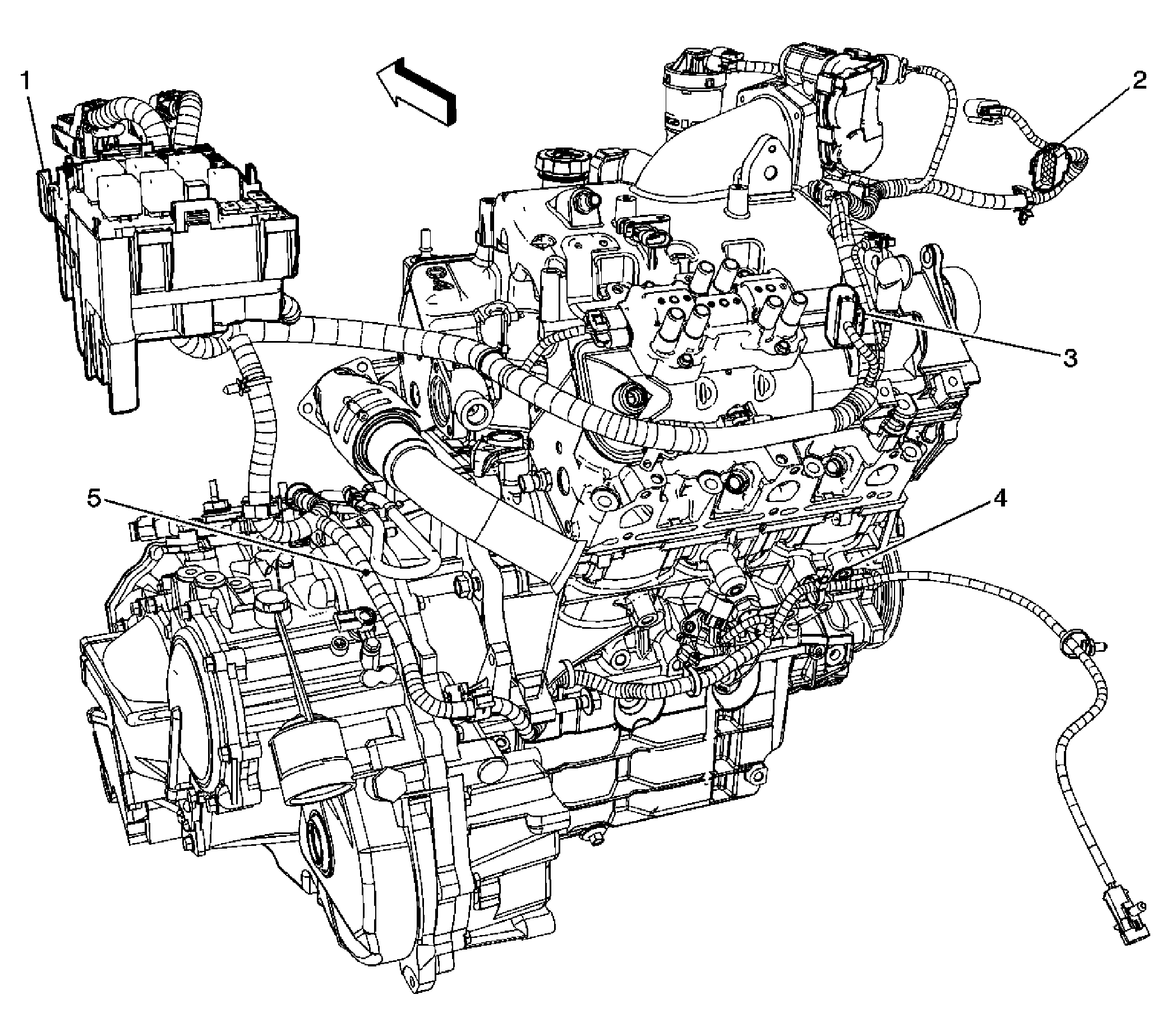

Fig 4: Engine Harness - Rear (LNJ)
GM1776733Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 X106
3 X105
4 G111
5 J100

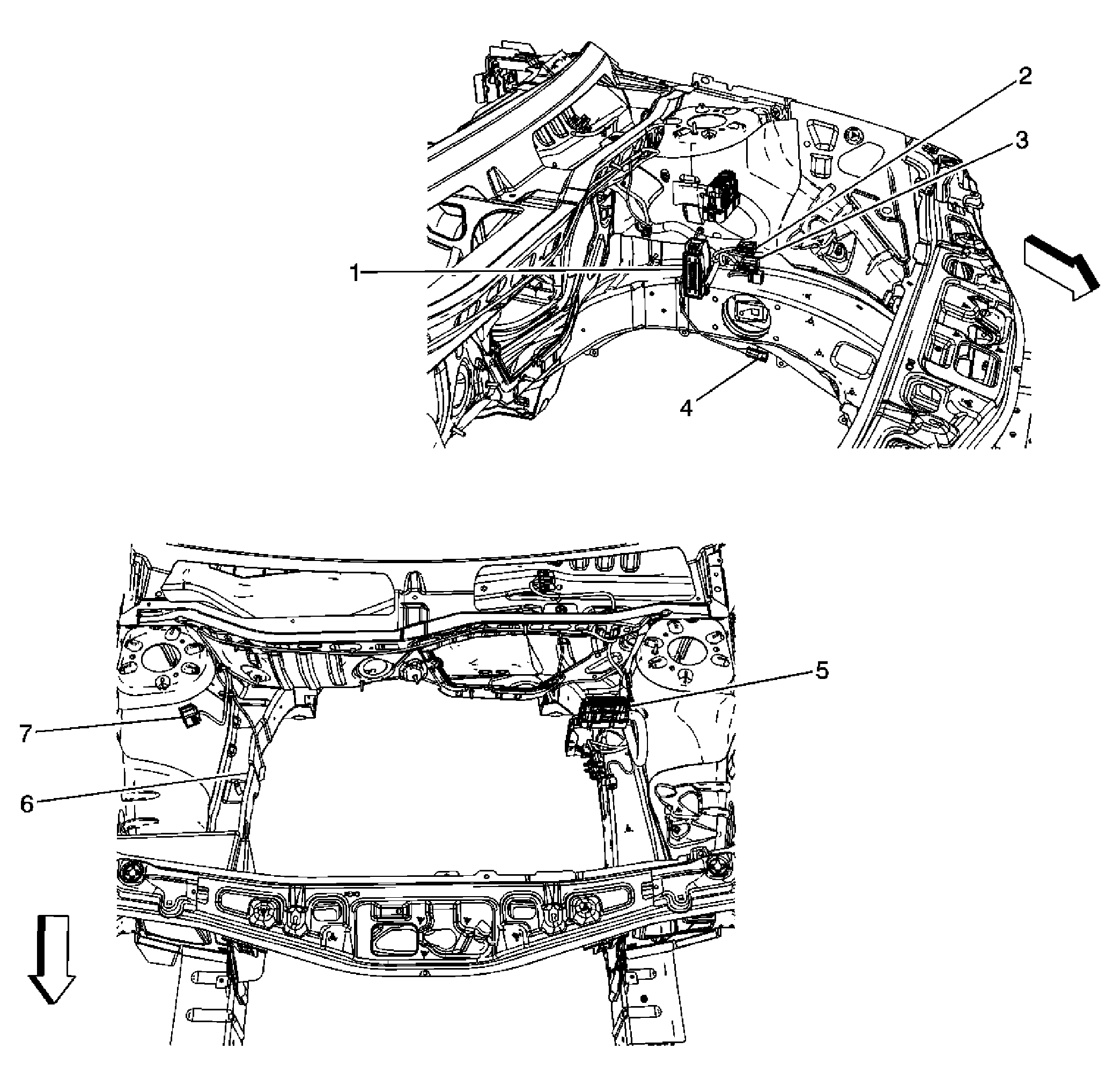

Fig 5: View Of Body Harness - Front
GM1777003Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Brake Control Module (EBCM) Connector
2 X102
3 X101
4 X103
5 Fuse Block - Underhood X2 Connector
6 X104
7 X106

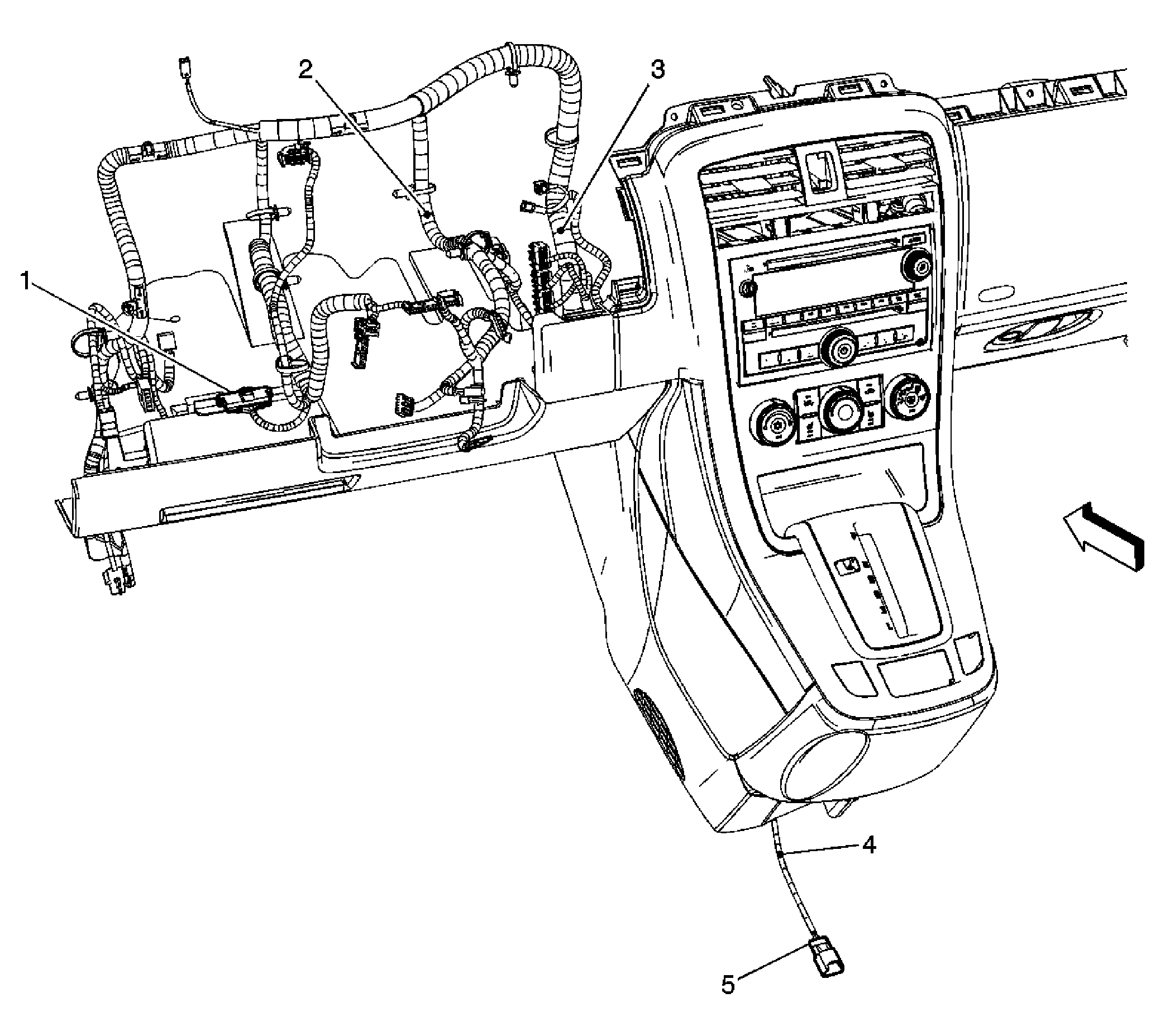

Fig 6: View Of I/P Harness - Driver Side
GM1777012Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX200
2 J210
3 J201
4 J211 (UUC)
5 X207 (UUC)
6 X412 (UUC)

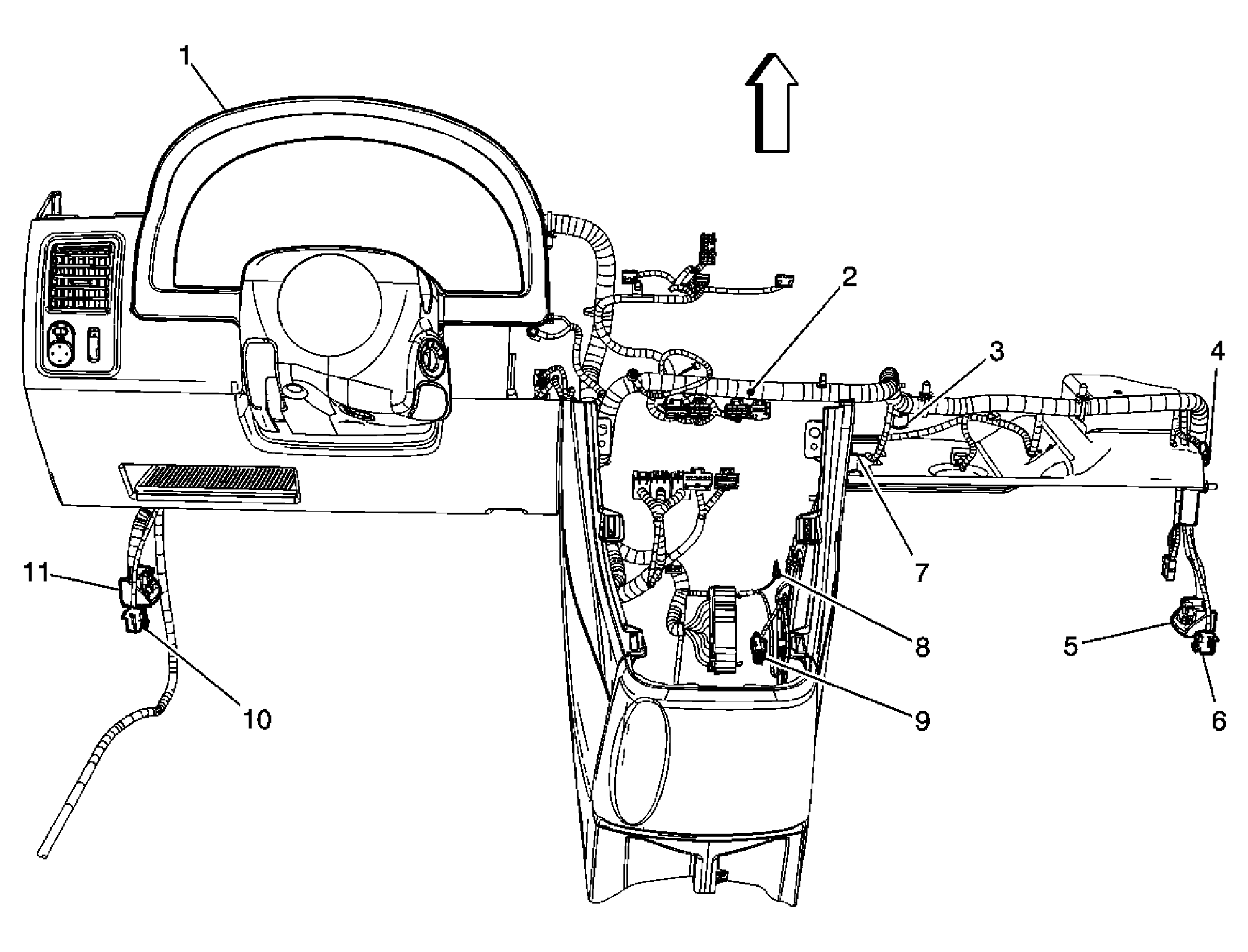

Fig 7: View Of I/P Harness - Passenger Side
GM1777007Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster Trim
2 J212
3 X214
4 G201
5 X206
6 X218
7 X216
8 G203
9 X226
10 X204
11 X210

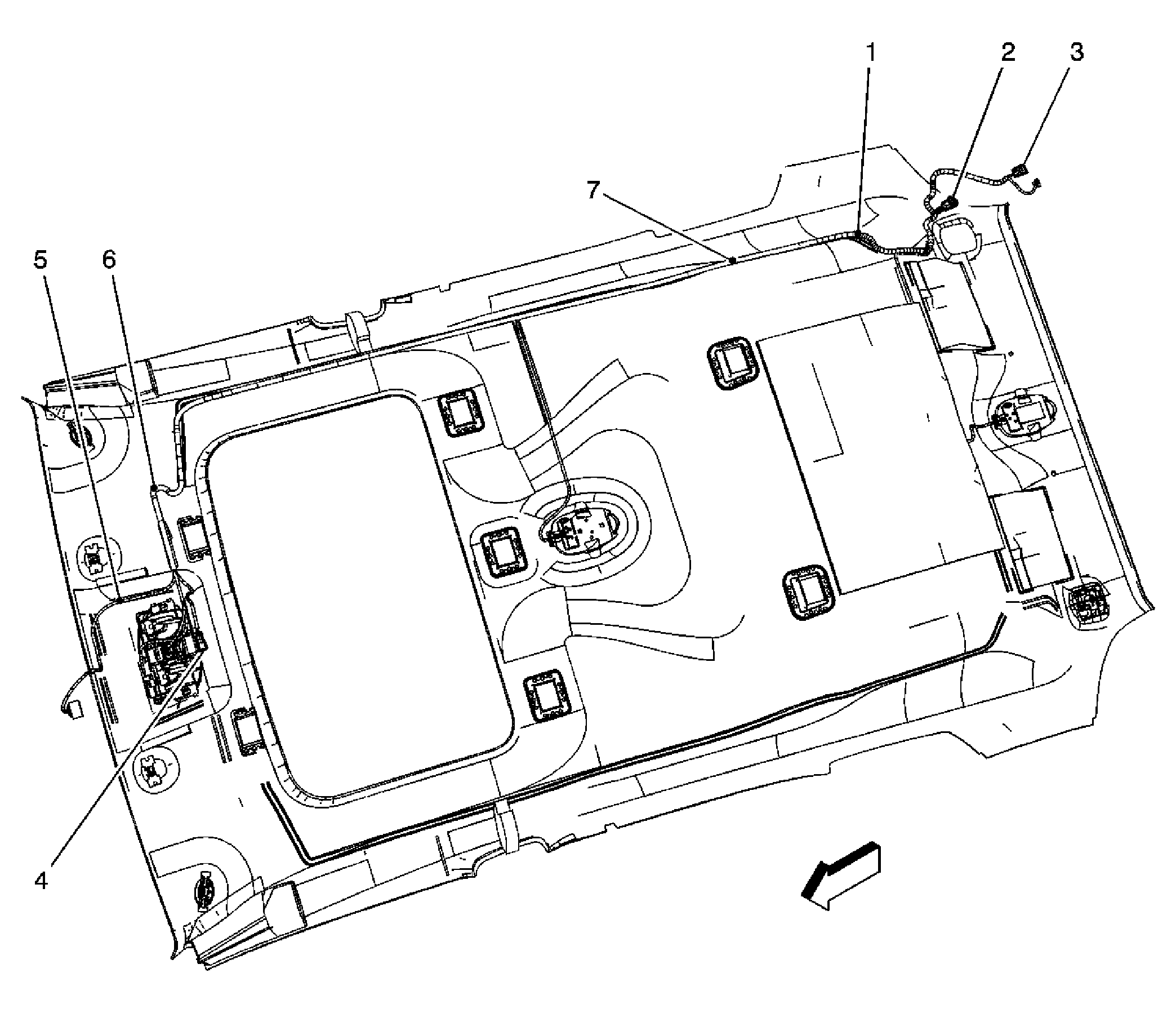

Fig 8: Headliner Harness (CF5)
GM2022026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J305
2 X407
3 X422 (UE1/U3U)
4 X311 (UUC)
5 J310
6 J311
7 J312

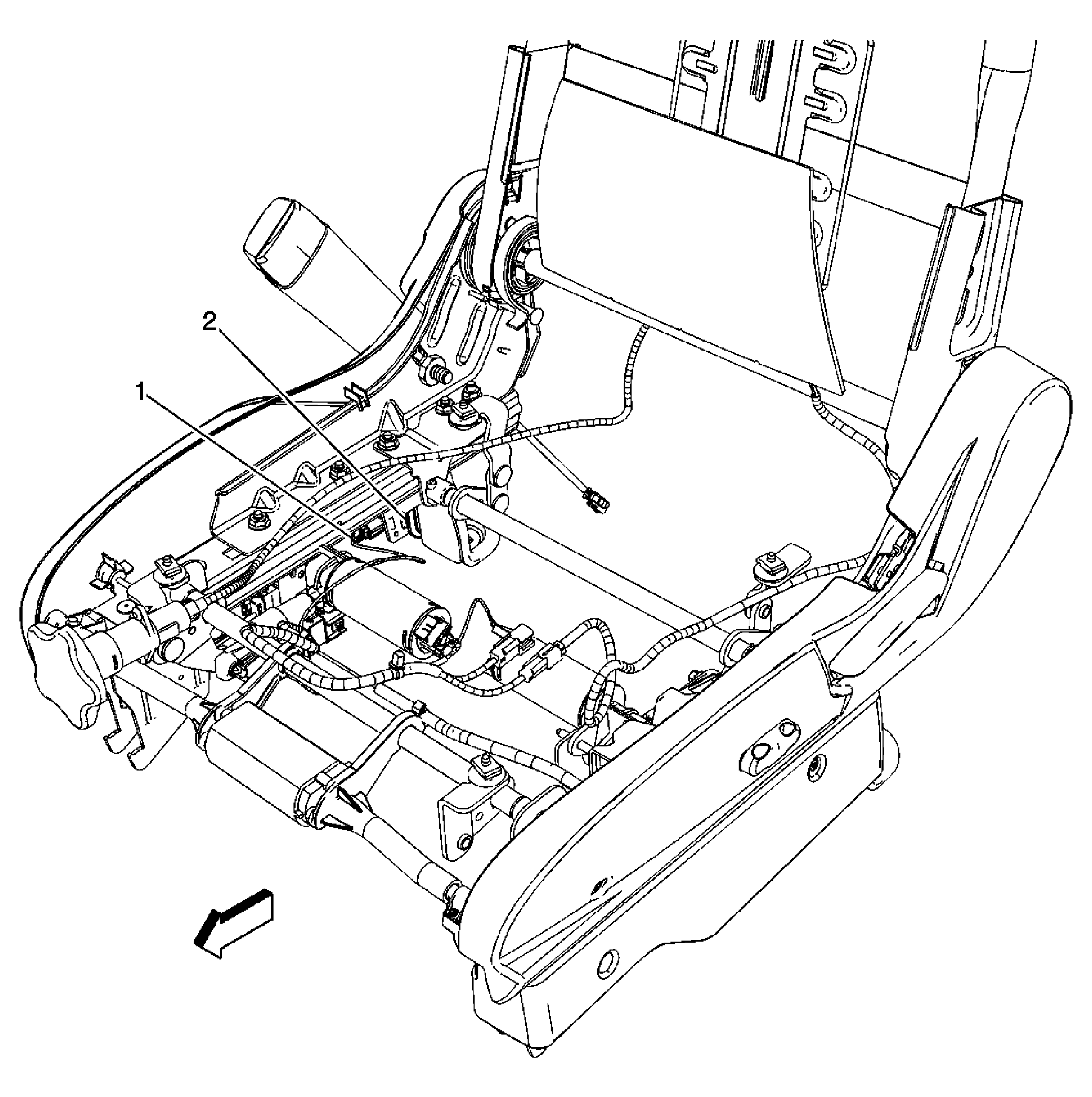

Fig 9: View Of Driver Seat Harness
GM1776524Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308 (AG1)
2 X312 (AG1)

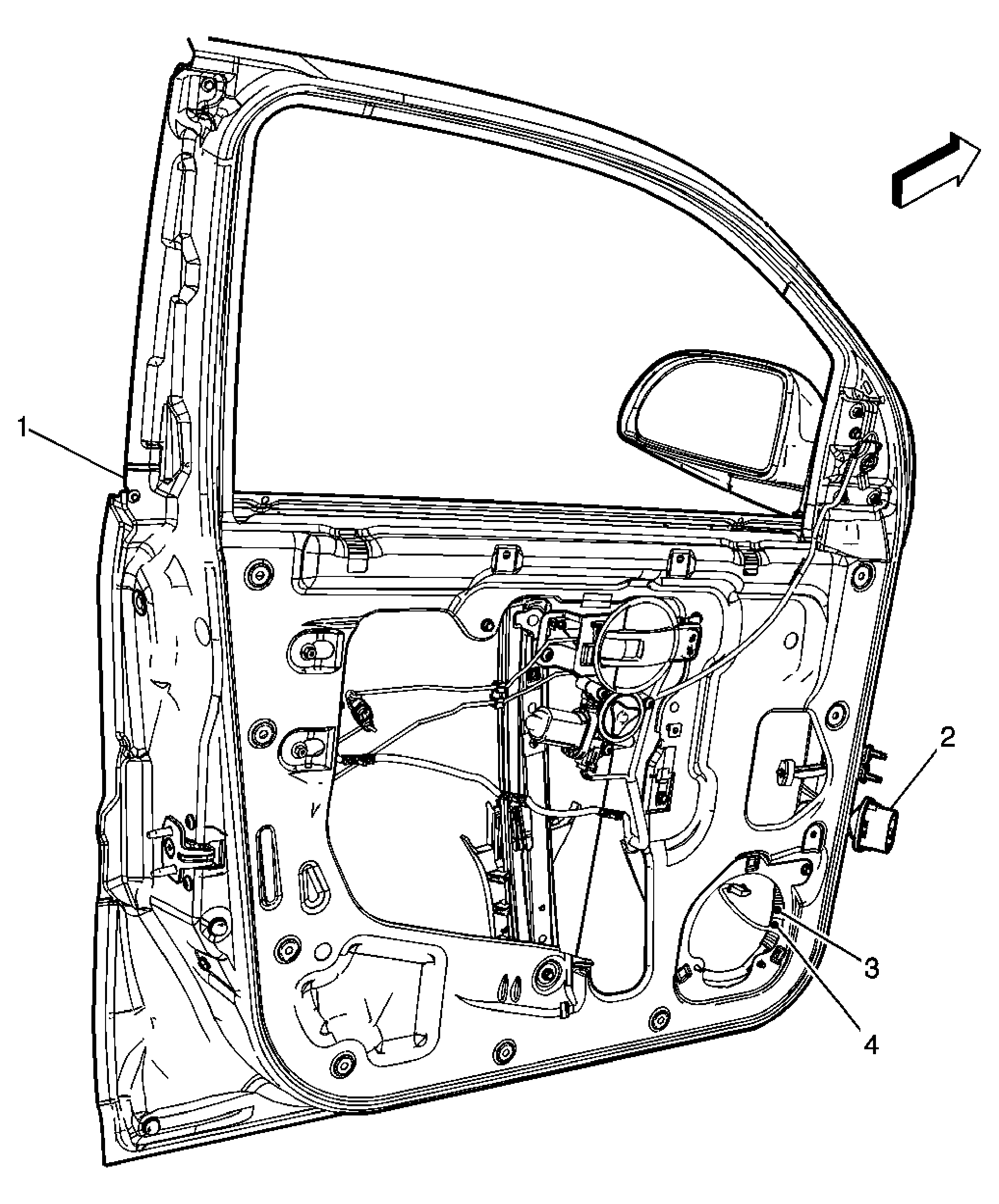

Fig 10: View Of Driver Door Harness
GM1777061Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 X500
3 J501
4 J502

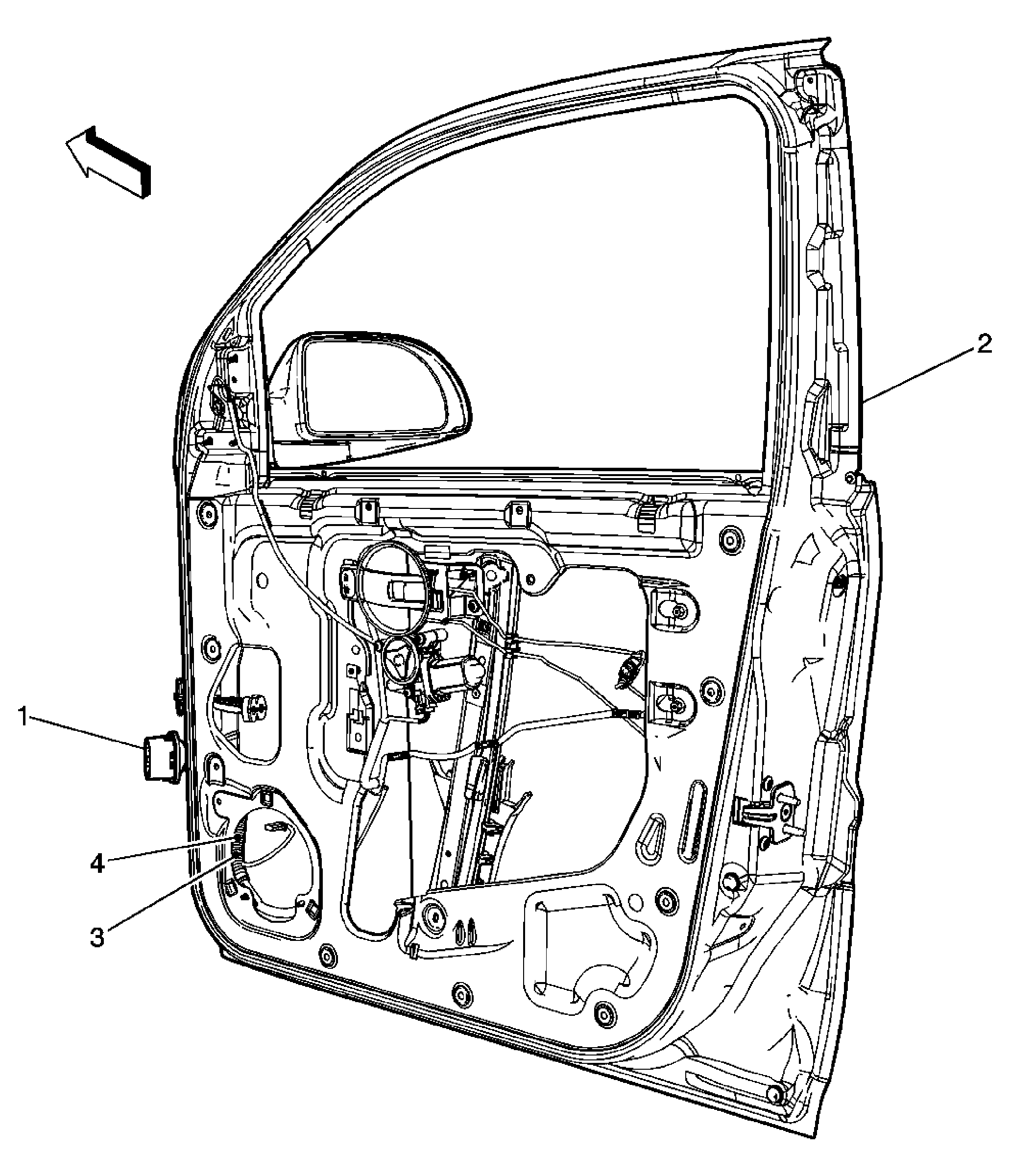

Fig 11: View Of Passenger Door Harness
GM1777074Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X600
2 Door Frame
3 J602
4 J601

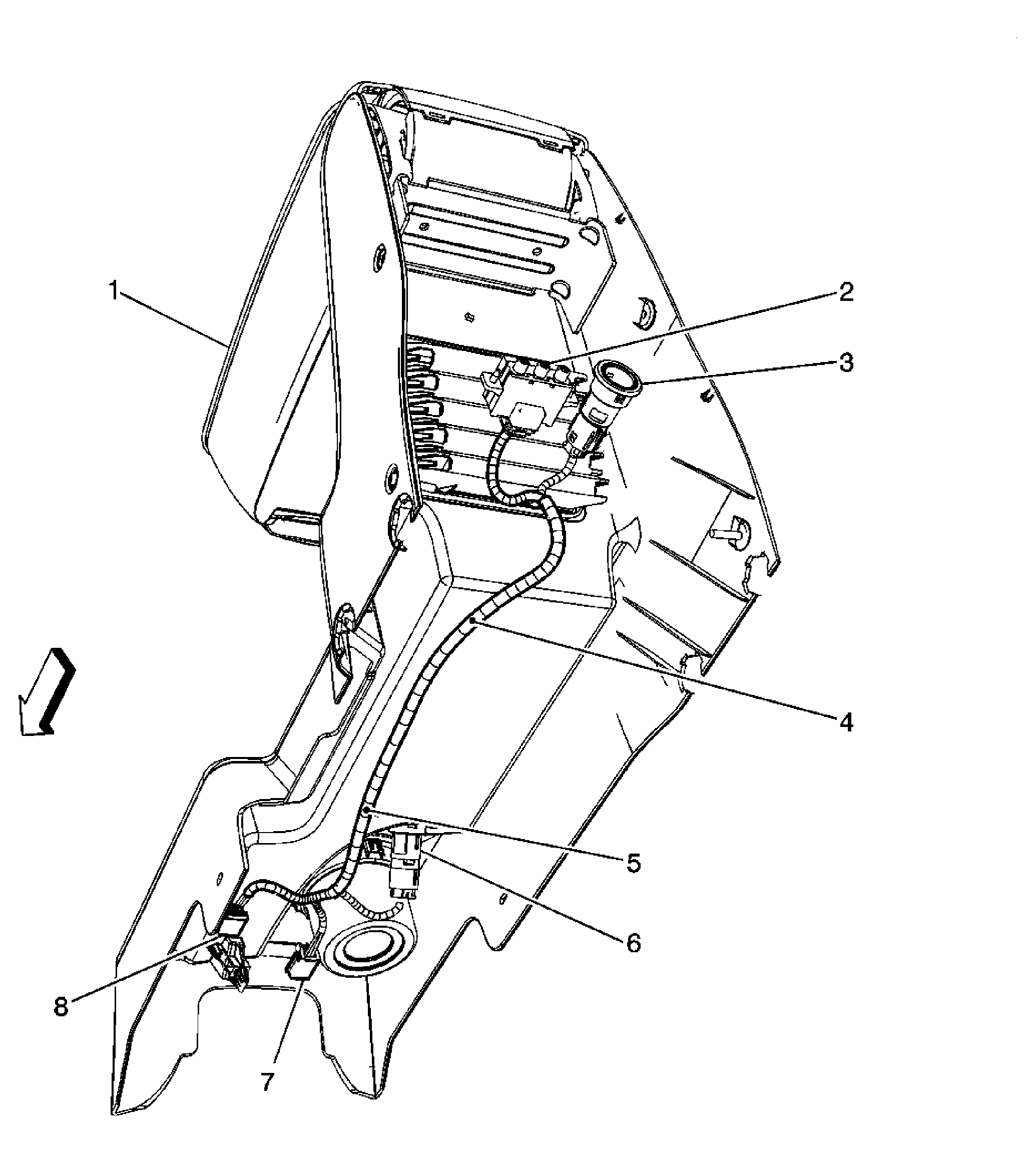

Fig 12: View Of Console Harness
GM1776901Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Arm Rest
2 Audio/Video Adaptor (UUC)
3 Accessory Power Outlet - Center Console 1
4 J301
5 J300
6 Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 2 (-DT4)
7 X305
8 X207 (UUC)

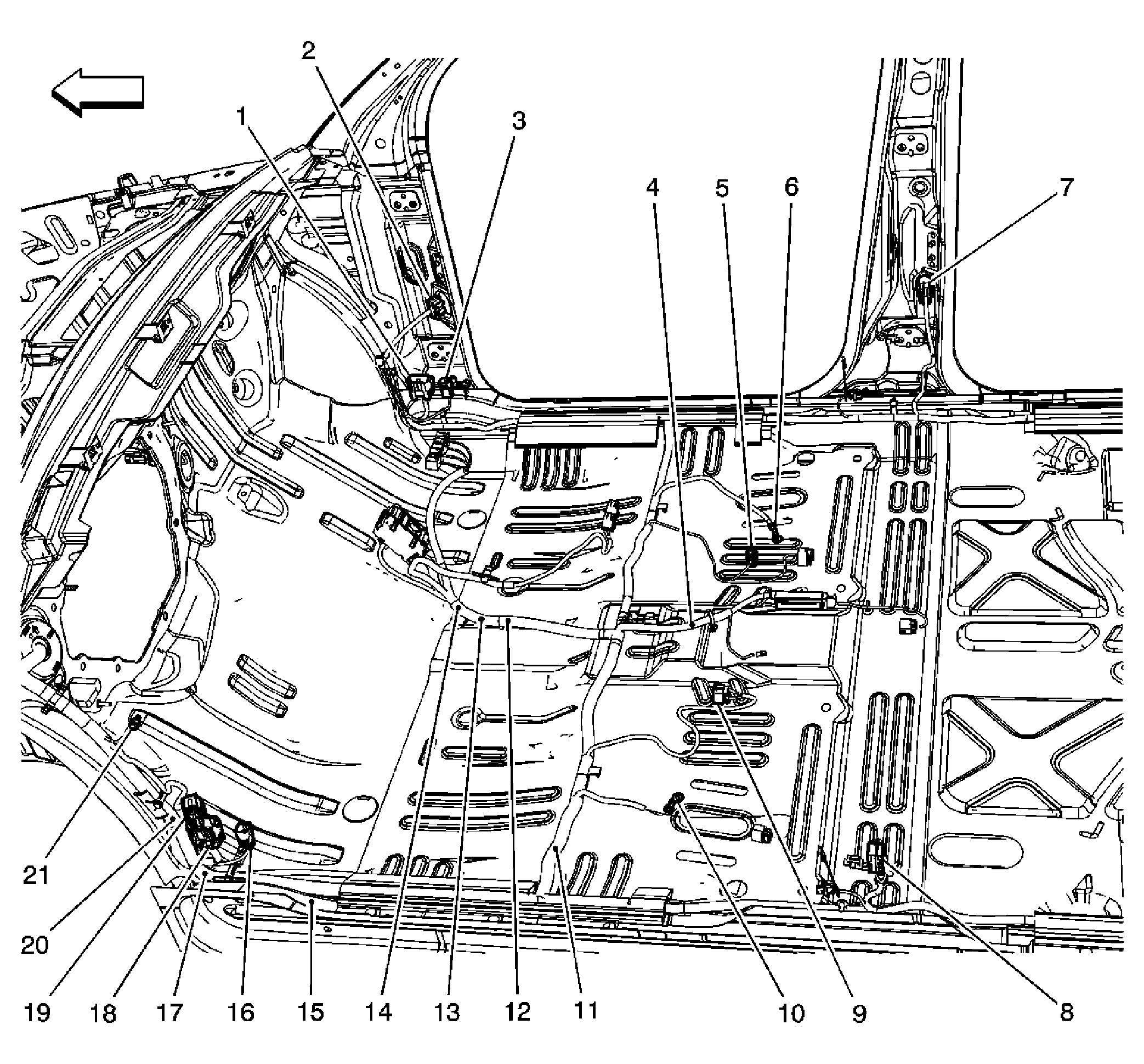

Fig 13: Body Harness - Passenger Compartment
GM2017347Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X206
2 X600
3 X219
4 J307
5 X309
6 G311
7 X800
8 X700
9 X308 (AG1)
10 G301
11 J304
12 J308 (Chevy)
13 J302
14 J306
15 J204
16 X204
17 J202
18 X210
19 X500
20 J200
21 G205

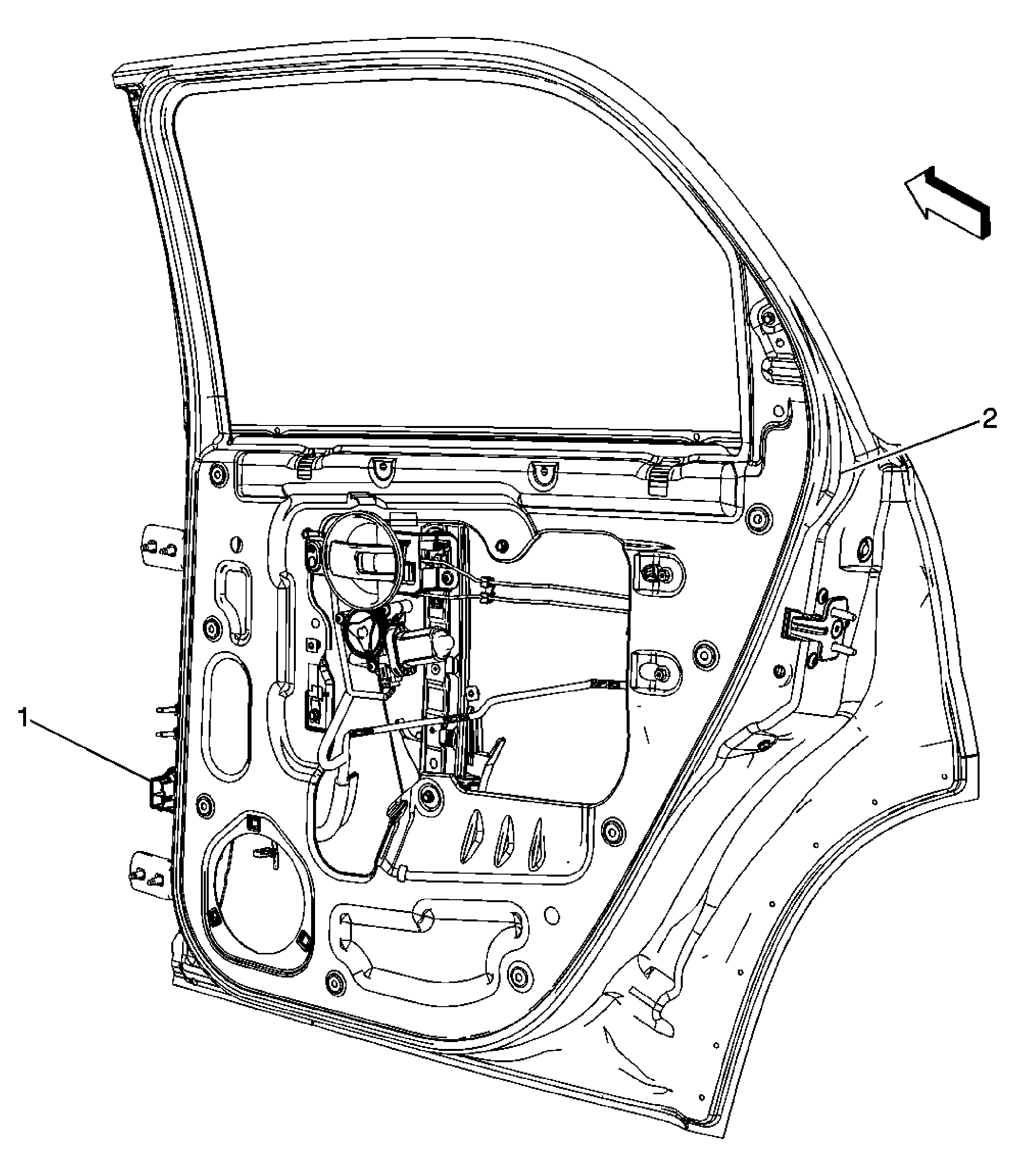

Fig 14: View Of RR Door Harness
GM1777078Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X800
2 Door Frame

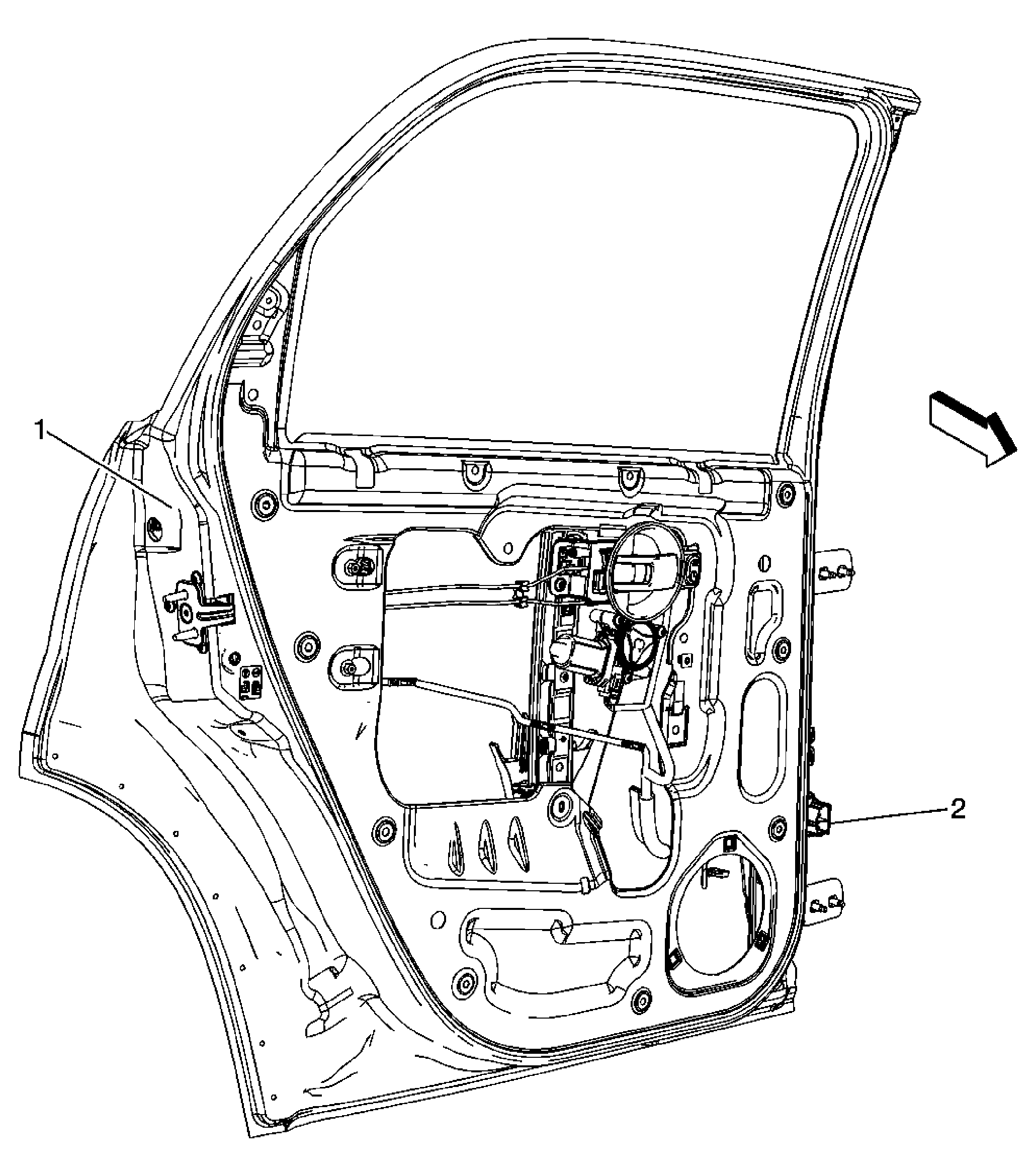

Fig 15: View Of LR Door Harness
GM1777076Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 X700

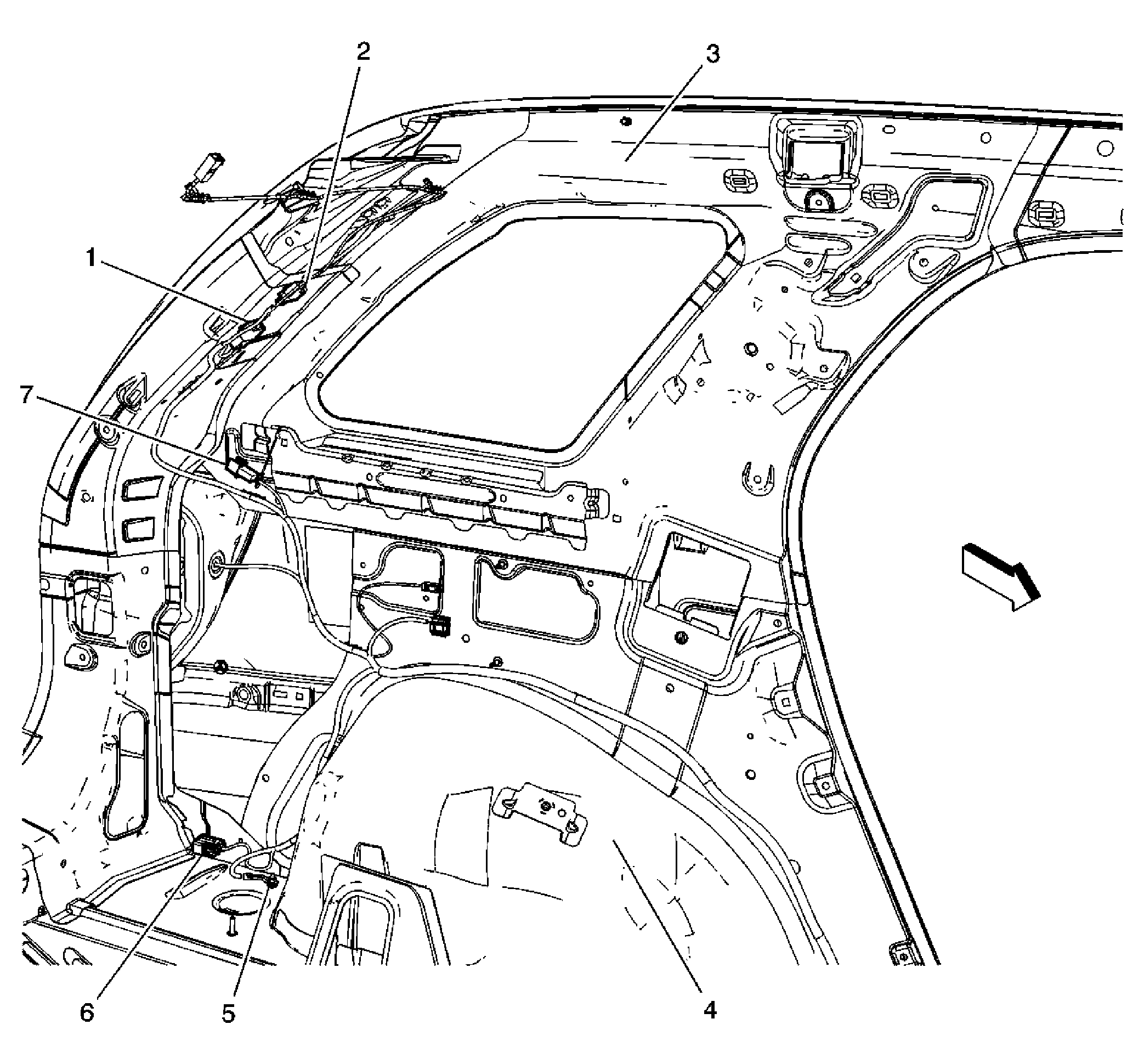

Fig 16: View Of Body Harness - LR
GM1776933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 X405
3 Left Rear Body Panel
4 Left Rear Wheel Well
5 G401
6 X409 (V92)
7 X420 (ASF)

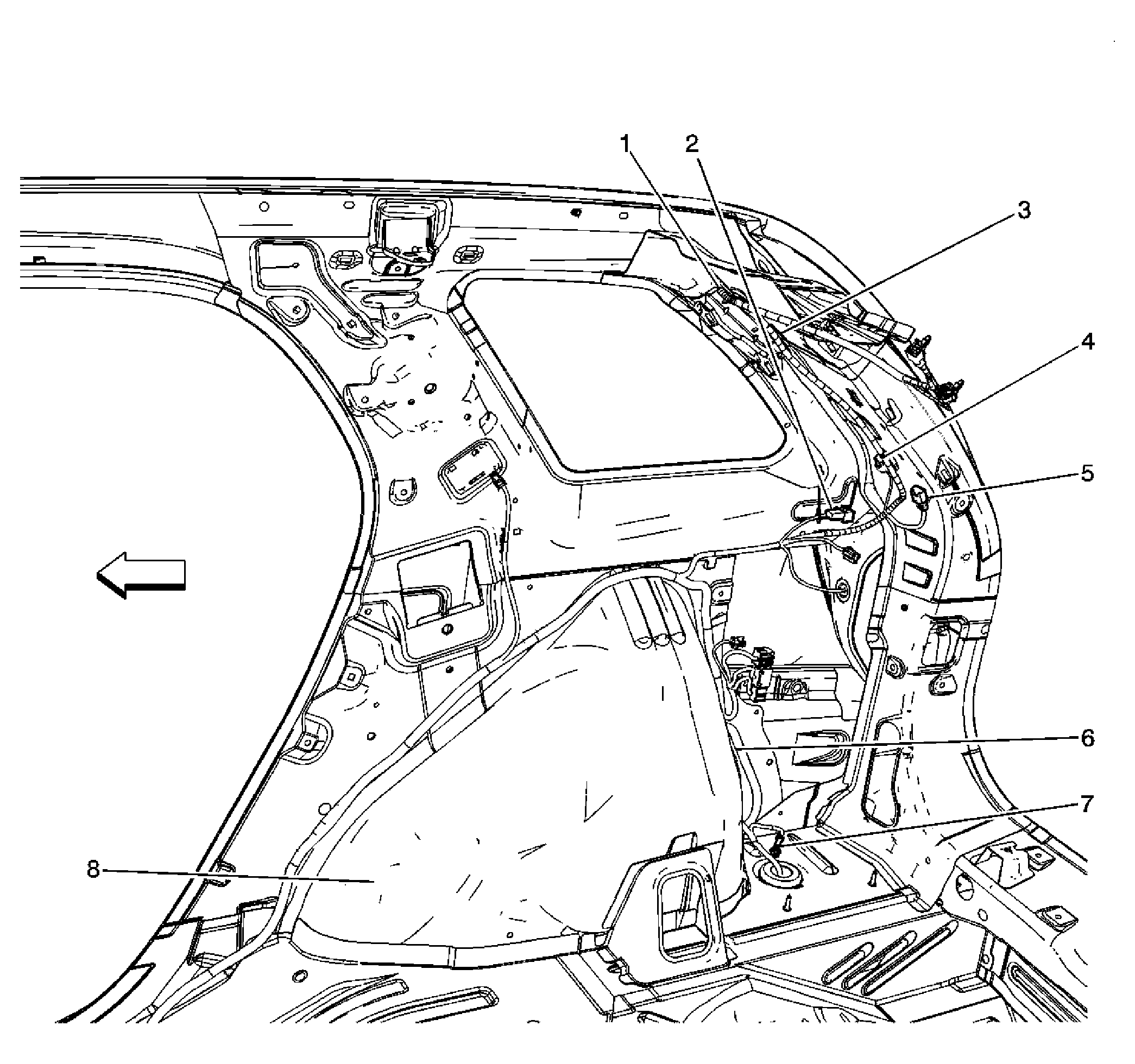

Fig 17: Body Harness - Right Rear
GM2022282Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X422 (UE1/U3U)
2 X421 (ASF)
3 X414
4 X405
5 X412 (UUC)
6 J409
7 G403
8 Right Rear Wheel Well

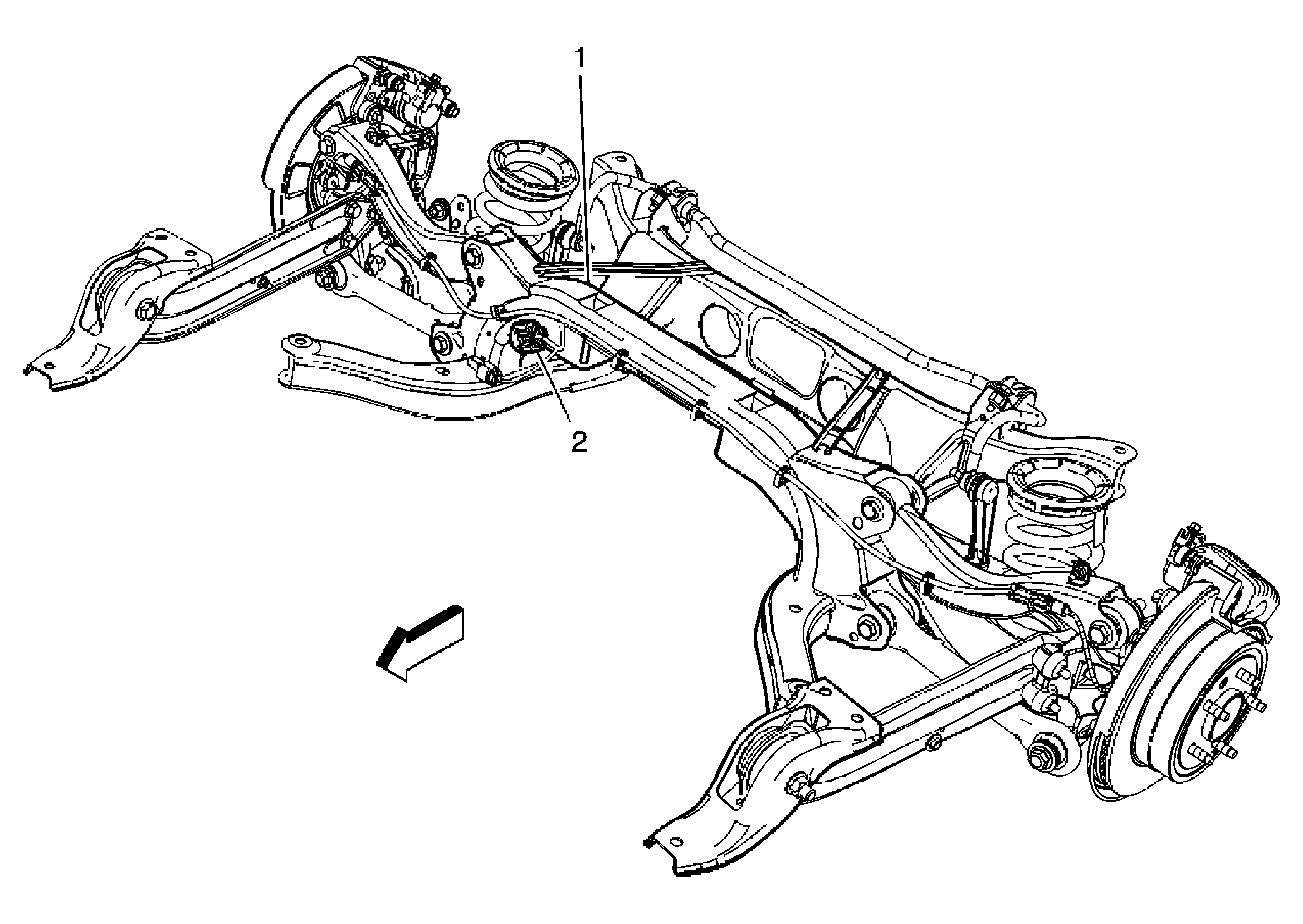

Fig 18: View Of Chassis Harness
GM1787452Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Cradle
2 X400

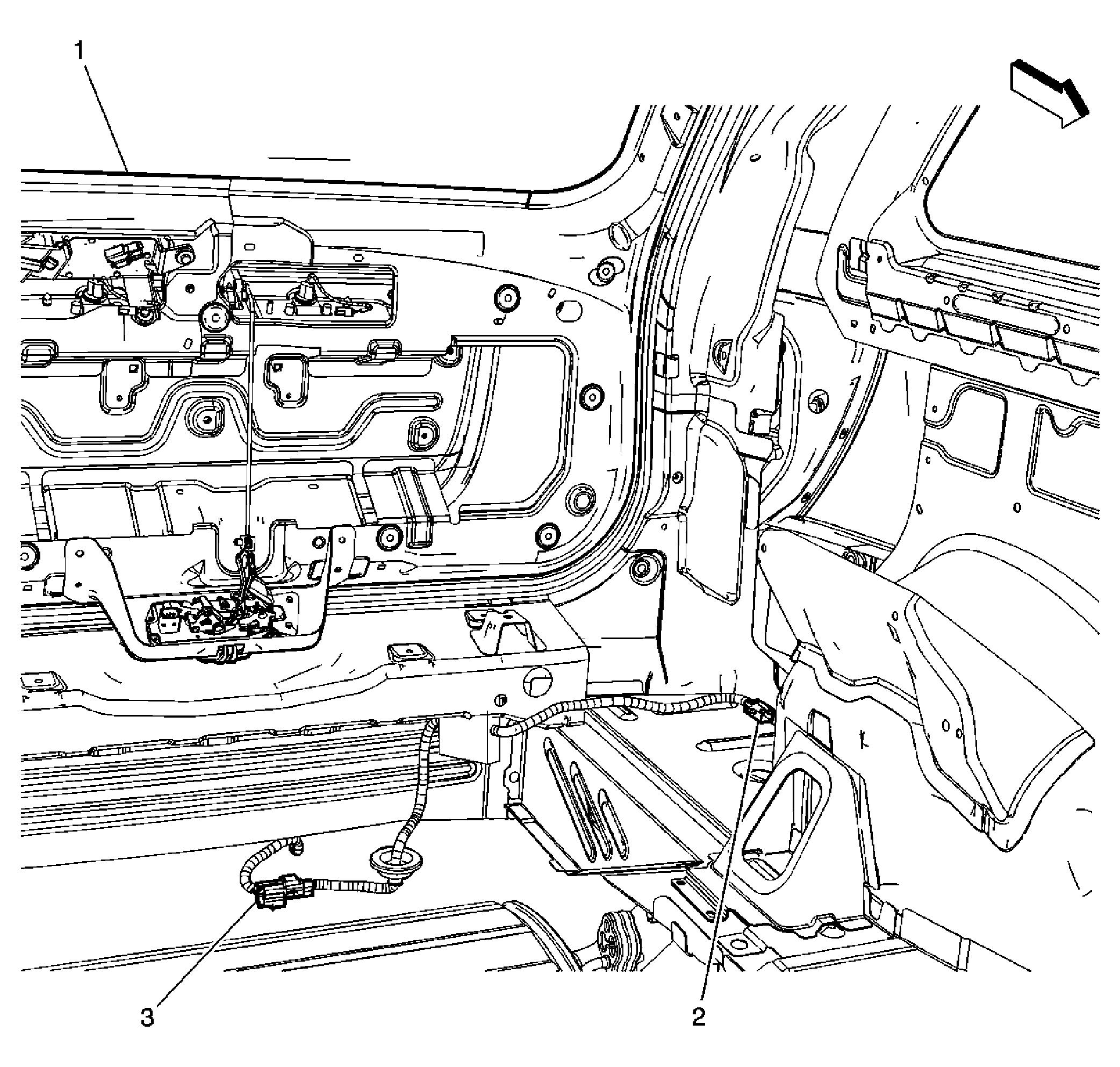

Fig 19: View Of Trailer Harnesses
GM1776515Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Liftgate
2 X409 (V92)
3 X410 (V92)

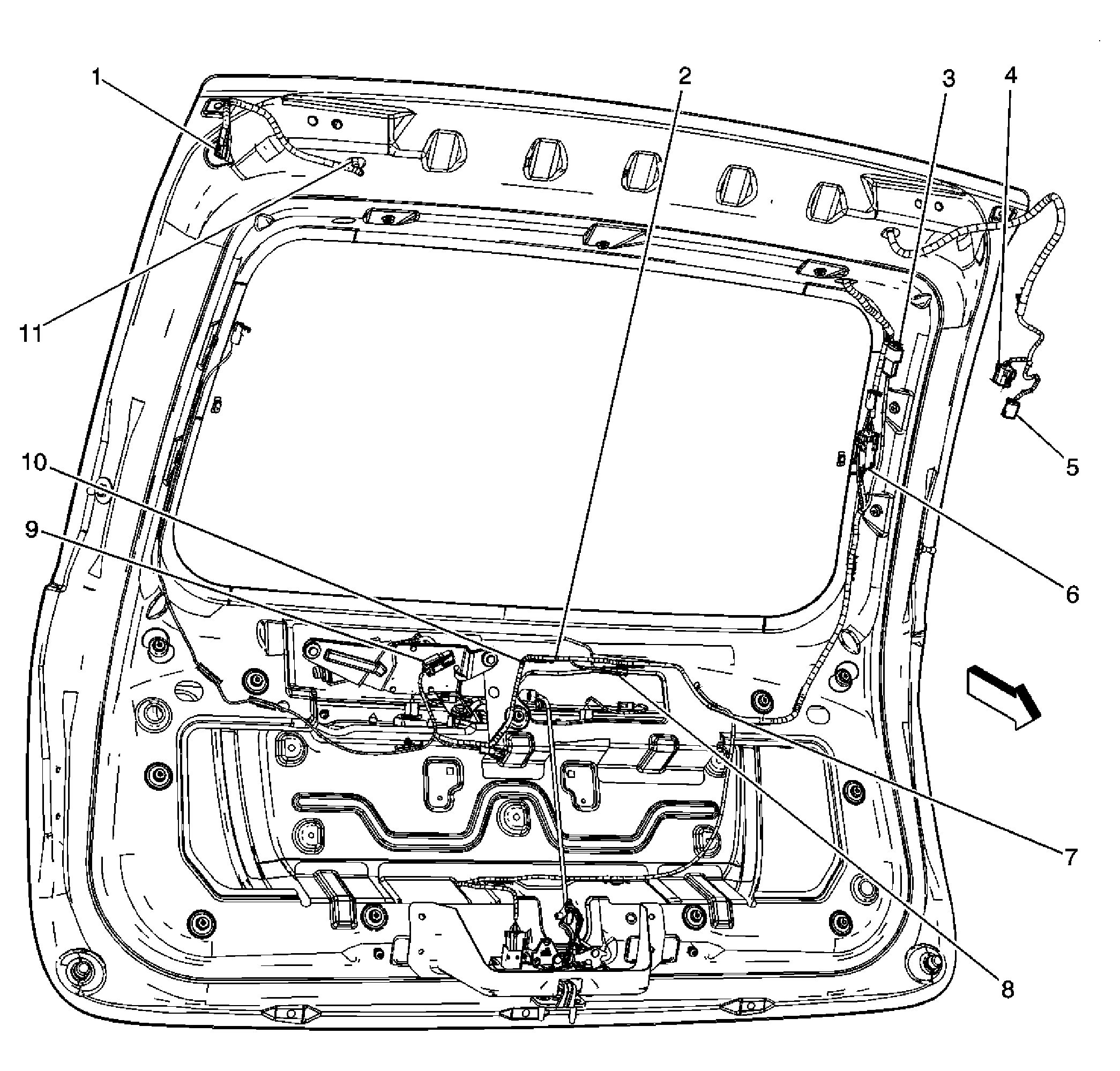

Fig 20: Liftgate Harnesses
GM2022309Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X414
2 J901
3 X902
4 X405
5 X401
6 X906
7 J902
8 X907
9 X908
10 J900
11 X911

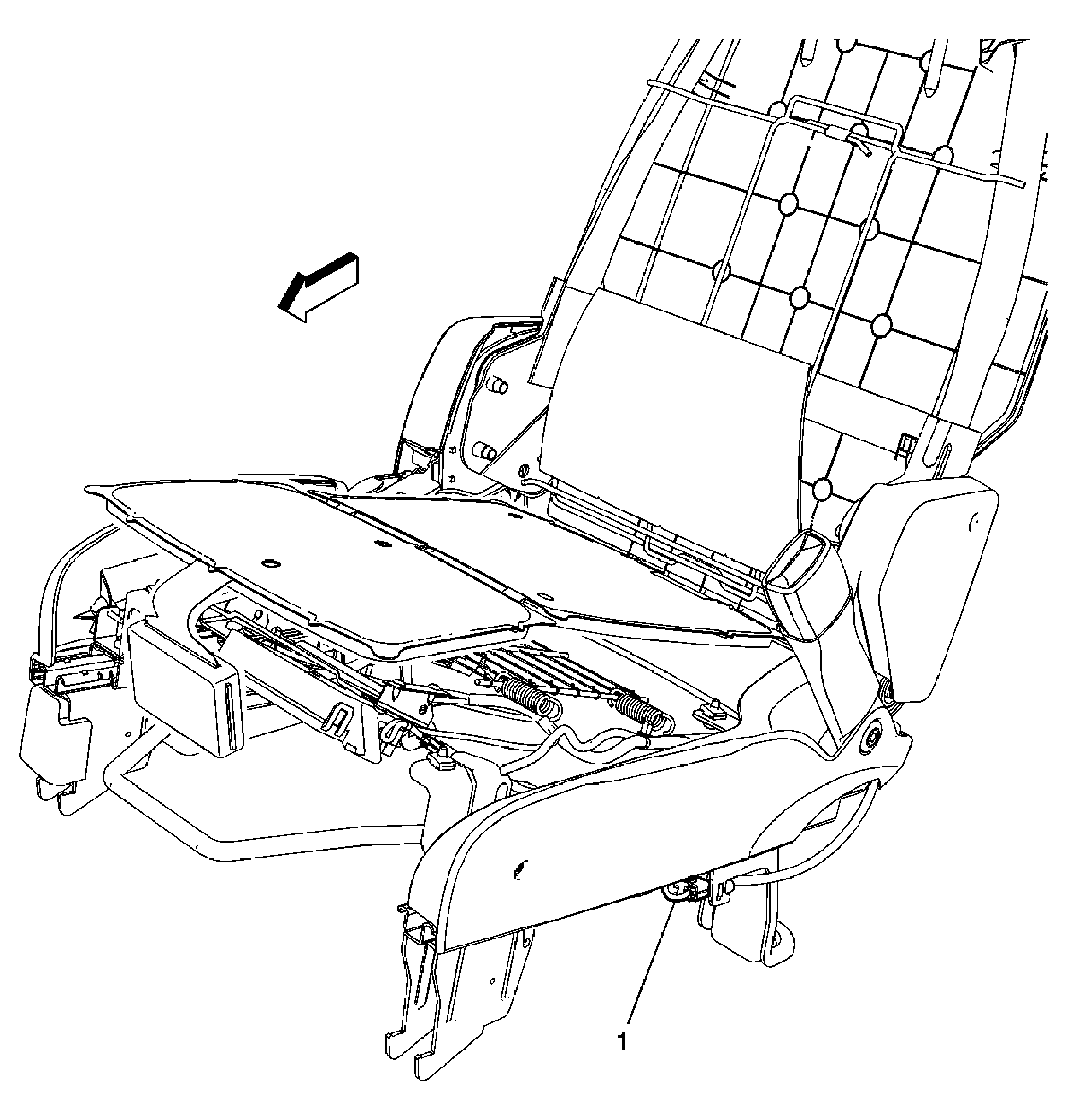

Fig 21: Passenger Seat (Manual)
GM2022195Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X309

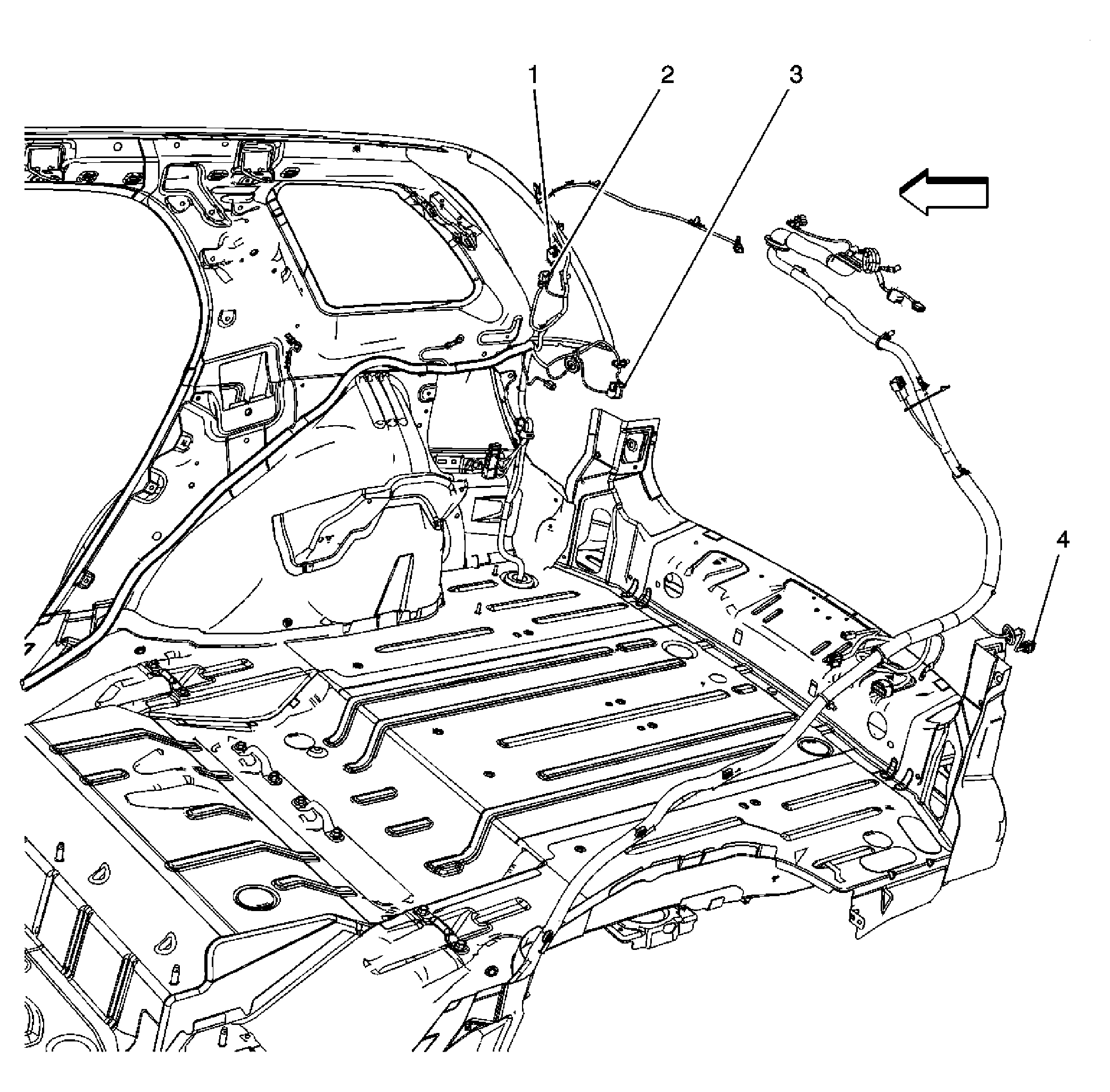

Fig 22: Body Harness - Rear Compartment
GM2022252Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X415
2 X422 (U3U/UE1)
3 X404
4 X403
