Instrument Cluster Schematics

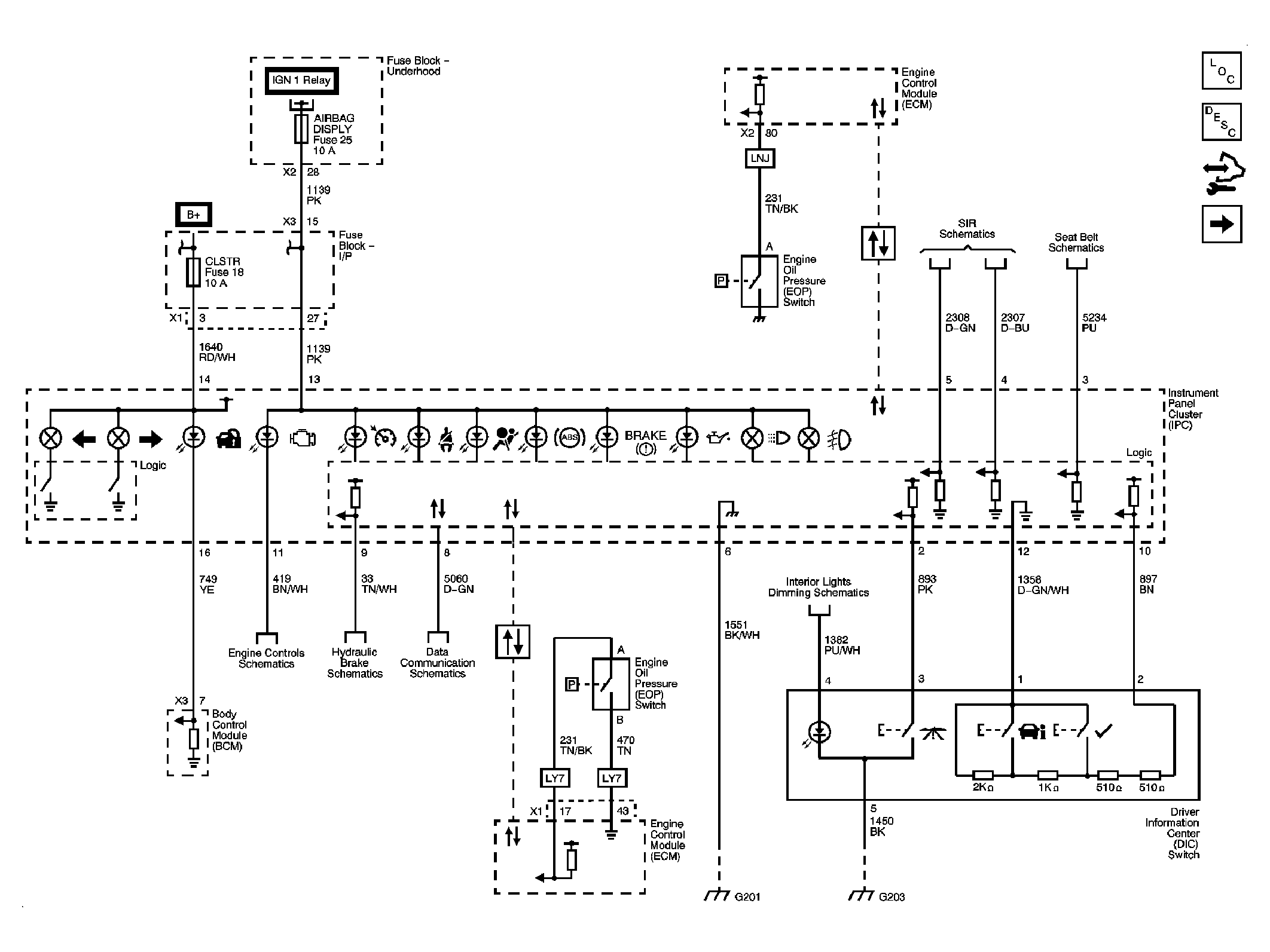

Fig 1: Indicators Schematic
Courtesy of GENERAL MOTORS CORP.

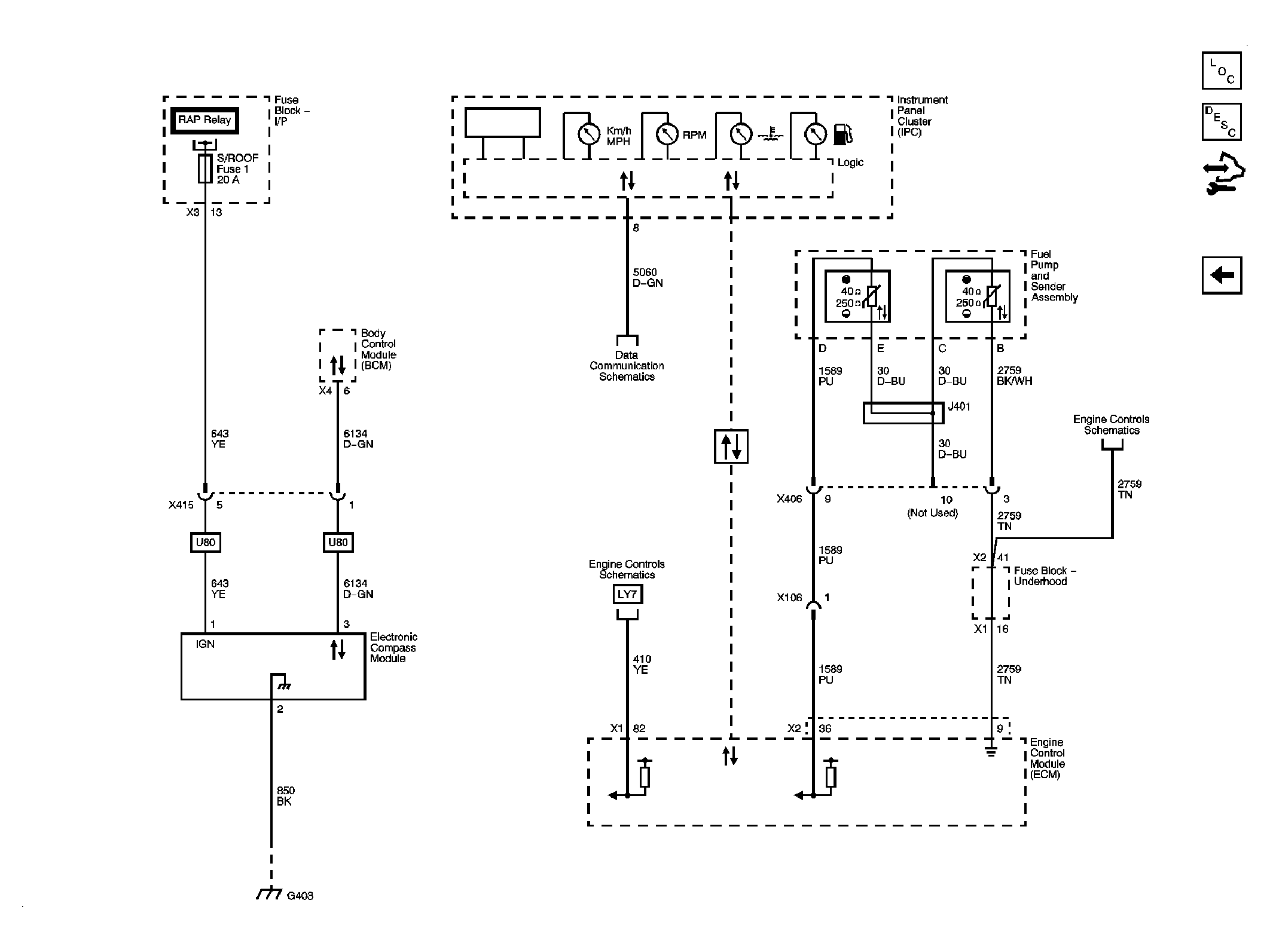

Fig 2: Gages Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
