Cylinder Head Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

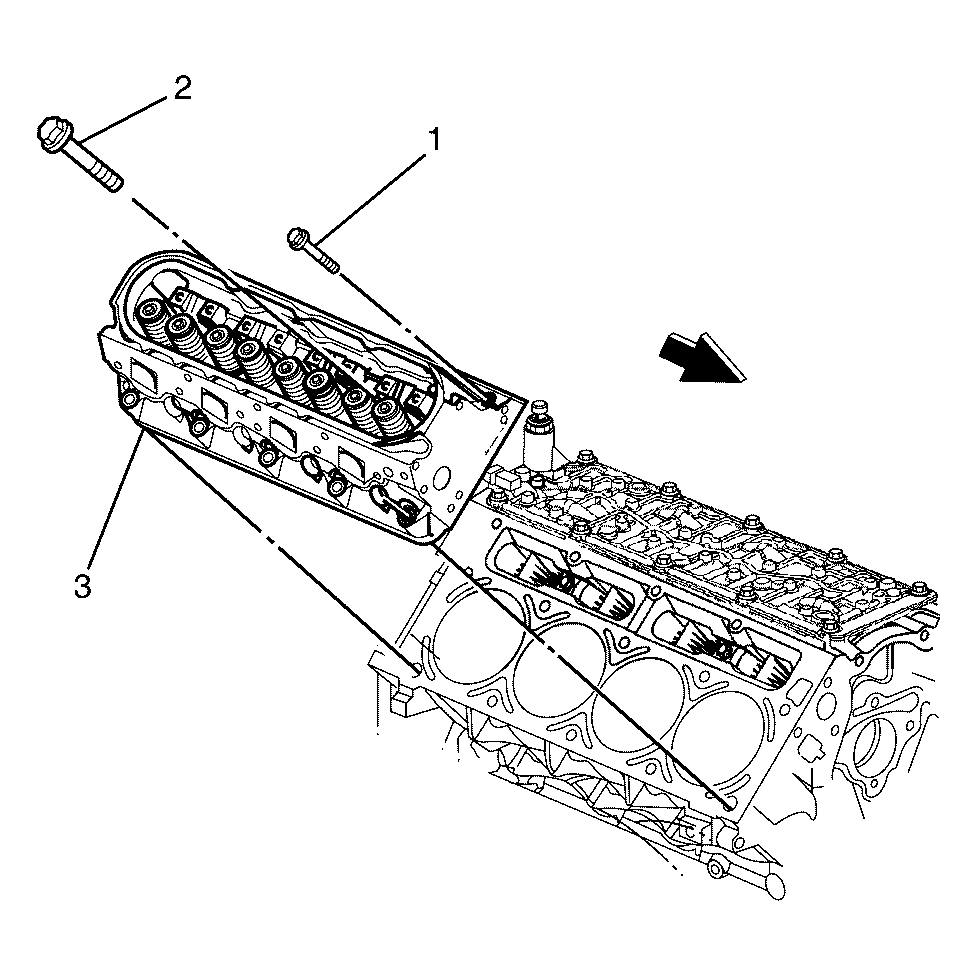

    Fig 1: Identifying Cylinder Head & Bolts (Right Side)
    GM2041101Courtesy of GENERAL MOTORS CORP.
    NOTE: The cylinder head bolts are torque to yield bolts and are single use only fasteners.
  1. Remove and discard the cylinder head bolts (1) 10 places, (2) 5 places.

    Discard the bolts.

    2. CAUTION: After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.
  2. Remove the cylinder head (3).

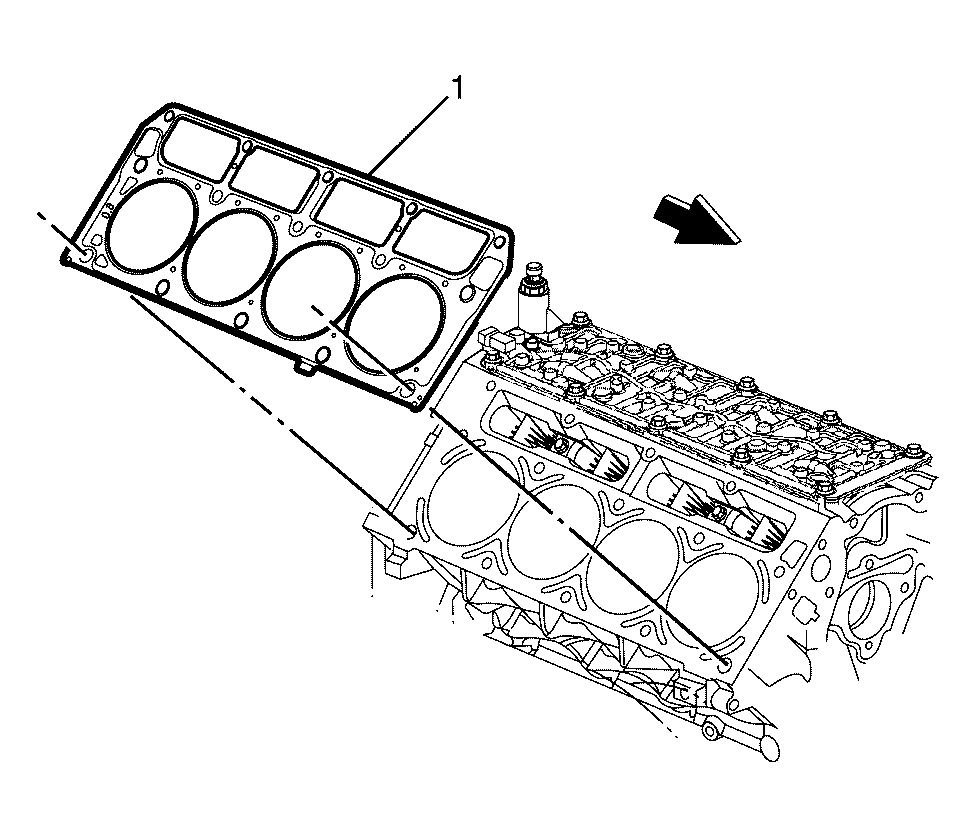

    3. Fig 2: Identifying Cylinder Head Gasket (Right Side)
    GM2041102Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head gasket (1).

    Discard the gasket.

  4. Clean and inspect the cylinder head and the cylinder block sealing surfaces. Refer to Cylinder Head Cleaning and Inspection  and Engine Block Cleaning and Inspection .
  5. If necessary, disassemble the cylinder head. Refer to Cylinder Head Disassemble .
