Cylinder Head Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

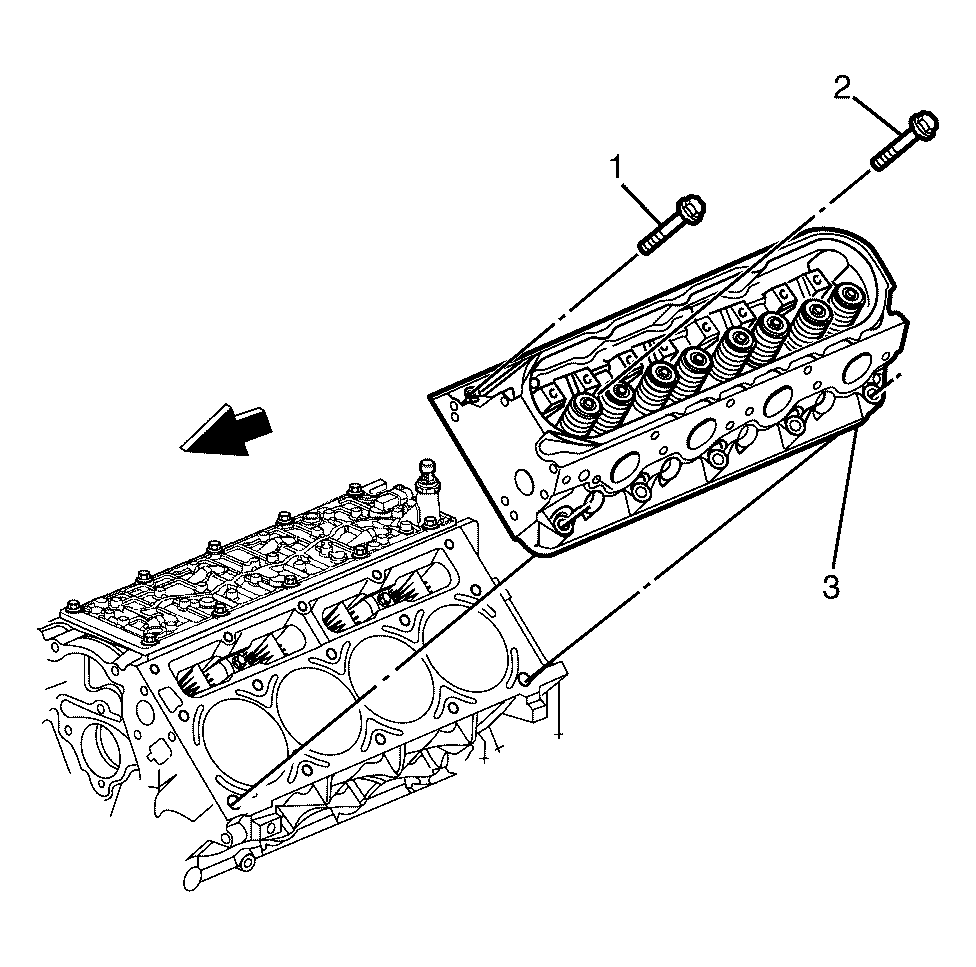

    Fig 1: Identifying Cylinder Head & Bolts (Left Side)
    GM2041098Courtesy of GENERAL MOTORS CORP.
    NOTE: The cylinder head bolts are torque to yield bolts and are single use only fasteners.
  1. Remove and discard the cylinder head bolts (1) 10 places and (2) 5 places.

    Discard the bolts.

    2. CAUTION: After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.
  2. Remove the cylinder head (3).

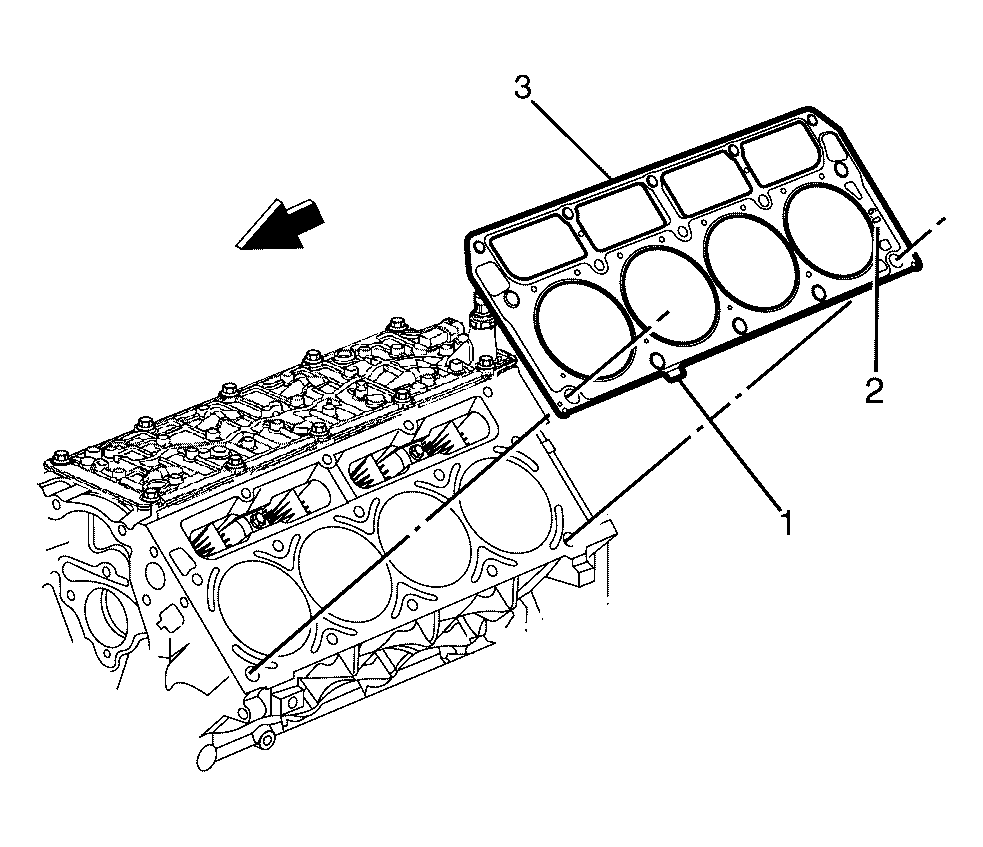

    3. Fig 2: Identifying Cylinder Head Gasket (Left Side)
    GM2041096Courtesy of GENERAL MOTORS CORP.
    NOTE: Cylinder head gaskets must be discarded whenever the cylinder head has been removed from the cylinder block.
  3. Remove the cylinder head gasket (1).

    Discard the gasket.

  4. Clean and inspect the cylinder head and the cylinder block sealing surfaces. Refer to Cylinder Head Cleaning and Inspection  and Engine Block Cleaning and Inspection .
  5. If necessary, disassemble the cylinder head. Refer to Cylinder Head Disassemble .
