Ground Distribution Schematics

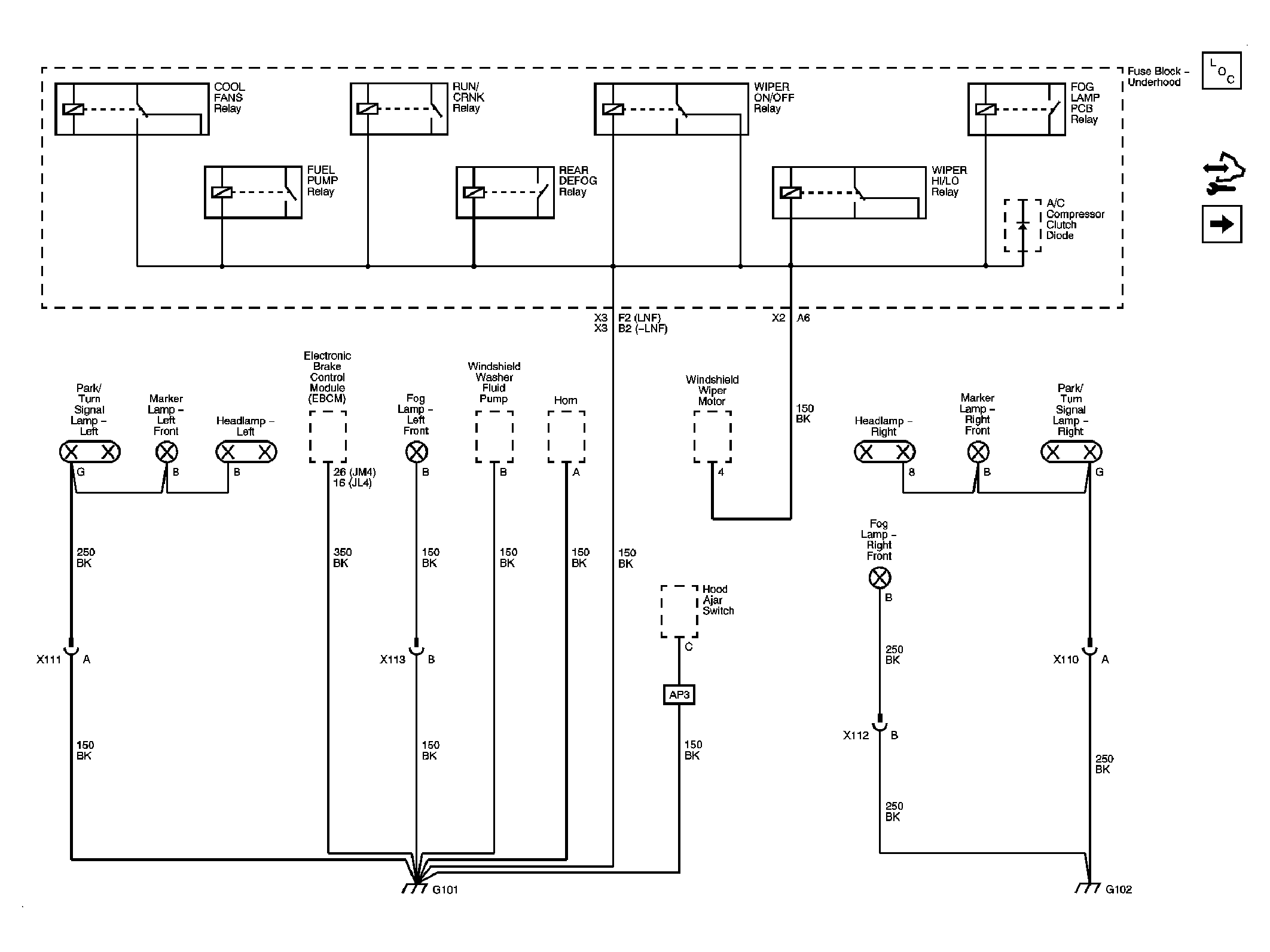

Fig 1: Ground Distribution Schematic (G101, G102)

Courtesy of GENERAL MOTORS CORP.

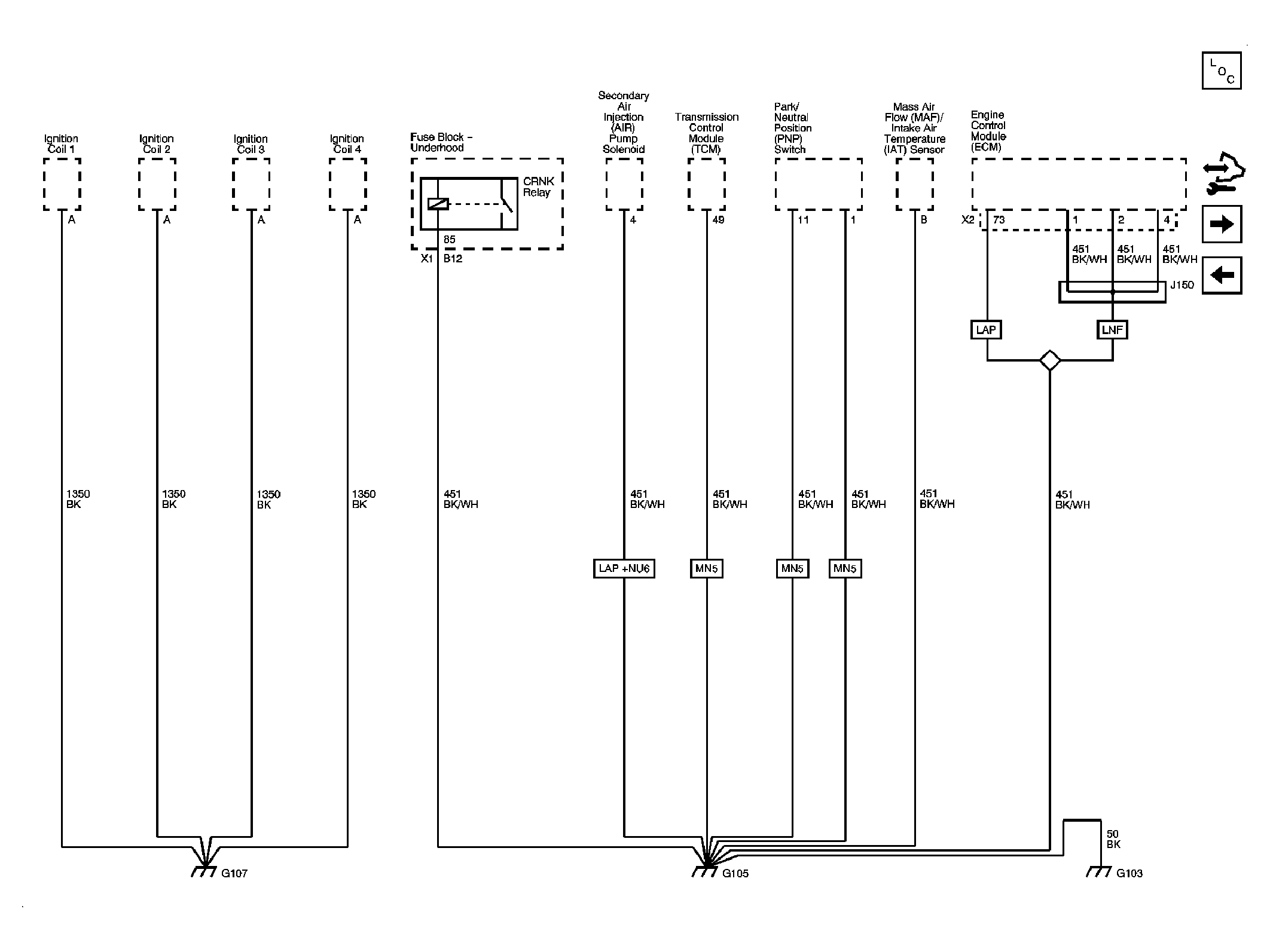

Fig 2: Ground Distribution Schematic (G103, G105, G107)

Courtesy of GENERAL MOTORS CORP.

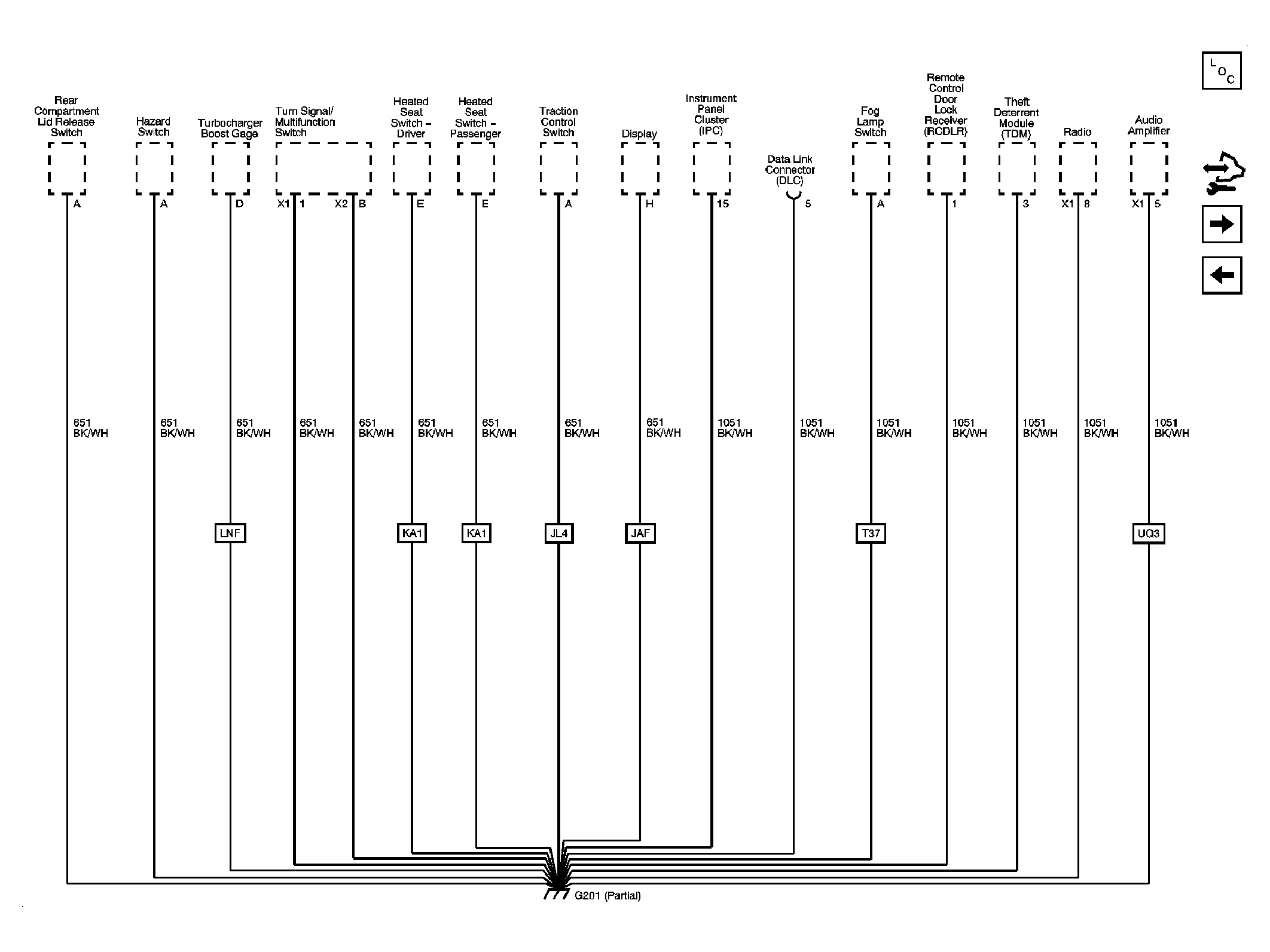

Fig 3: Ground Distribution Schematic (G201 (1 of 2))

Courtesy of GENERAL MOTORS CORP.

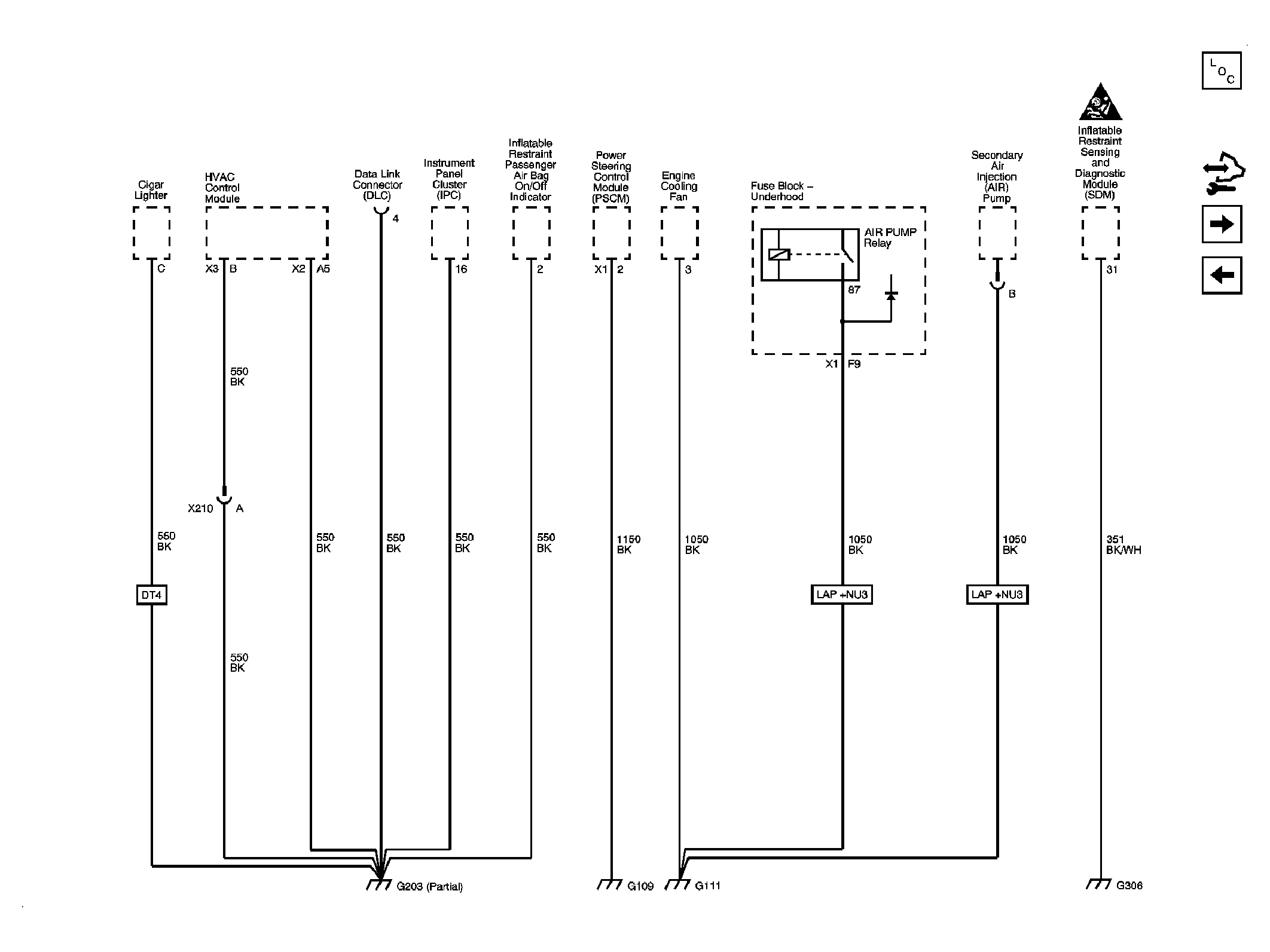

Fig 4: Ground Distribution Schematic (G109, G111, G203, G306)

Courtesy of GENERAL MOTORS CORP.

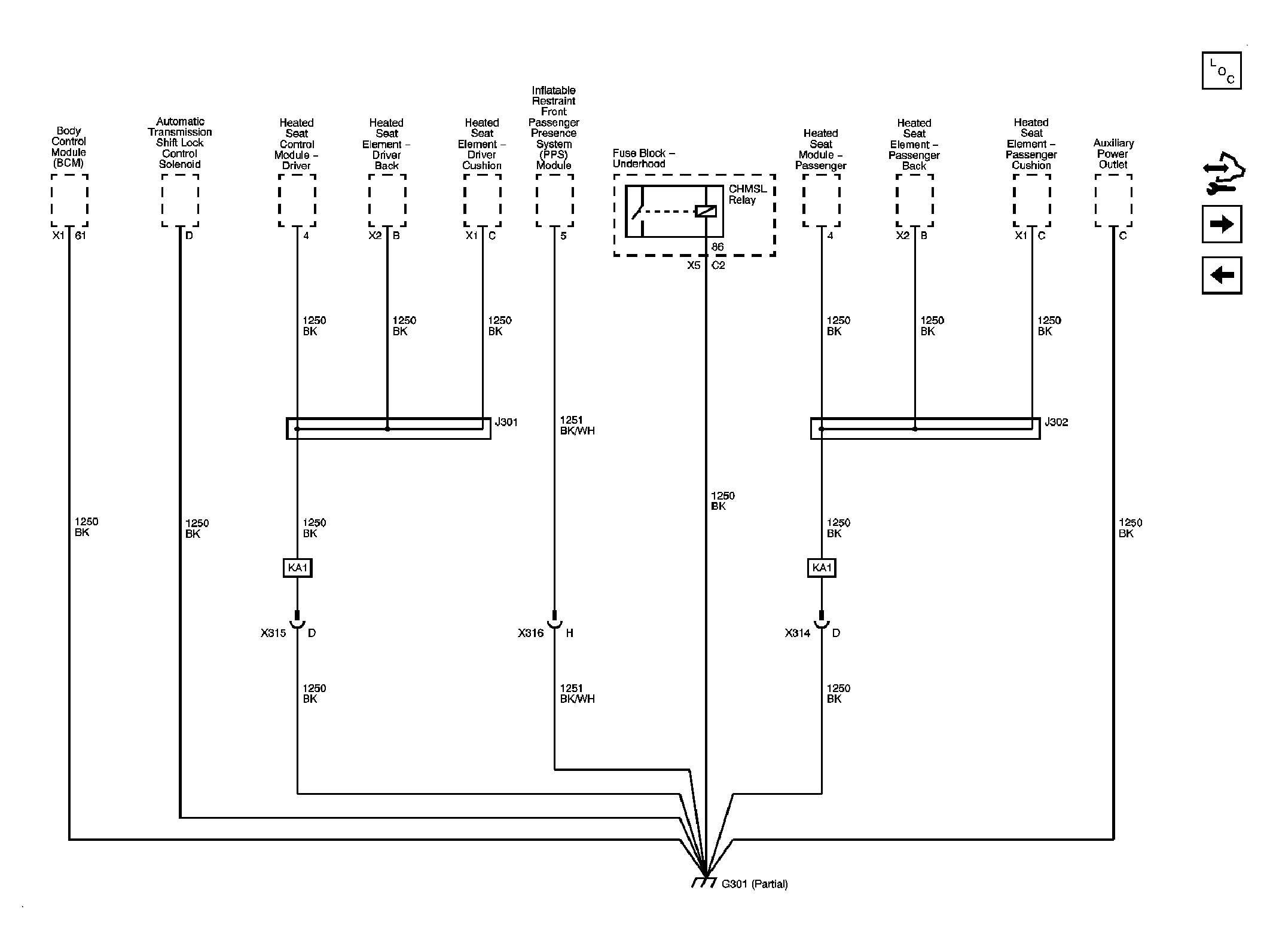

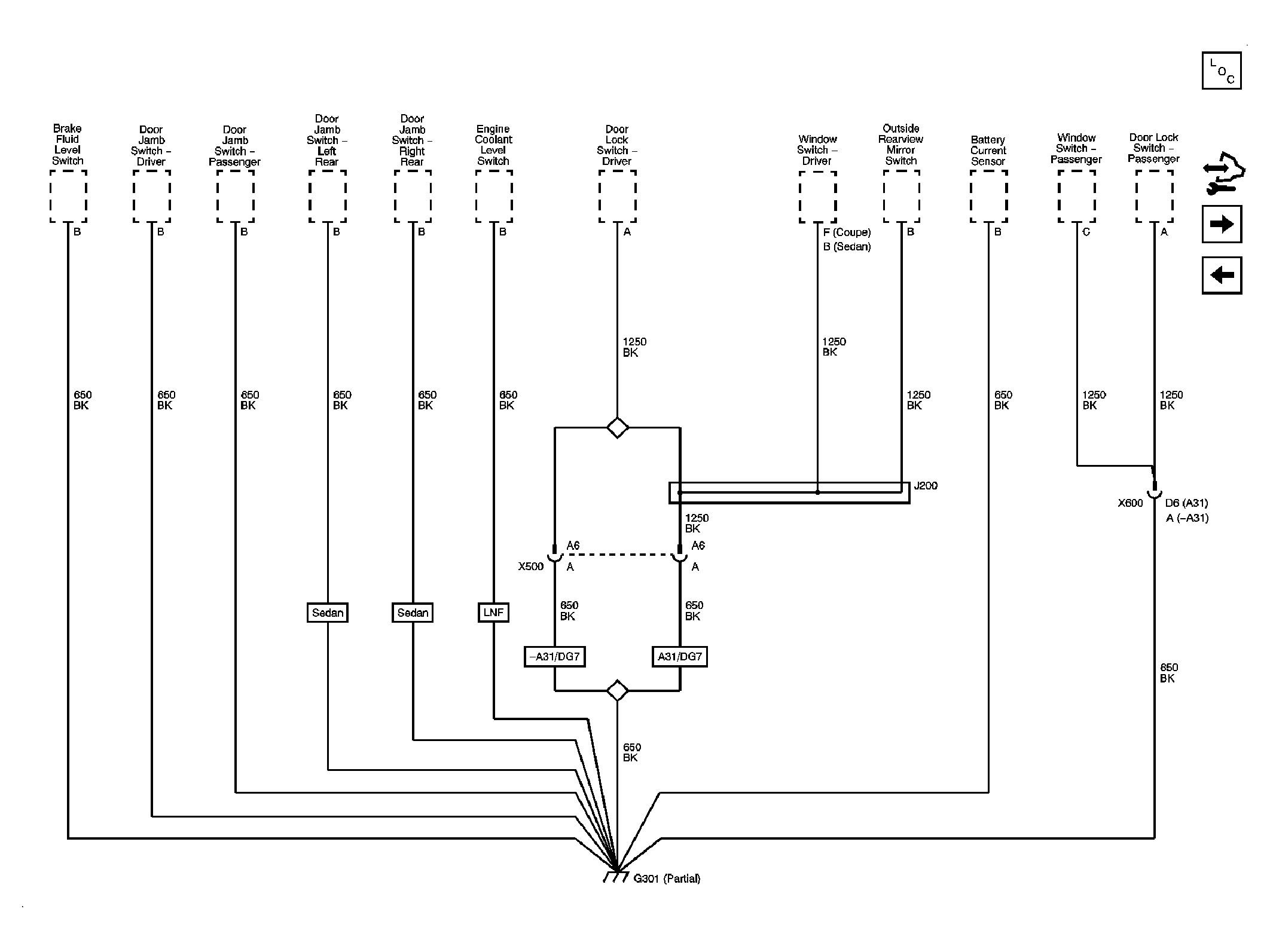

Fig 5: Ground Distribution Schematic (G301 (1 of 2))

Courtesy of GENERAL MOTORS CORP.

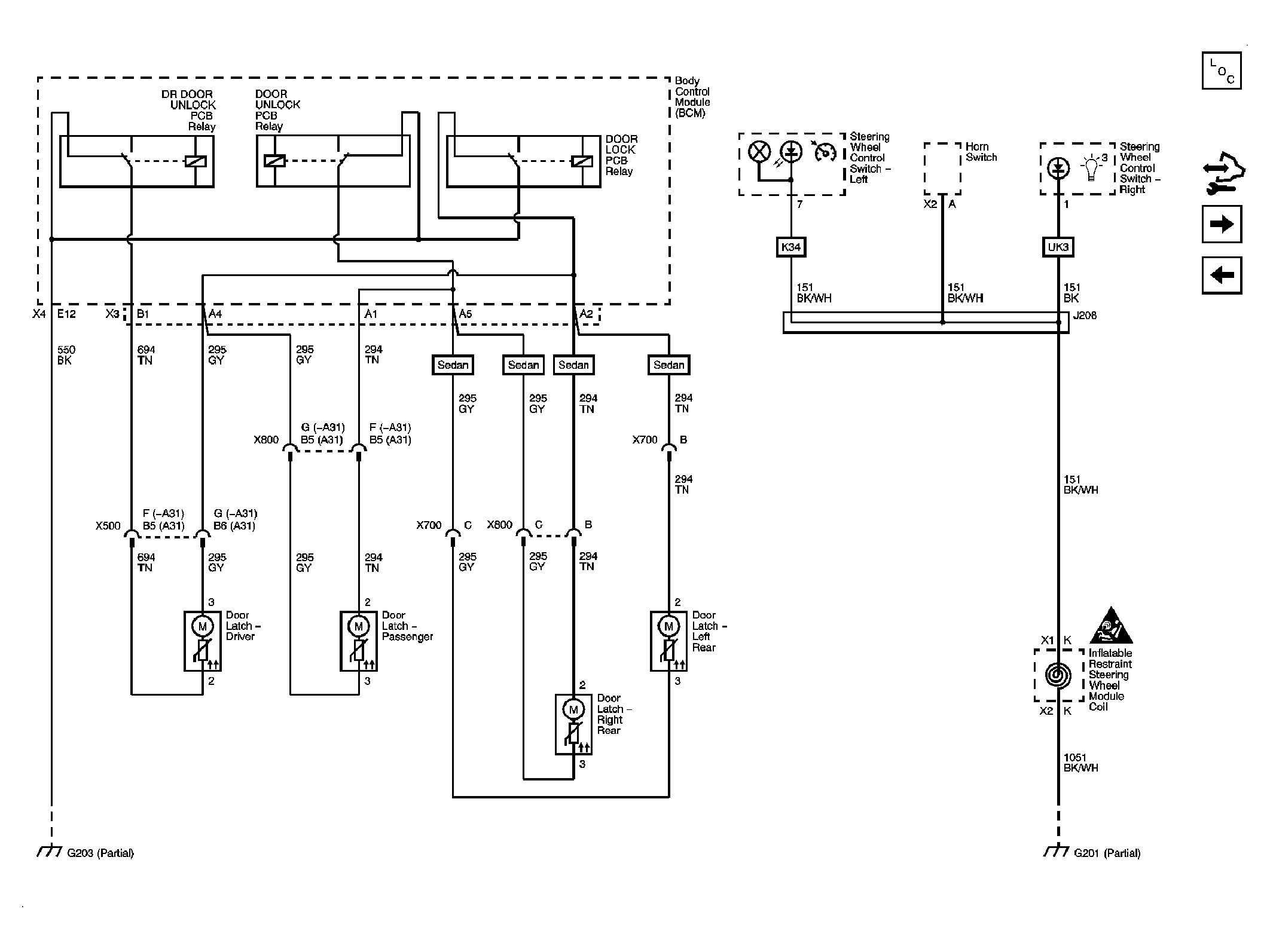

Fig 6: Ground Distribution Schematic (G201 (2 of 2))

Courtesy of GENERAL MOTORS CORP.

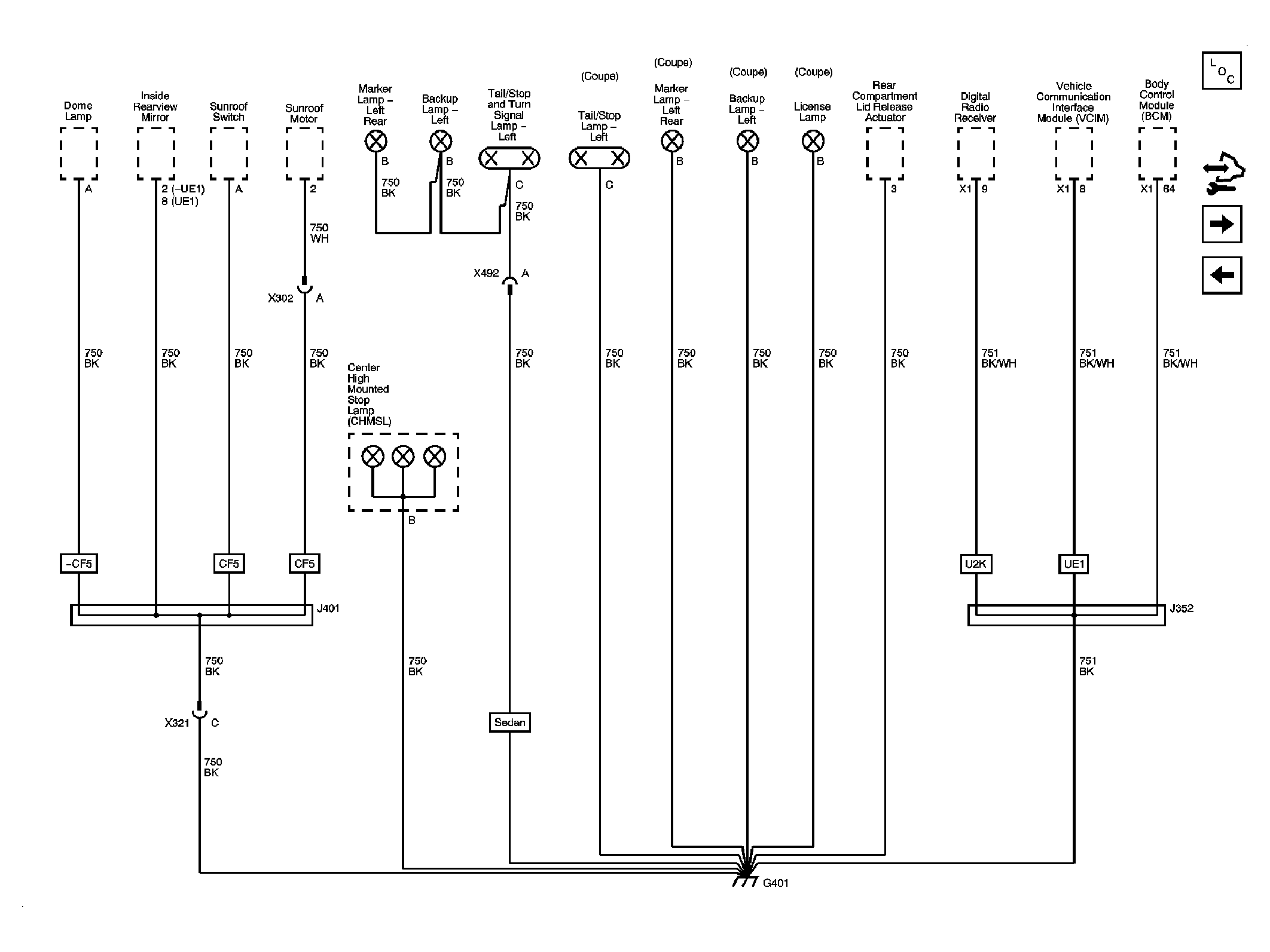

Fig 7: Ground Distribution Schematic (G301 (2 of 2))

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ground Distribution Schematic (G401)

Courtesy of GENERAL MOTORS CORP.

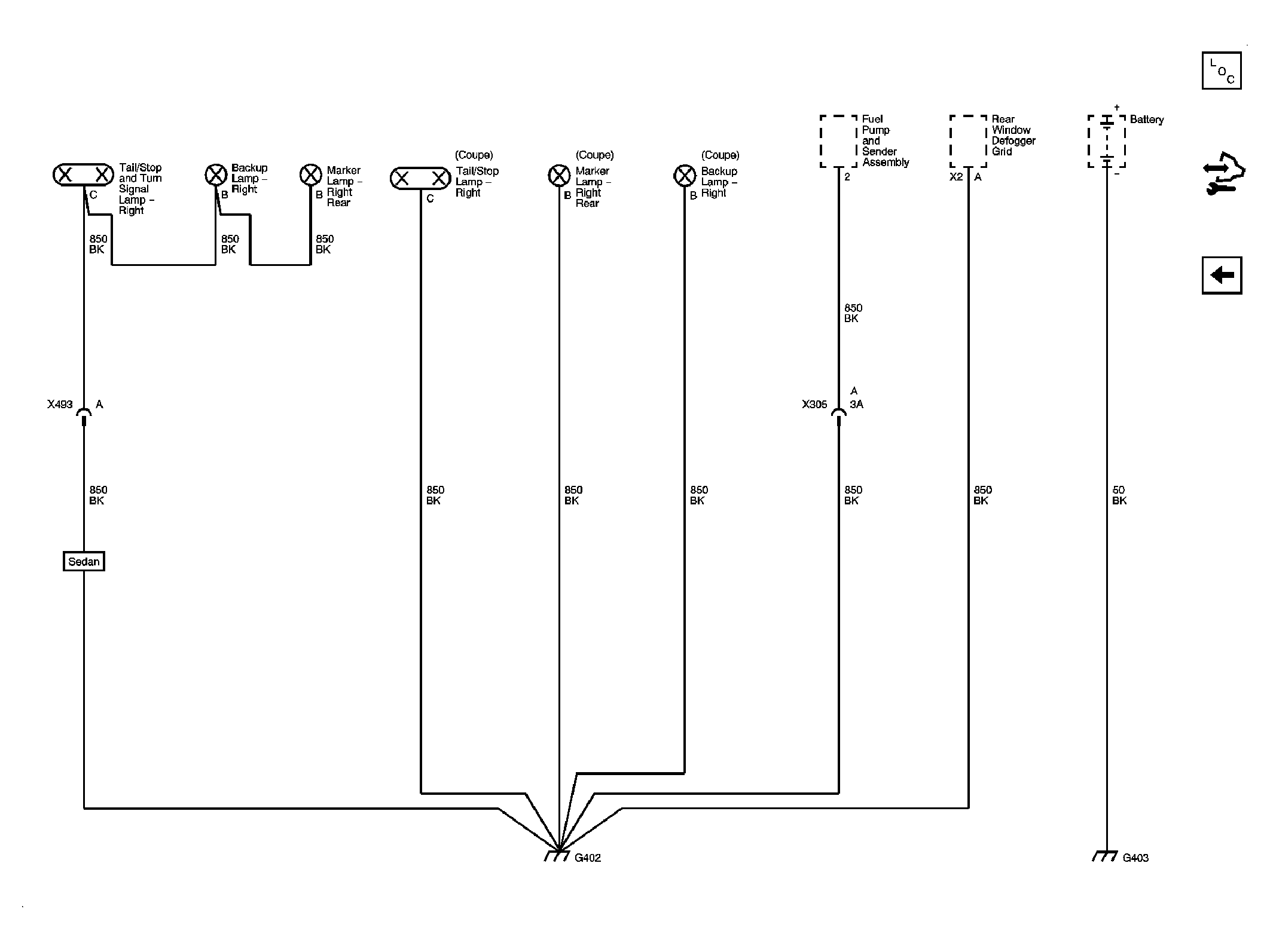

Fig 9: Ground Distribution Schematic (G402, G403)

Courtesy of GENERAL MOTORS CORP.
