Pontiac
>>
2009
>>
G5 Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Instrument Panel System Displays & Gauges
>>
Schematic and Routing Diagrams
>>
Instrument Cluster Schematics
Instrument Cluster Schematics

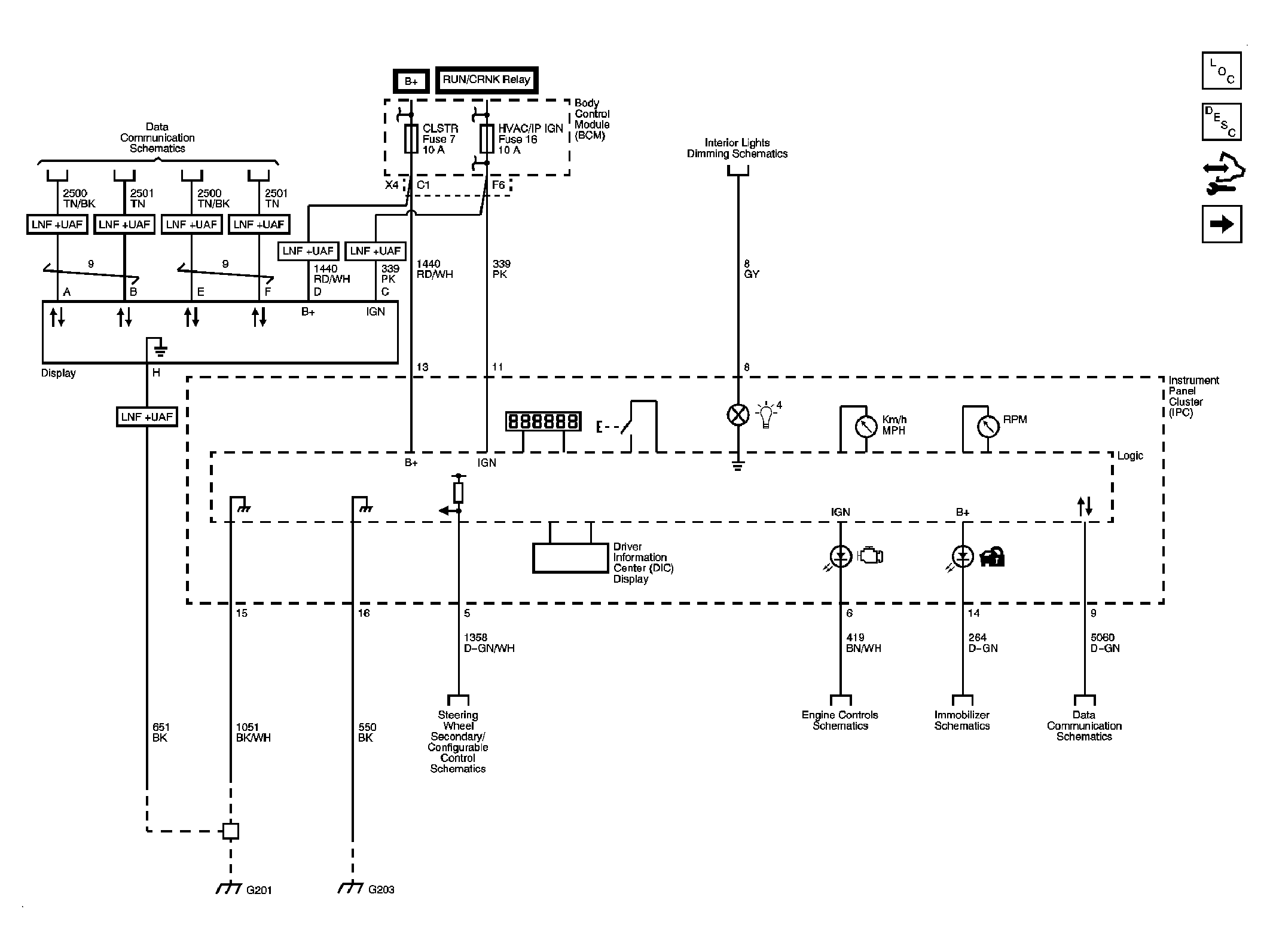

Fig 1: Power, Ground, MIL Schematic
Courtesy of GENERAL MOTORS CORP.

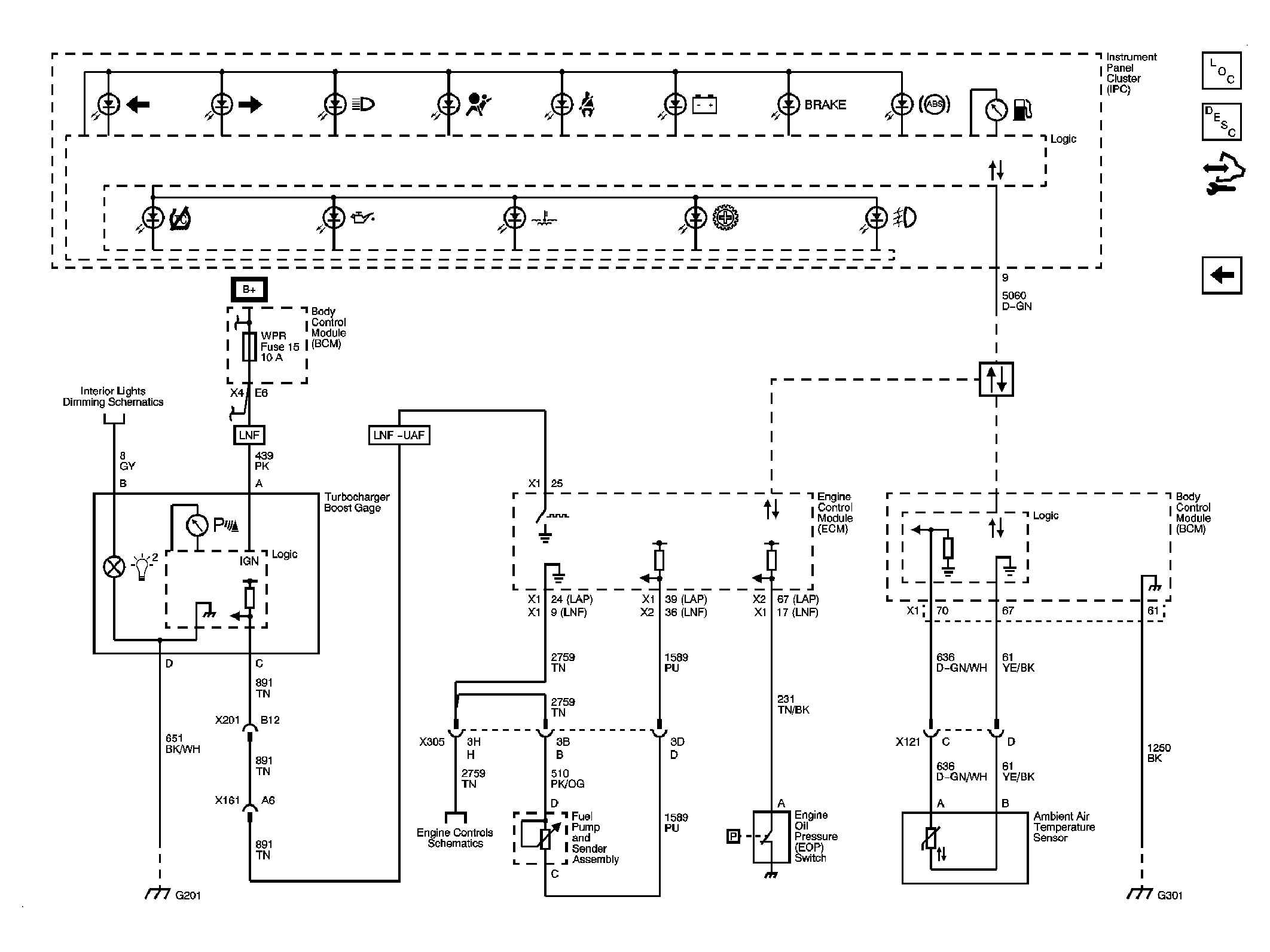

Fig 2: Sensors, Indicators Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
