Inspection Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

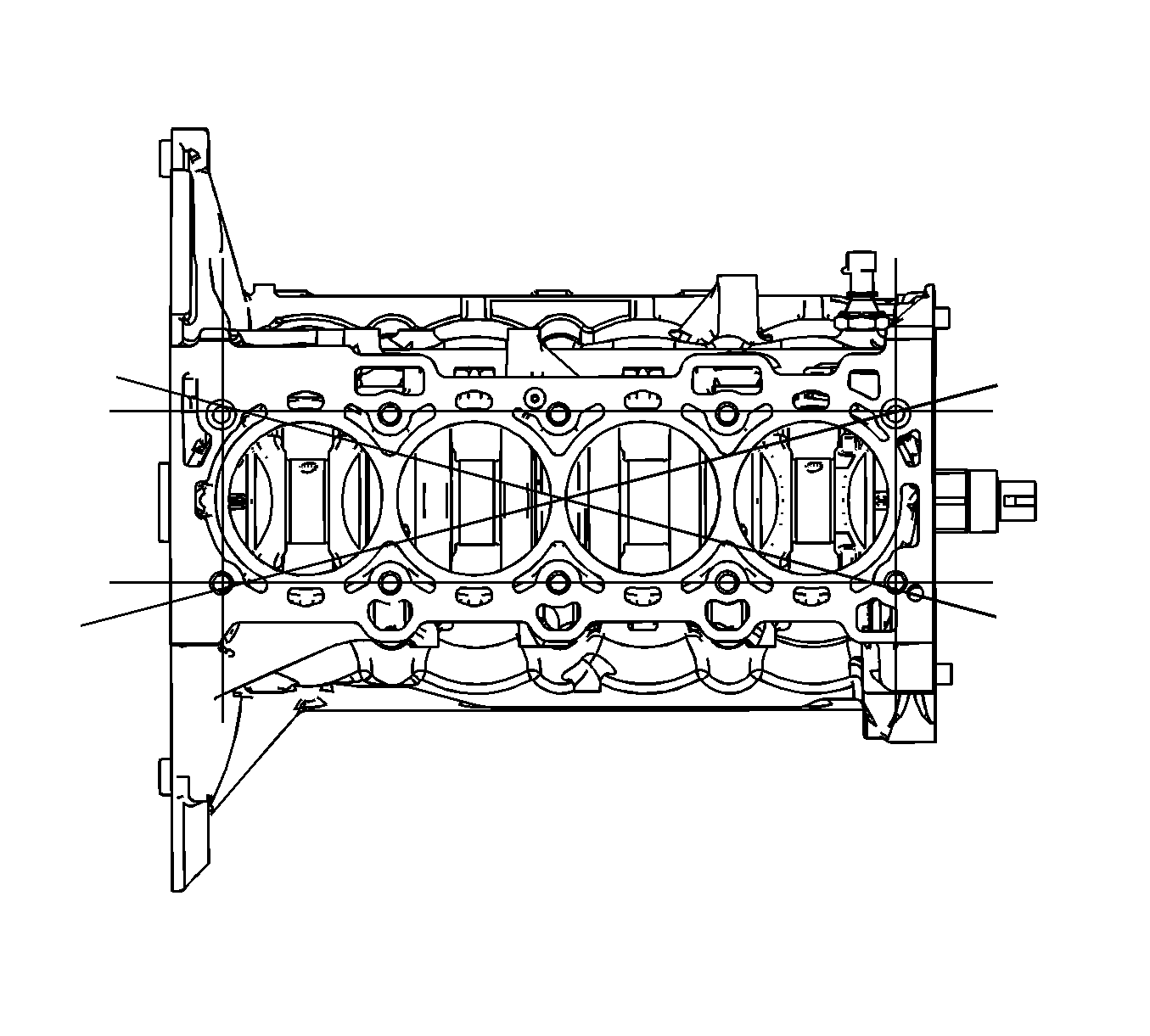

Fig 1: Block Flatness

Courtesy of GENERAL MOTORS CORP.

Measure the block flatness. If it is out of specification, replace it. Refer to Engine Mechanical Specifications .

Fig 2: Measuring Crankshaft Bending (Out-Of-Round)

Courtesy of GENERAL MOTORS CORP.

Measure the crankshaft bending (1) (out-of-round). If it is out of specification, replace it. Refer to Engine Mechanical Specifications .

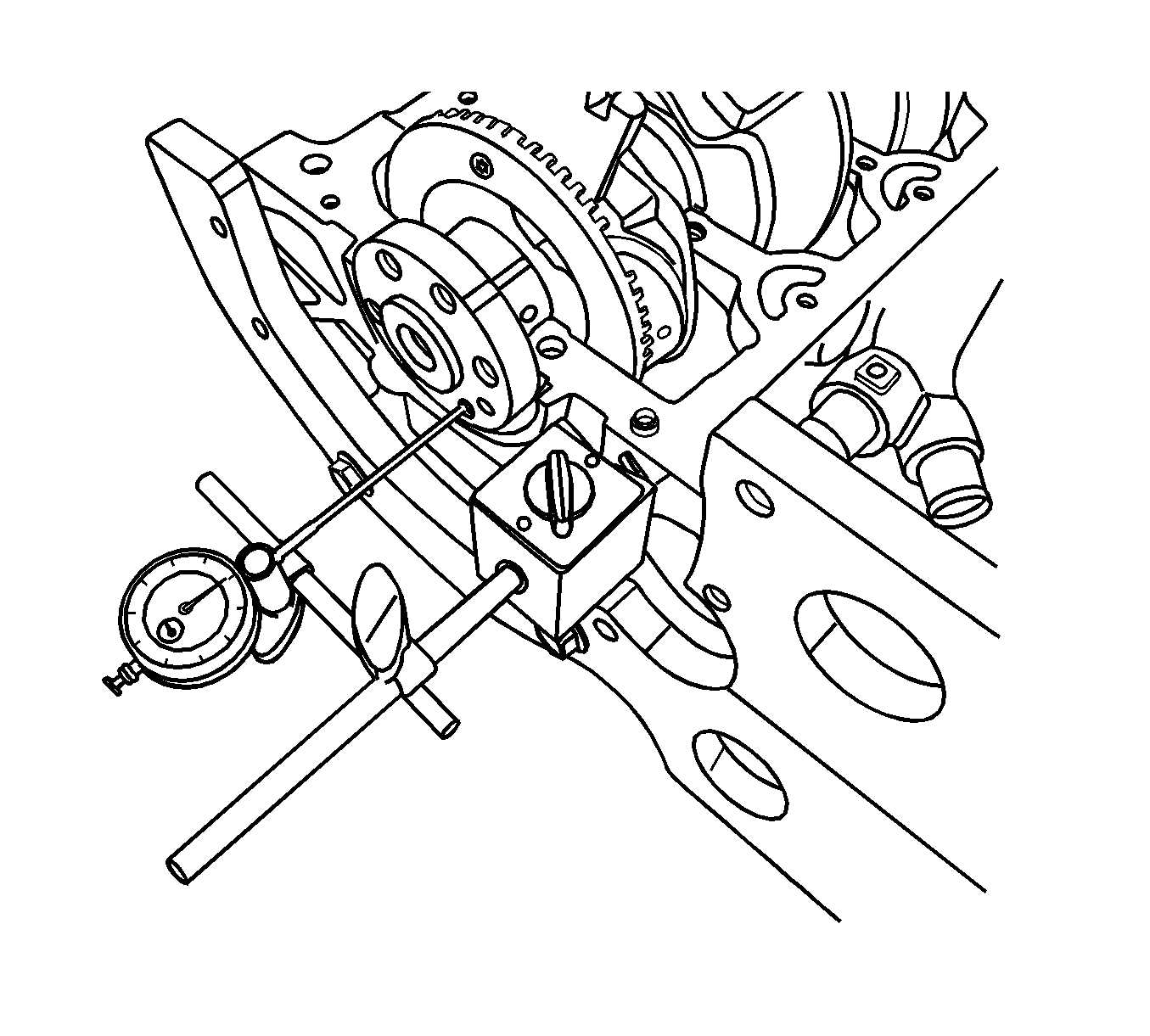

Fig 3: Measuring Crankshaft End Play

Courtesy of GENERAL MOTORS CORP.

Measure the crankshaft end play. If it is out of specification, replace it. Refer to Engine Mechanical Specifications .

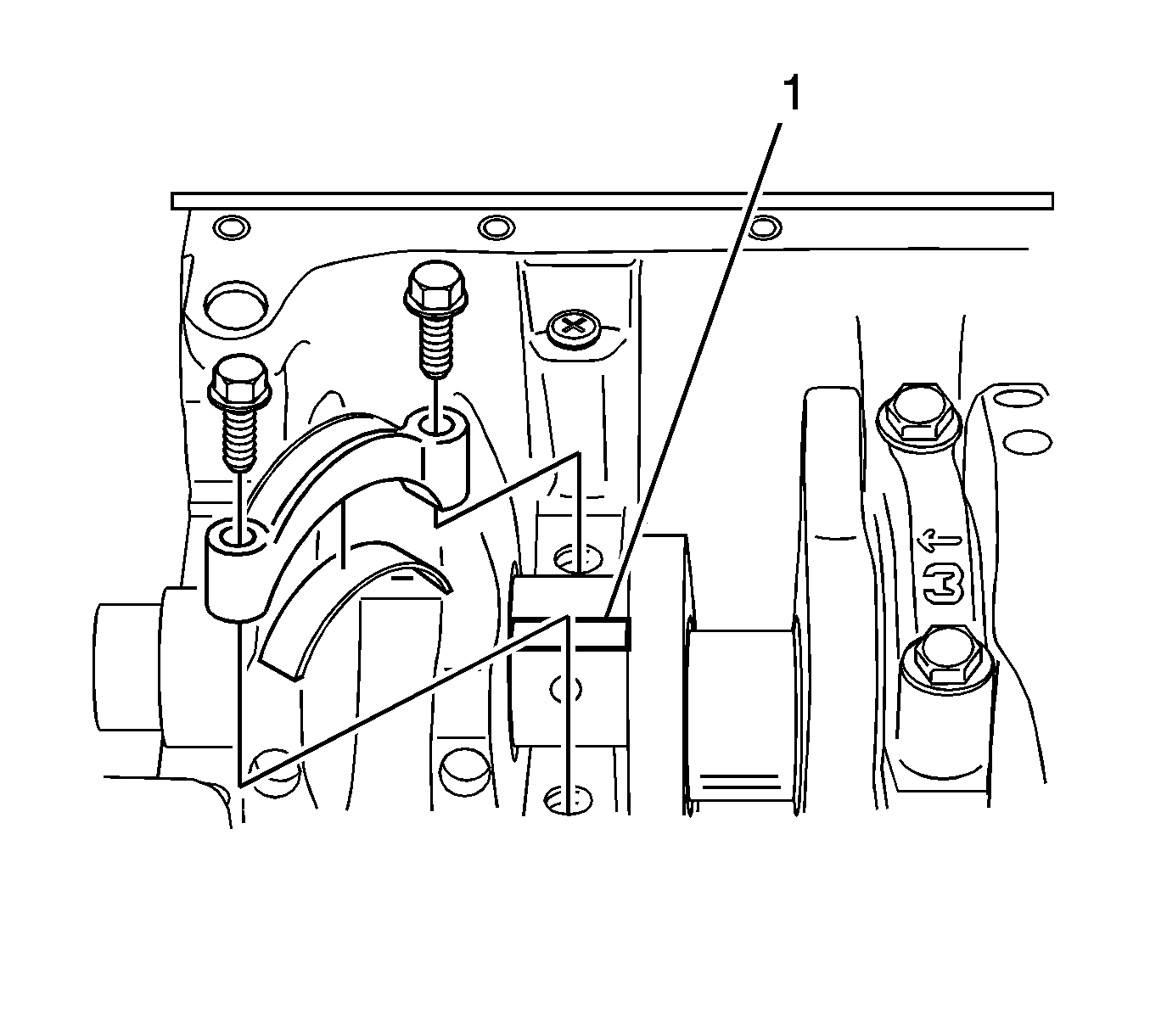

Fig 4: Plastic Gauge On Crankshaft Bearing

Courtesy of GENERAL MOTORS CORP.

Cut the plastic gauge (1) the same length of the bearing width and put it on the crankshaft bearing. It should be parallel with the crankshaft.
Install the crankshaft journal bearing and cap.
Remove the connecting rod bearing and cap again.
Measure the clearance of the connecting rod bearing oil. If it is out of specification, replace it. Refer to Engine Mechanical Specifications .
