Fuel Pressure Gauge Installation and Removal
WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
DW-100-763: Fuel Pressure Gauge
- Relieve the fuel pressure. Refer to Fuel Pressure Relief .

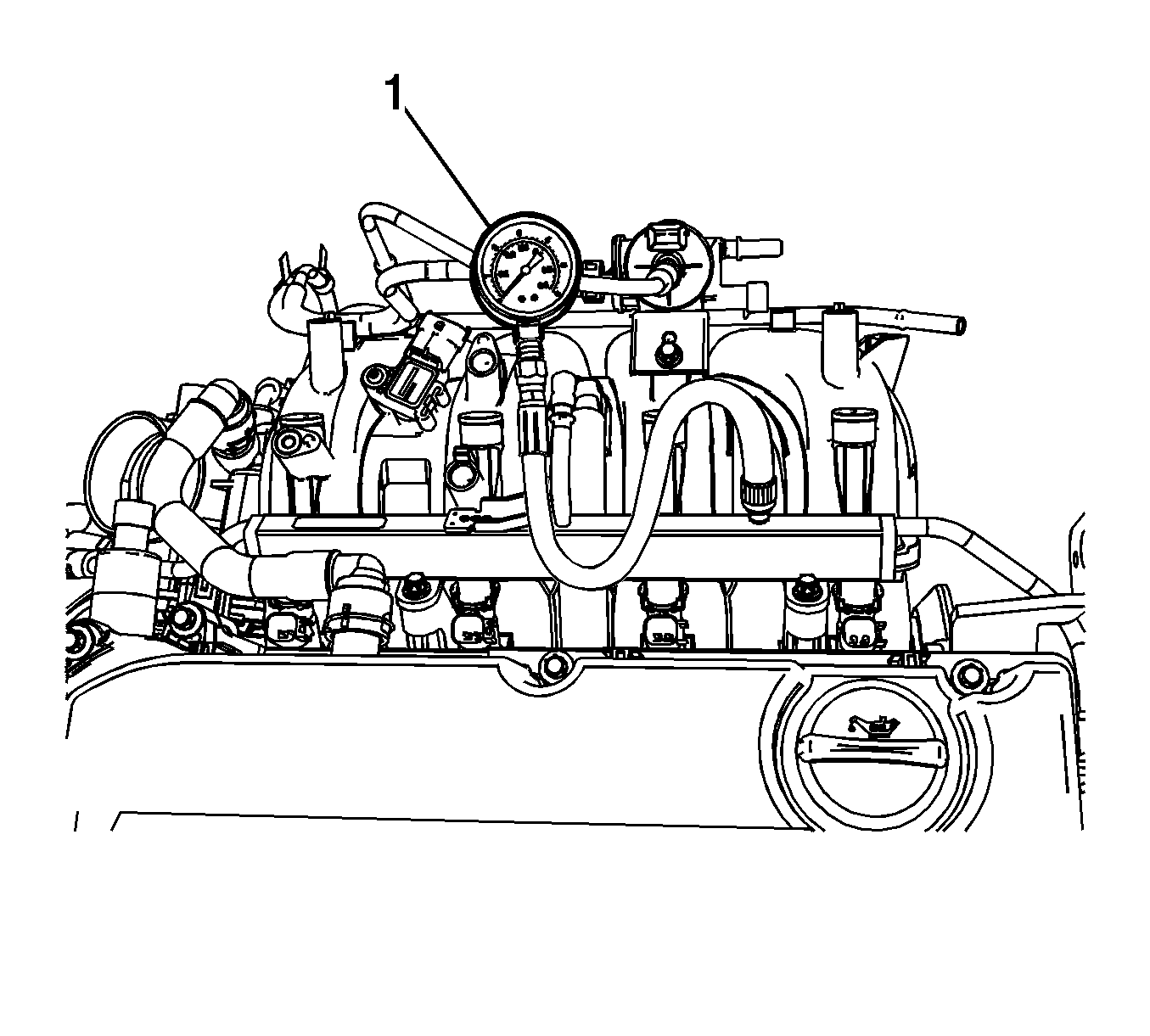

- Install the DW-100-763: gauge (1).
- Measure the fuel pressure.
Specification: Fuel Pressure Specification: 380 kPa (Battery Voltage: 13.2V)
CAUTION:
Refer to Fuel Pressure Caution
.
