Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine accessory drive belt. Refer to Drive Belt Replacement .

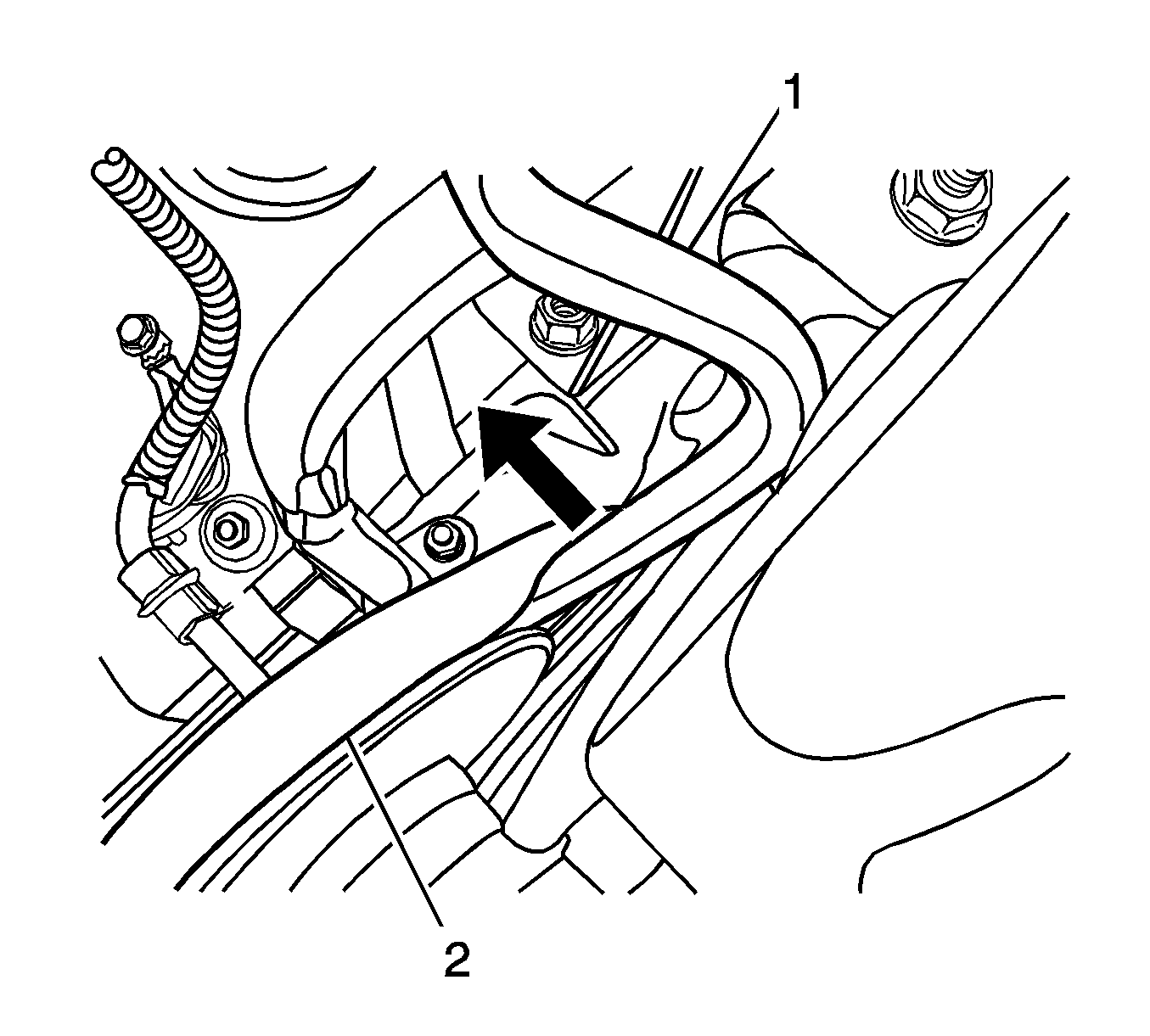

    2. Fig 1: Long Bar & Drive Belt
    GM2198626Courtesy of GENERAL MOTORS CORP.
  2. Remove the RH headlamp assembly. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) .
  3. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
  4. Place a long bar (1) in the opening between engine and pump drive belt.
    5. NOTE: This will provide a guide function for the drive belt removal.
  5. Using the bar (1) push the drive belt (2) into the opposite side of engine.

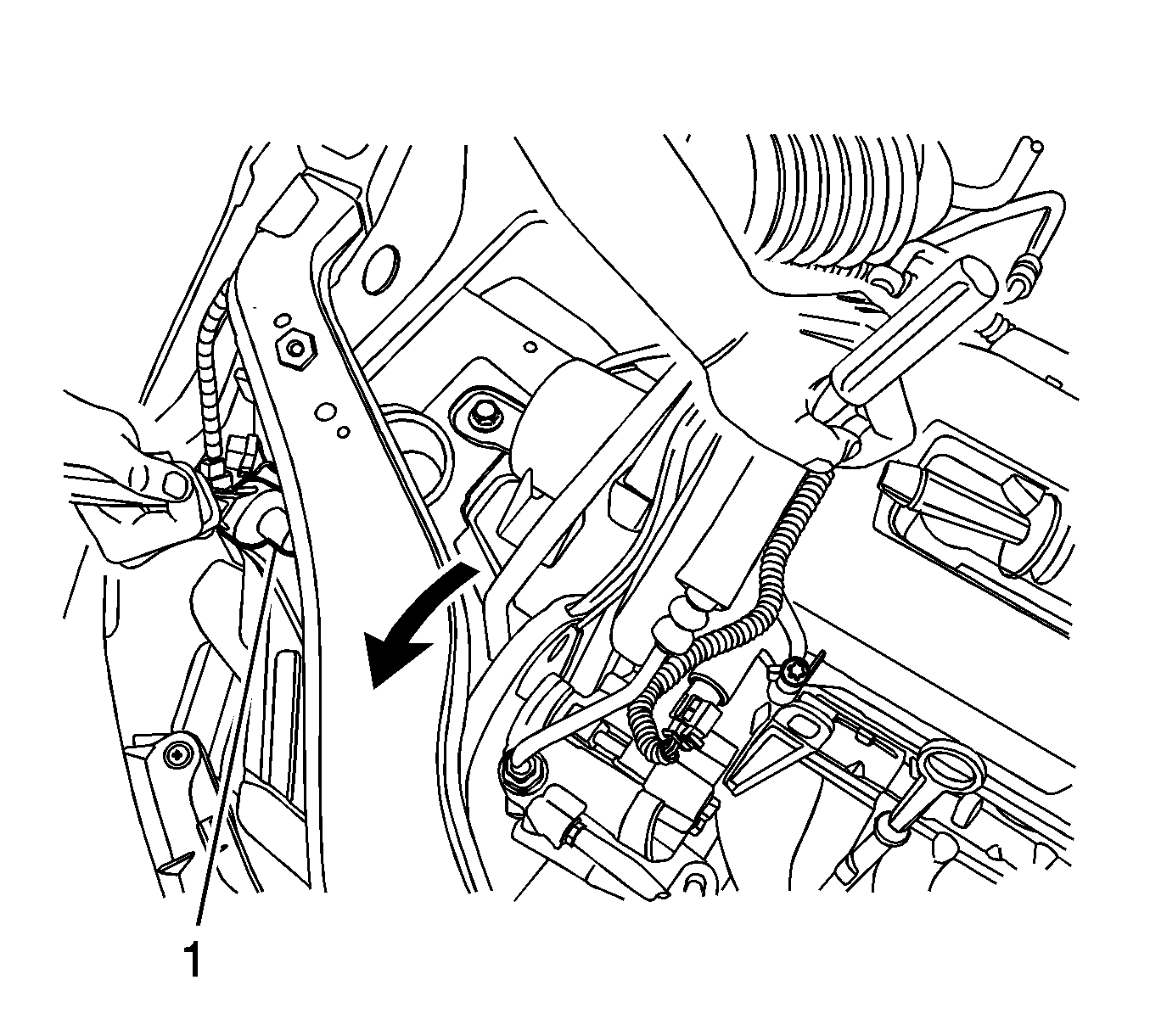

    6. Fig 2: Rotating Pulley
    GM2198627Courtesy of GENERAL MOTORS CORP.
    NOTE: Outside surface of the belt should face toward the engine.
  6. Rotate the pulley using 3/8 inch hex bit socket (1) in the power steering pump pulley shaft hole.
  7. Rotate the power steering pump pulley clockwise while pushing the drive belt until the belt is fully removed from the pulley.
