Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

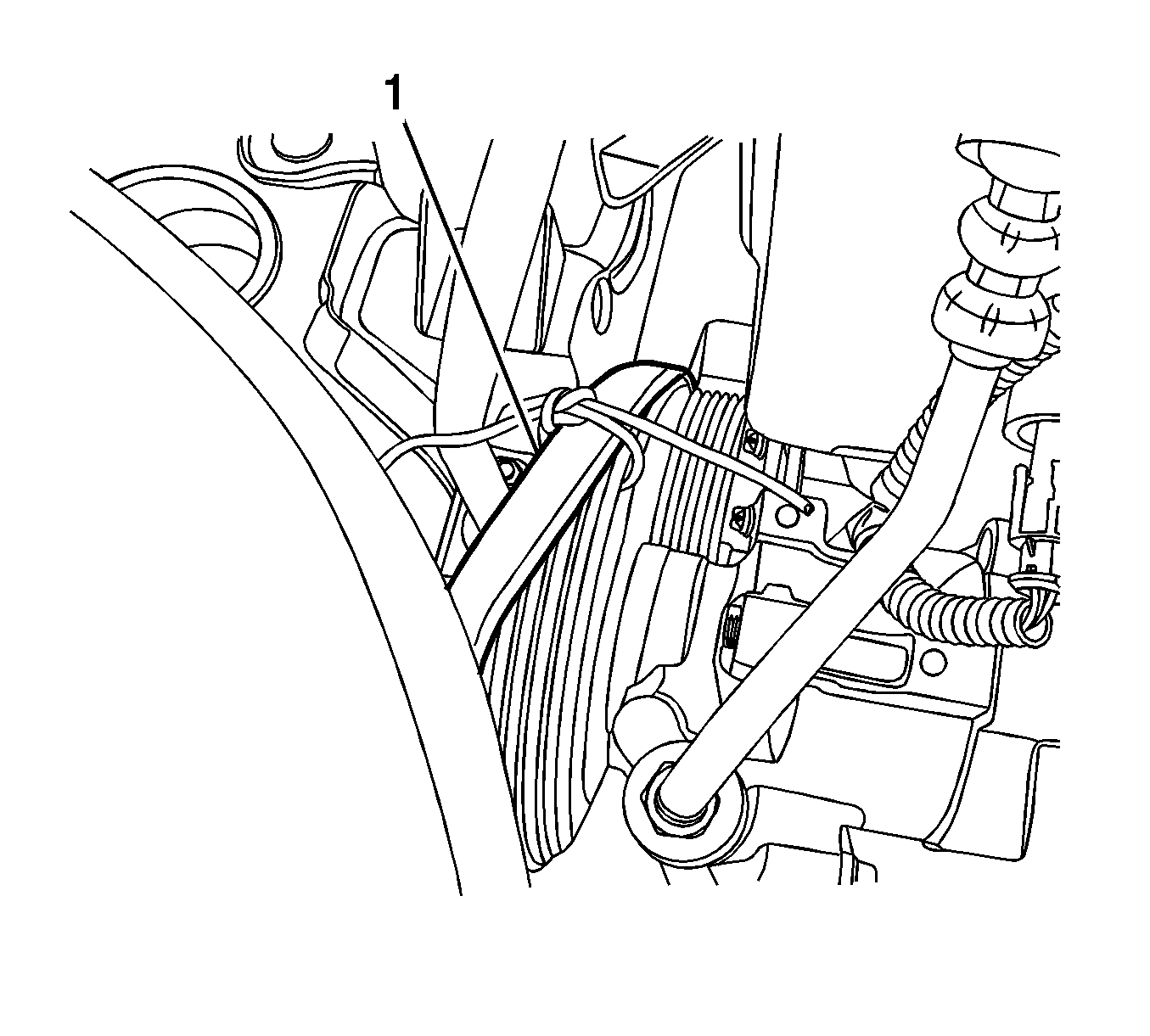

    Fig 1: Tieing Drive Belt To Pump Pulley
    GM2198629Courtesy of GENERAL MOTORS CORP.
  1. Route the power steering pump drive belt (1).
  2. Align the drive belt on the water pump pulley first.
  3. Position one of the three pulley holes on top point.

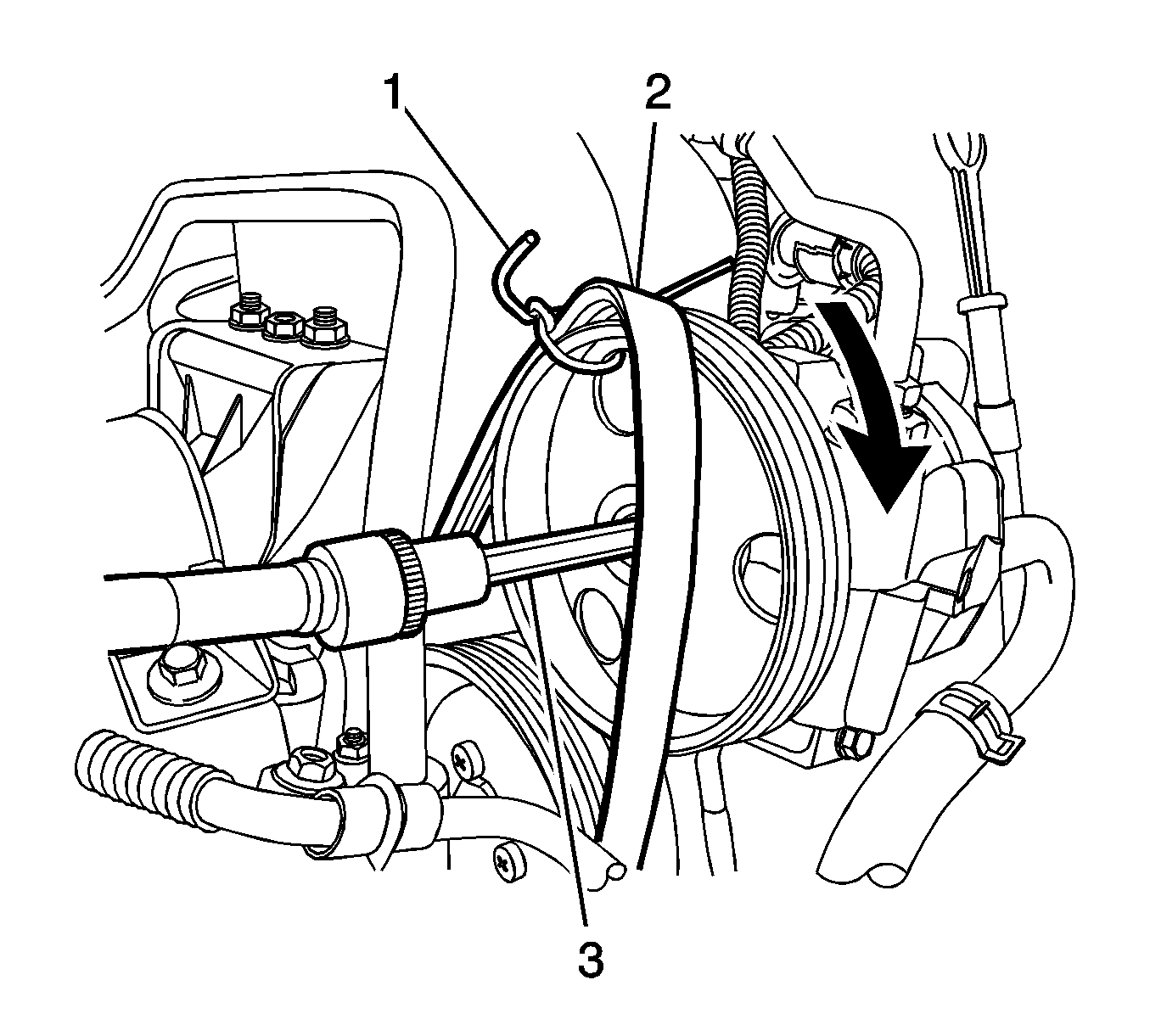

    4. Fig 2: Rotating Pulley
    GM2198630Courtesy of GENERAL MOTORS CORP.
  4. Through the pulley hole tie the driver belt to the pump pulley using a cable tie (1).
    5. NOTE: This will provide a guide function for the drive belt (2) installation.
  5. Rotate the pulley using 3/8 inch hex bit socket (3) in the power steering pump pulley shaft hole.
  6. Rotate the power steering pump pulley clockwise until the belt is fully installed on the pulley.
  7. Remove the rope or cable tie.
  8. Inspect for correct belt installation.
  9. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
  10. Install the RH headlamp assembly. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) .
  11. Install the engine accessory belt. Refer to Drive Belt Replacement .
