Inspection Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

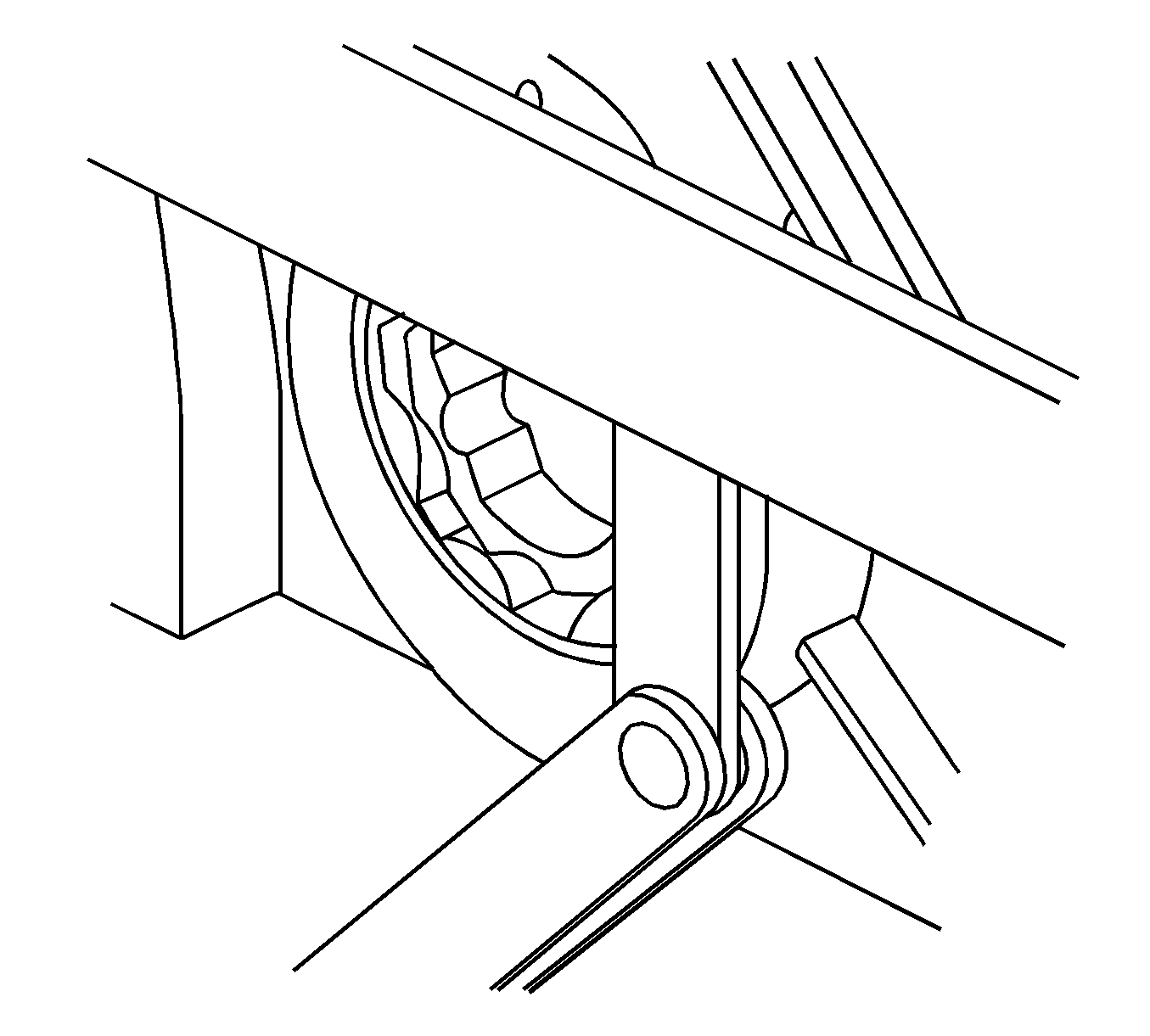

    Fig 1: Measuring Axial Clearance Of Rotors
    GM2049583Courtesy of GENERAL MOTORS CORP.
  1. Clean the measuring surface.
  2. Measure the axial clearance of rotors.

    If out-of-specifications, replace with a new one. Refer to Engine Mechanical Specifications .
