Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

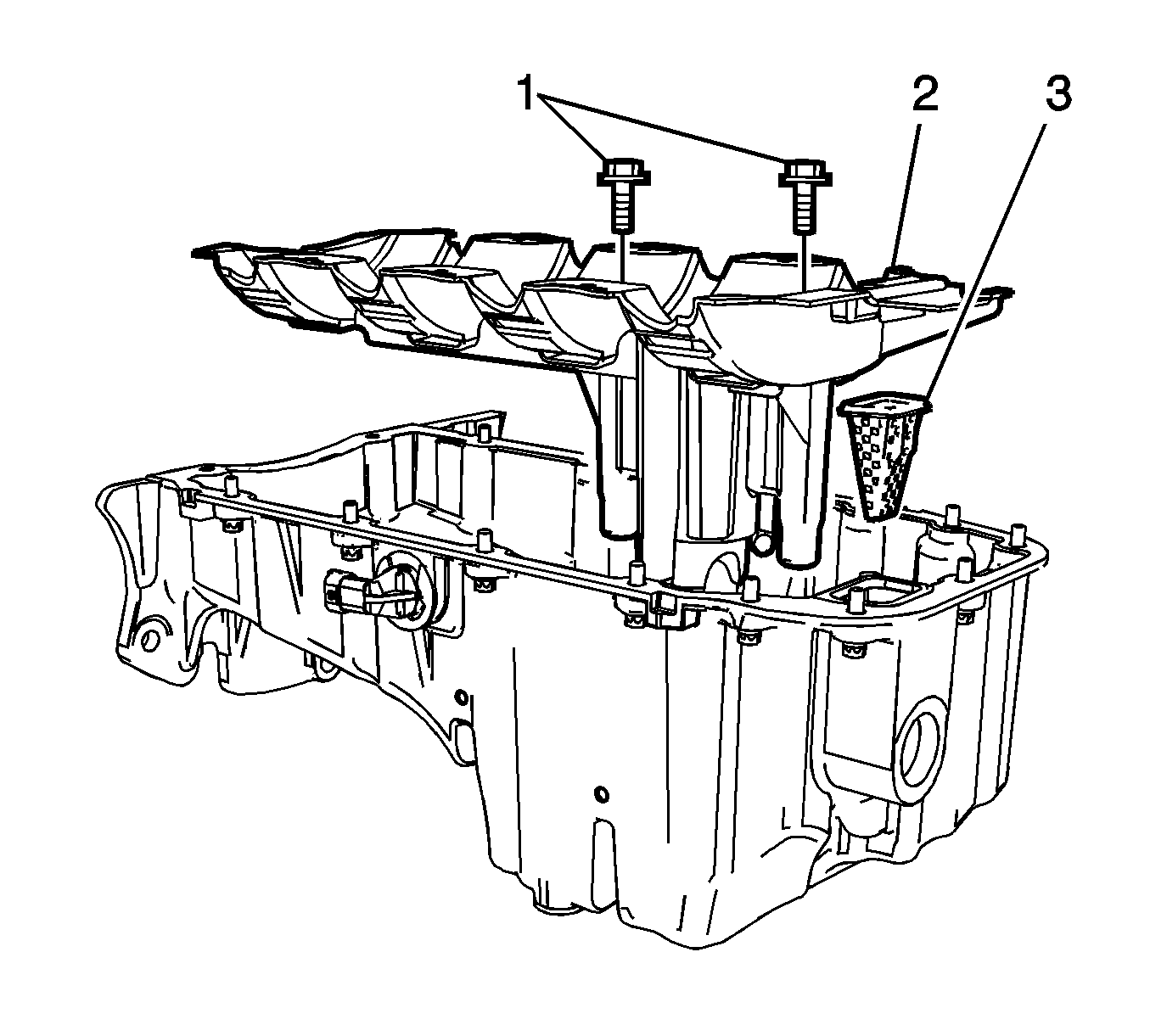

Fig 1: Oil Pan Baffle & Oil Suction Filter

Courtesy of GENERAL MOTORS CORP.

Install the oil suction filter (3) to the oil pan.

CAUTION: Refer to Fastener Caution .

Install the oil pan baffle (2).
Tighten: Tighten the oil pan baffle bolts (1) to 10 N.m (7.3 lb ft).

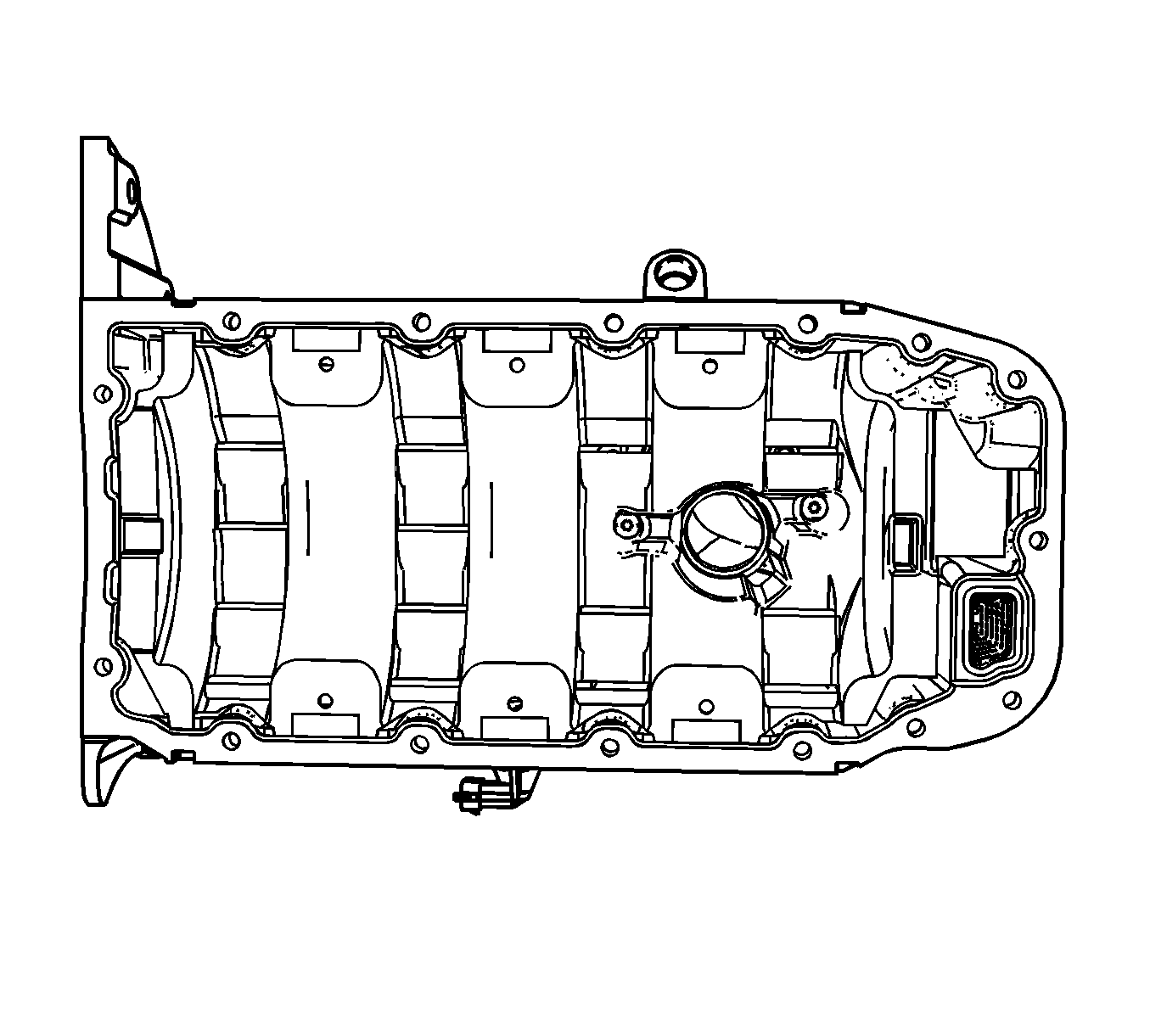

Fig 2: Oil Pan Sealing Surface

Courtesy of GENERAL MOTORS CORP.

Clean the oil pan sealing surface.
Apply the oil pan sealant LOCTITE 5900 on the sealing surface.

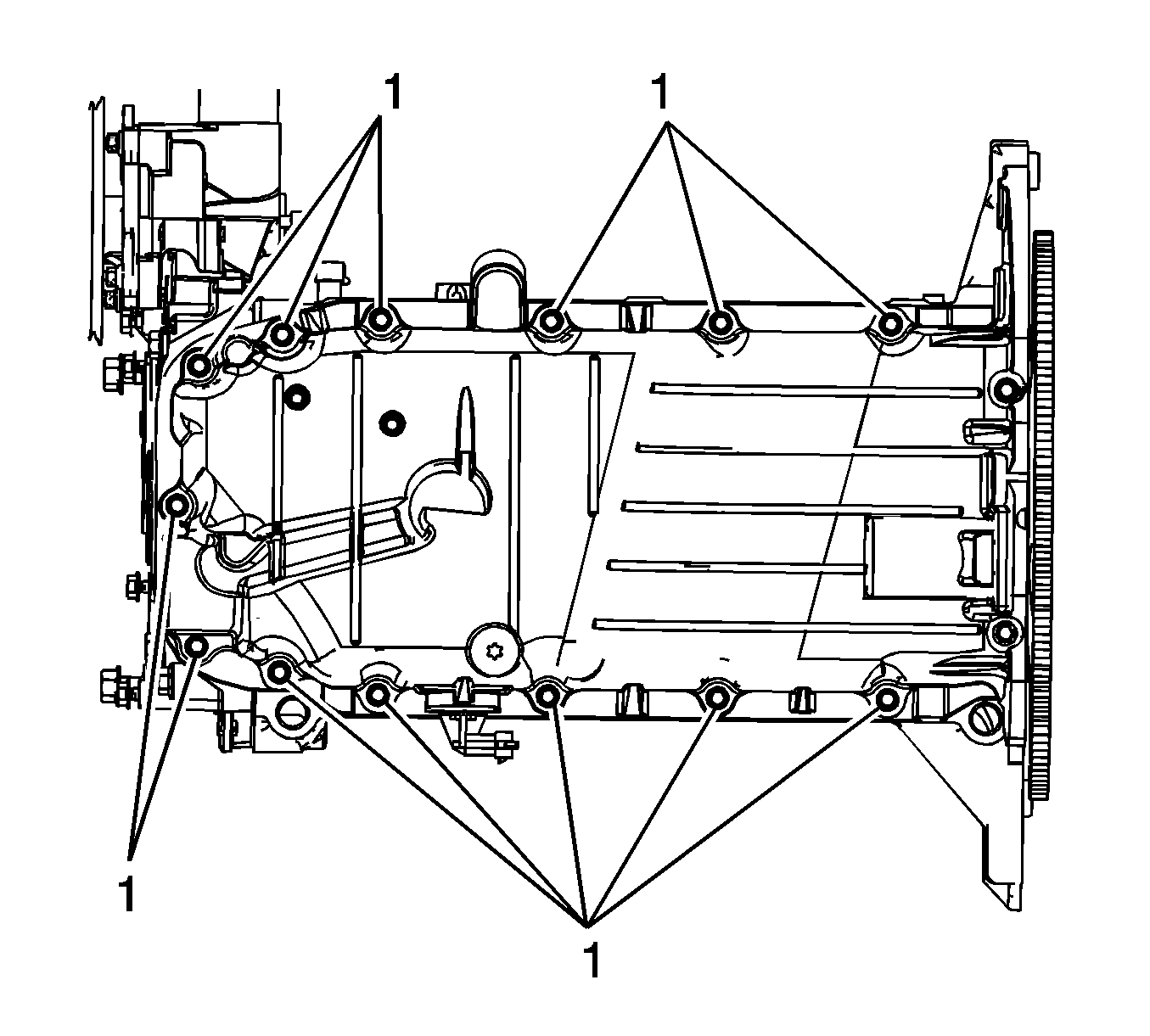

Fig 3: Oil Pan Bolts

Courtesy of GENERAL MOTORS CORP.

Install the oil pan bolts (1).
Tighten: Tighten the oil pan bolts (1) to 14 N.m (10.3 lb ft).

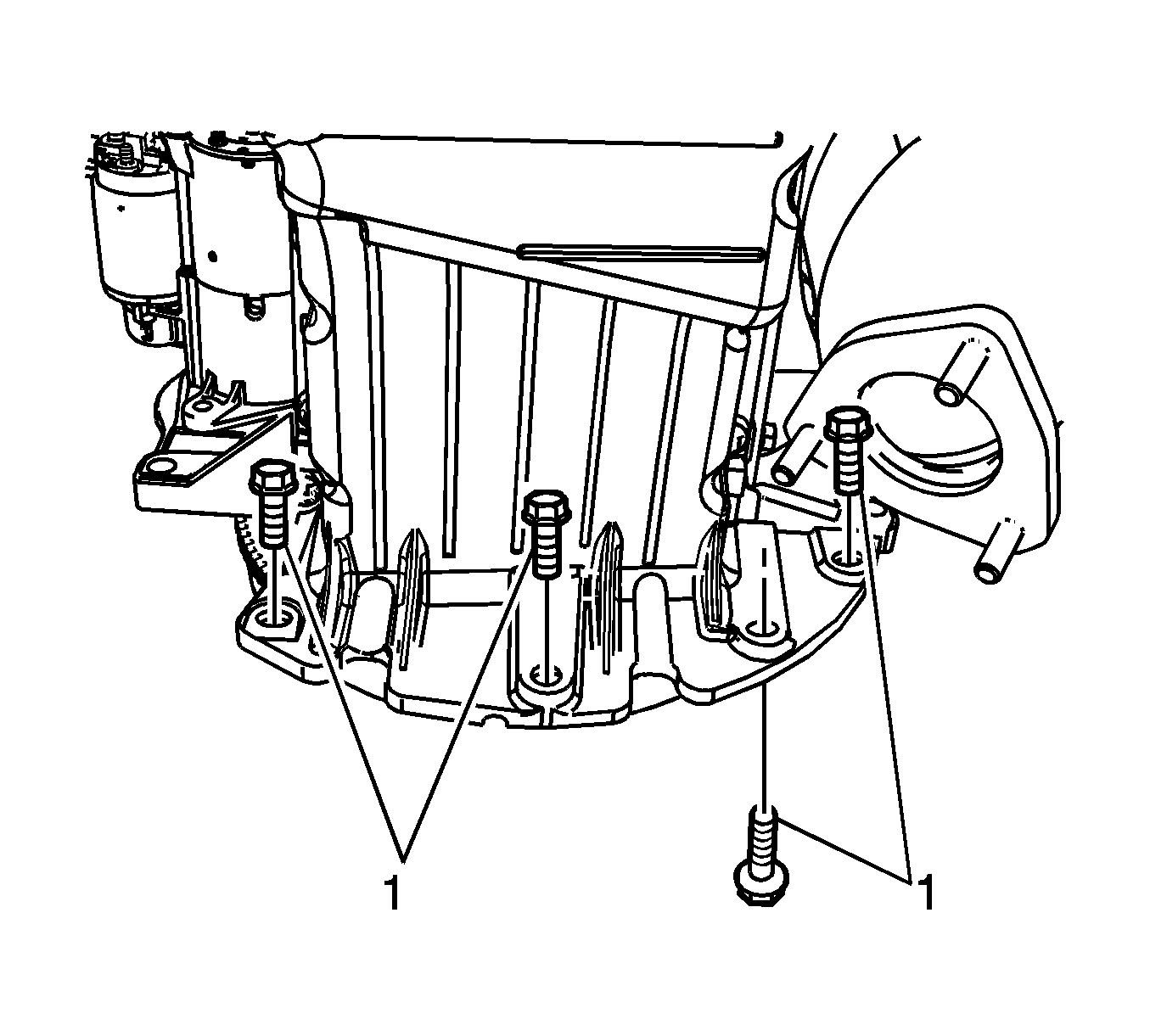

Fig 4: Oil Pan-To-Transmission Bolts

Courtesy of GENERAL MOTORS CORP.

Install the oil pan-to-transmission bolts (1).
Tighten: Tighten the oil pan-to-transmission bolts (1) to 40 N.m (29.5 lb ft).

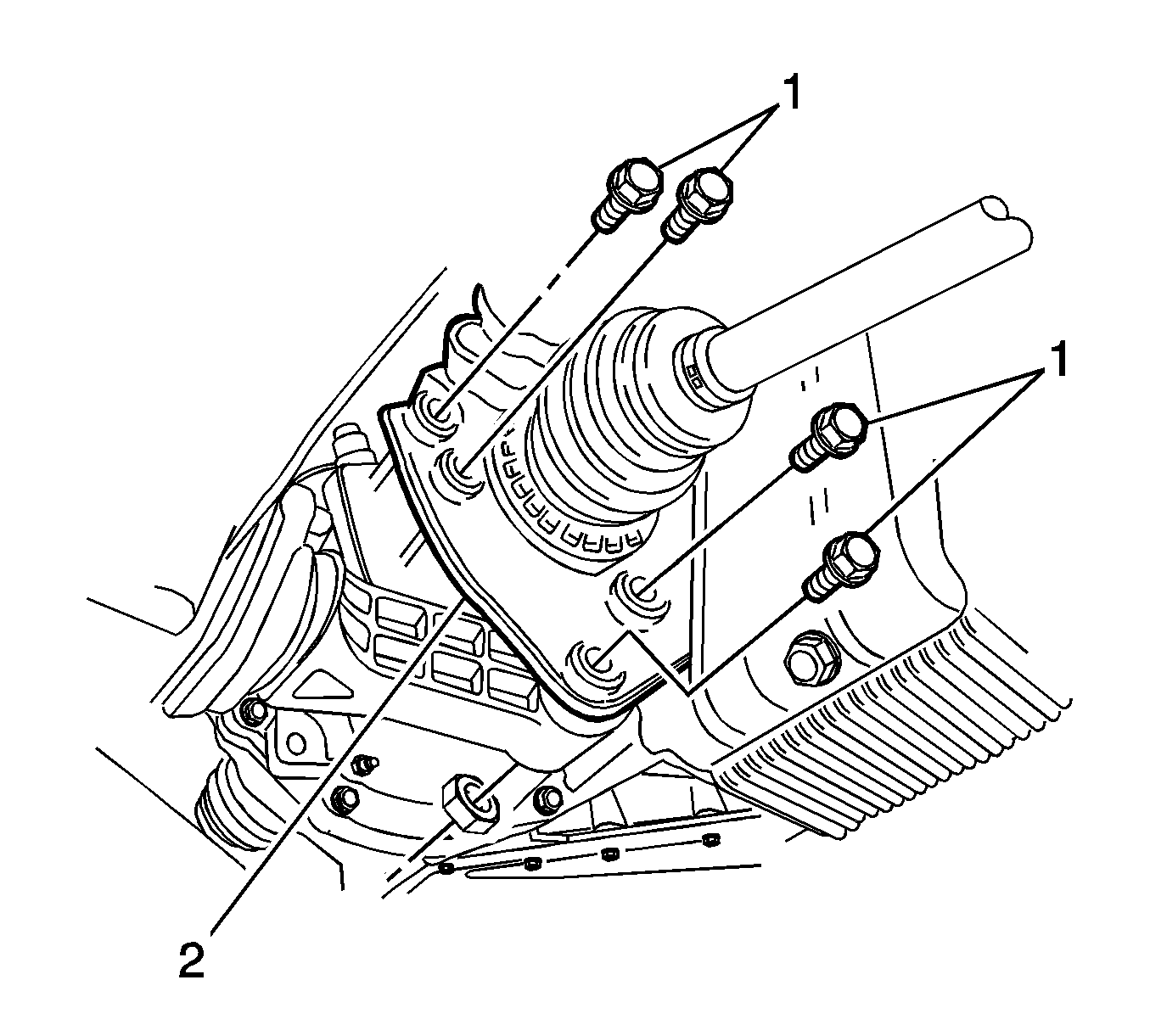

Fig 5: Transmission Rear Mounting Bracket & Bolts (A/T)

Courtesy of GENERAL MOTORS CORP.

Install the transmission rear mounting bracket (2), for automatic transmission only.
Tighten: Tighten the transmission rear mounting bracket bolts and nut to 80 N.m (59 lb ft).
