Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

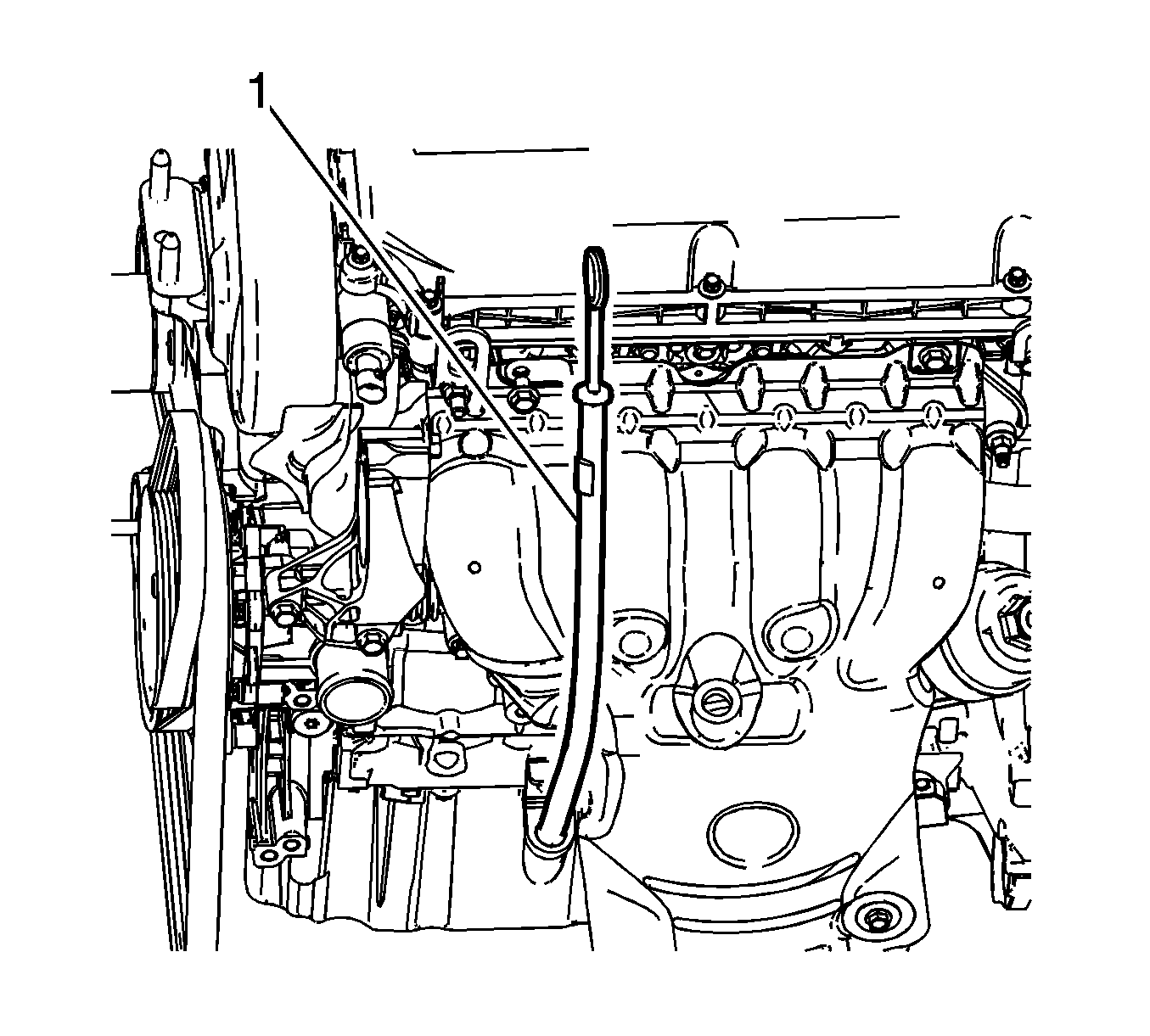

    Fig 1: Oil Indicator & Tube
    GM2049560Courtesy of GENERAL MOTORS CORP.
  1. Install the oil indicator and tube (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the oil indicator tube tightening bolt.

    Tighten:  Tighten the oil indicator tube tightening bolt to 10 N.m (7.3 lb ft).
