Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

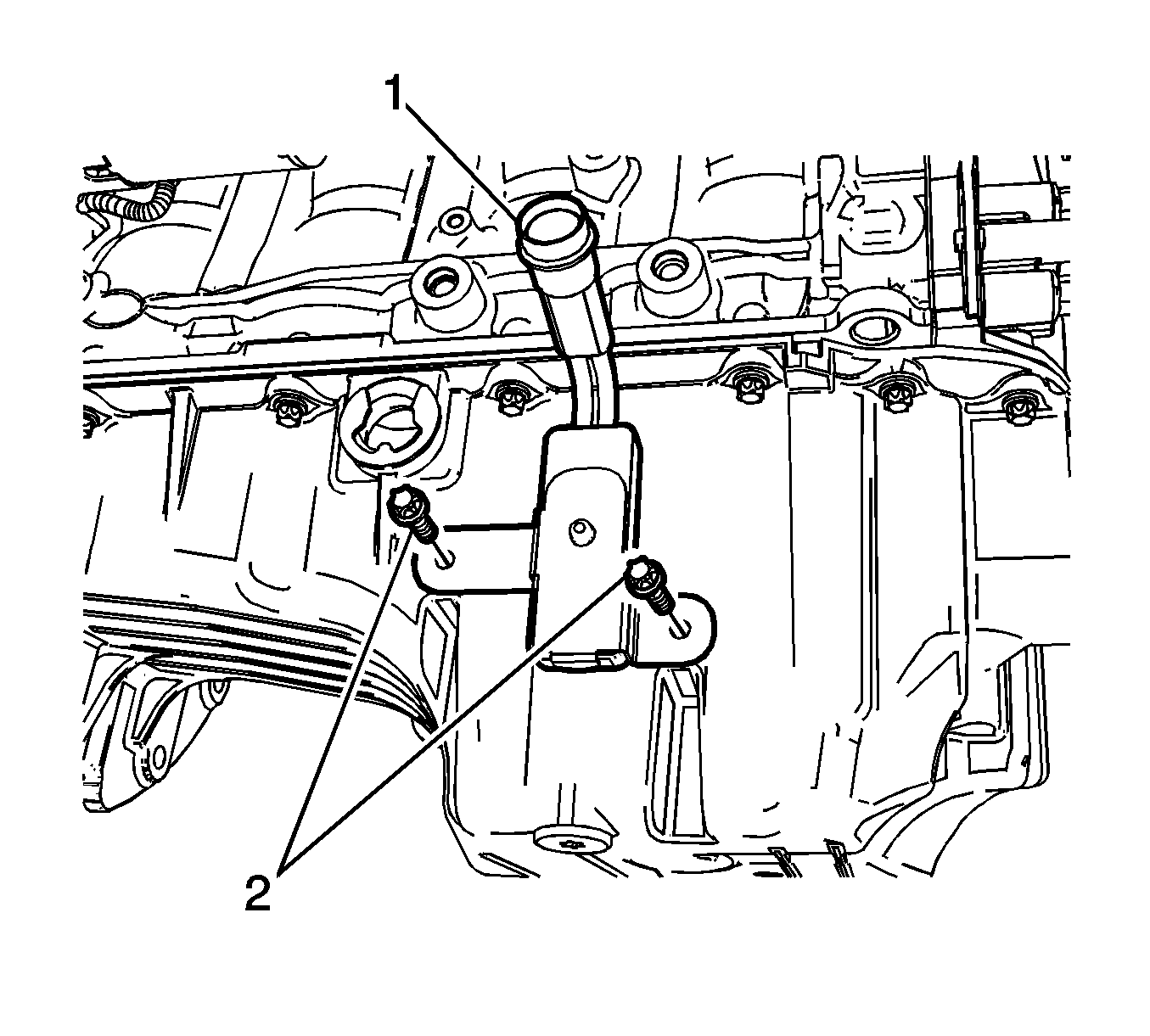

    Fig 1: Oil Pan Heater, Mounting Bolts & Injector Cable Connector
    GM2078665Courtesy of GENERAL MOTORS CORP.
  1. Apply suitable silicon on oil pan heater mounting surface.
  2. Install the oil pan heater.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil pan heater bolts (2).

    Tighten:  Tighten the coil pan heater bolts to 8 N.m (71 lb in).

  4. Connect the injector cable connector (1).
