Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
  2. Install J 28647-B:  Engine Support Fixture.

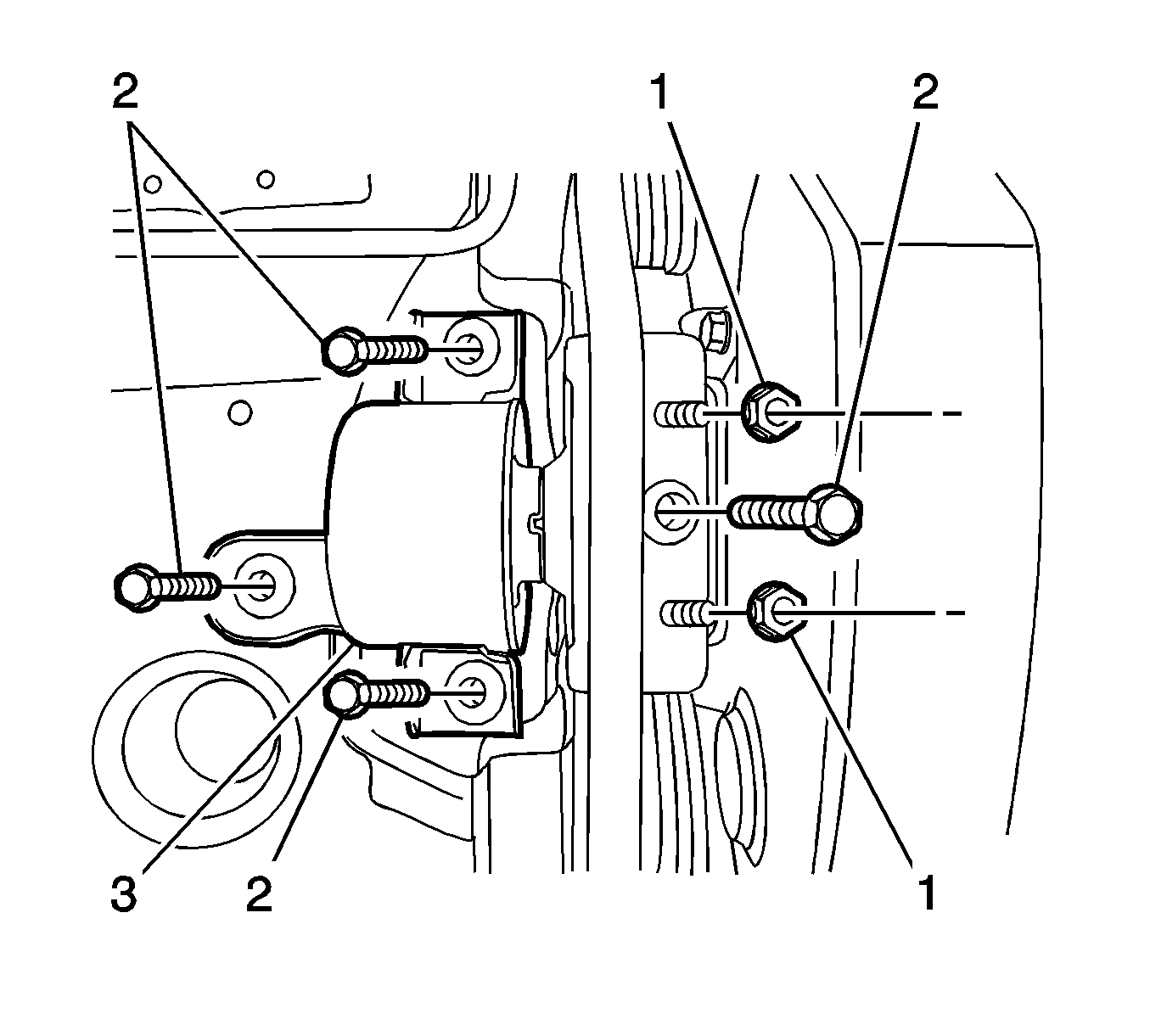

    3. Fig 1: Engine Mount, Bolts & Nuts
    GM2049373Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount bolts (2) and nuts (1).
