Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

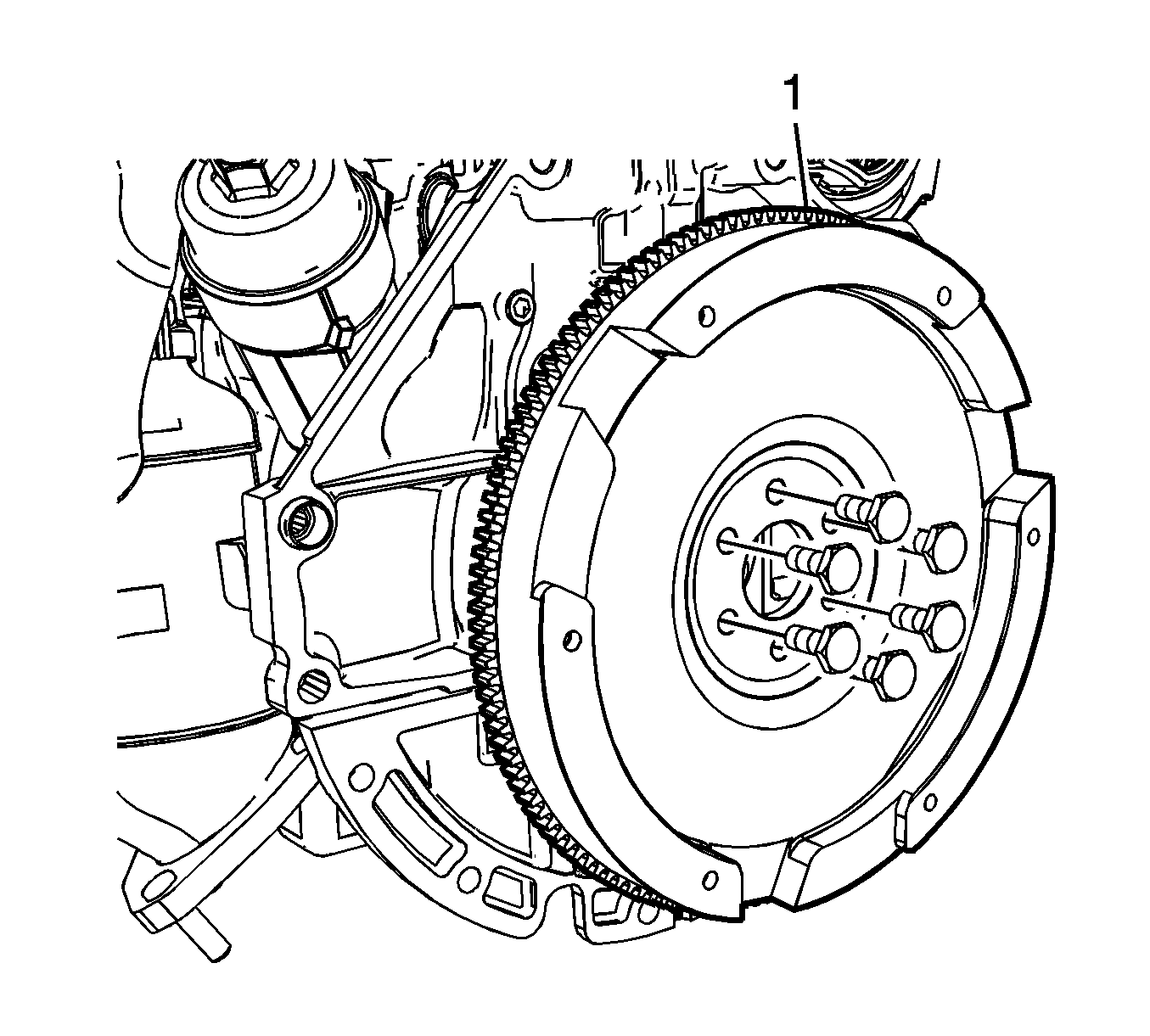

    Fig 1: Flywheel & Bolts
    GM2049589Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the flywheel bolts.

    Tighten:  Tighten the flywheel bolts to 35 N.m +30° +15° (25.8 lb ft +30° +15°).

  3. Remove KM-6625:  locking device.
  4. Install manual transaxle. Refer to Transmission Replacement D16
