Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

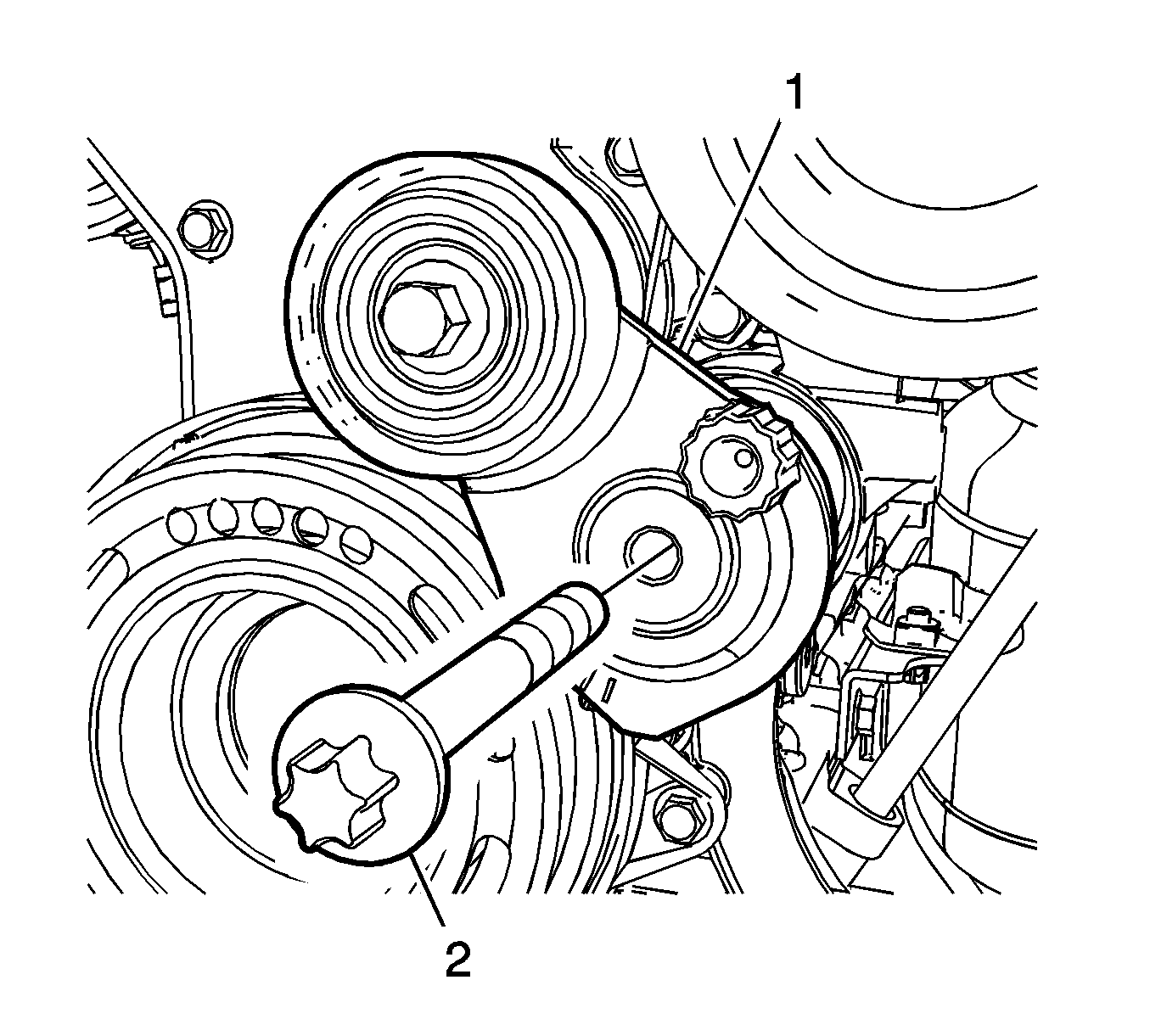

    Fig 1: Accessory Belt Tensioner
    GM2049353Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the accessory belt tensioner (1) and tighten to 50 N.m (36.8 lb ft).
    2. Fig 2: Accessory Belt & Tensioner Star-Nut
    GM2049041Courtesy of GENERAL MOTORS CORP.
  2. Install the power steering belt. Refer to Power Steering Pump Replacement (1.4L LDT and 1.6L LXV Engines) .
  3. Rotate the tensioner star-nut (1) and install the accessory belt.
  4. Install the engine front shield at the position of right front wheel.
