Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

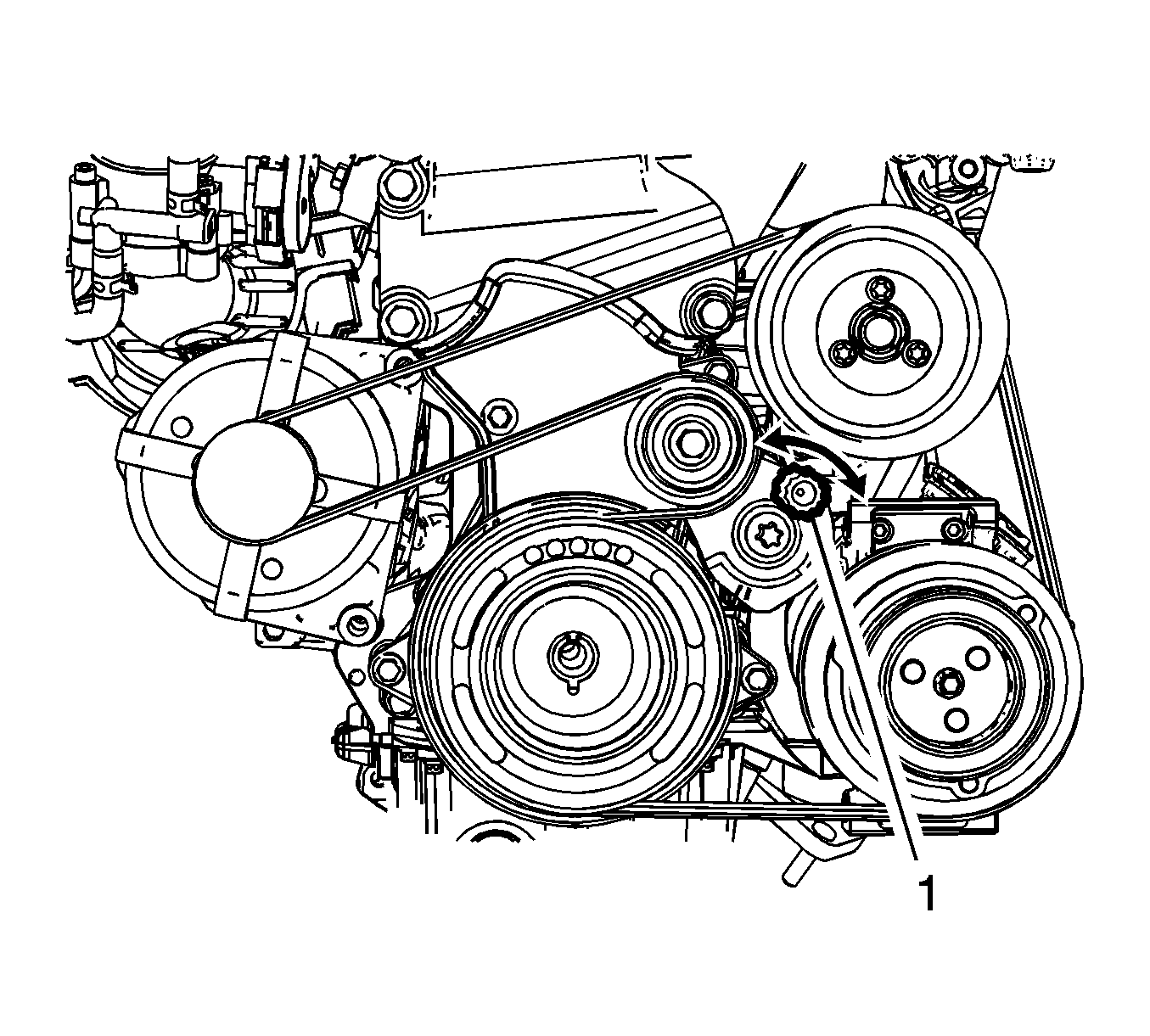

    Fig 1: Accessory Drive Belt Routing & Tensioner Star-Nut
    GM2049041Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering belt. Refer to Power Steering Pump Belt Replacement .
  2. Rotate the tensioner star-nut (1) and install the accessory belt.
  3. Install the engine front shield at the position of right front wheel.
