Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

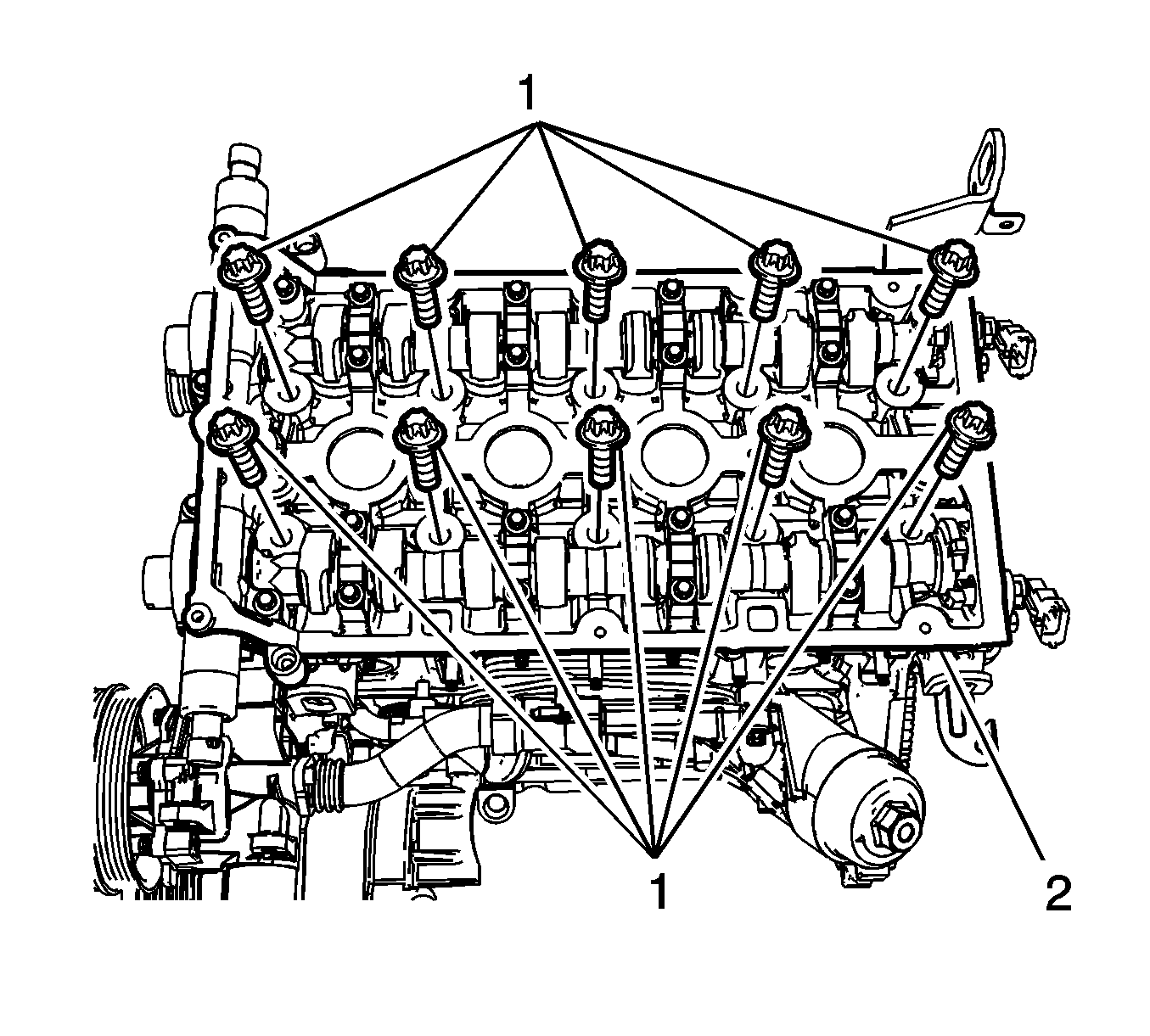

    Fig 1: Cylinder Head & Bolts
    GM2049556Courtesy of GENERAL MOTORS CORP.
  1. Install the cylinder head (2) with the new gasket.
    2. CAUTION: Refer to Fastener Caution .

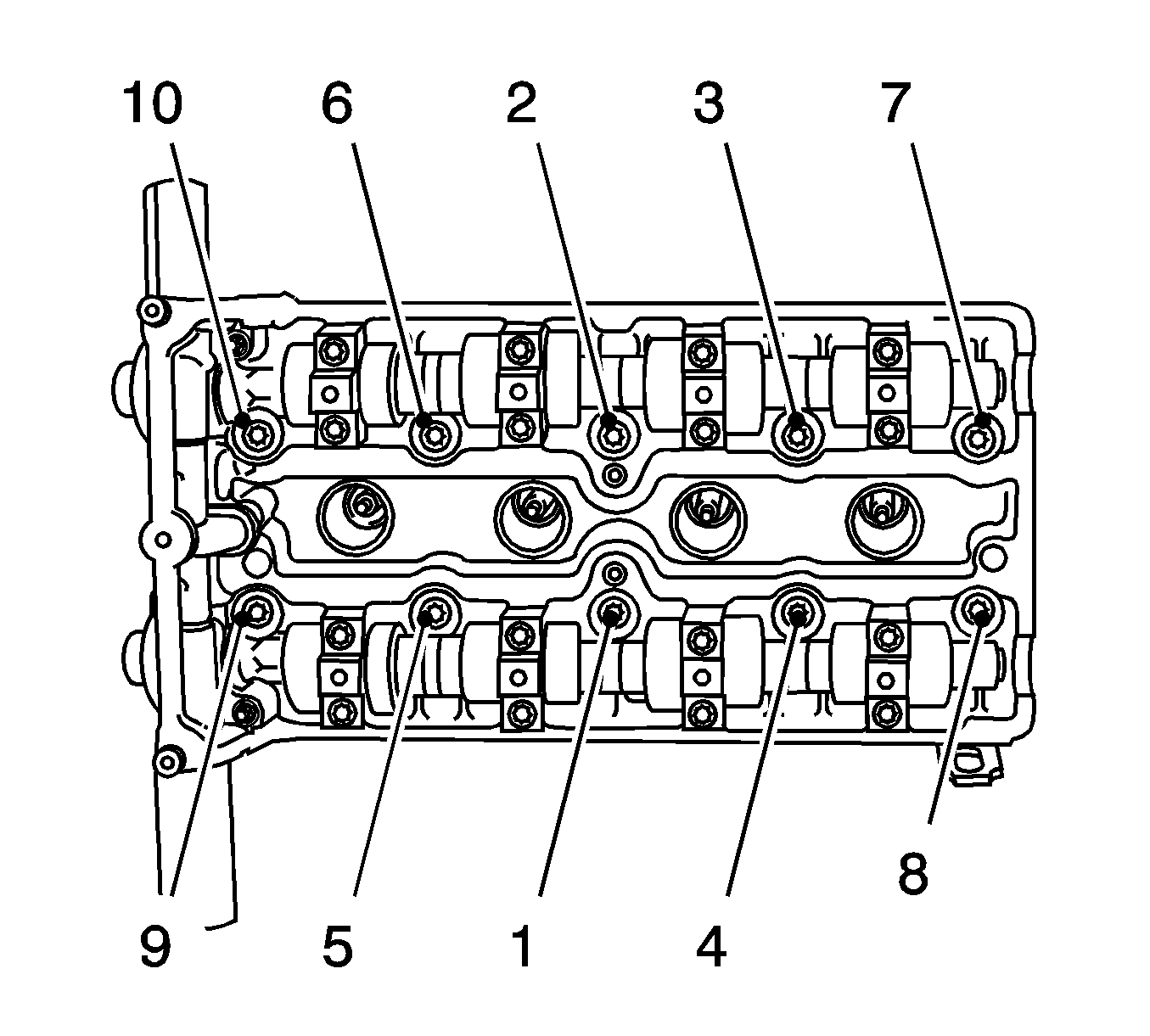

    Fig 2: Cylinder Head Bolt Tightening Sequence
    GM1945821Courtesy of GENERAL MOTORS CORP.
  2. Install the cylinder head bolts (1) and tighten to 25 N.m +90° +90° +90° +45° (18.4 lb ft +90° +90° +90° +45° ).

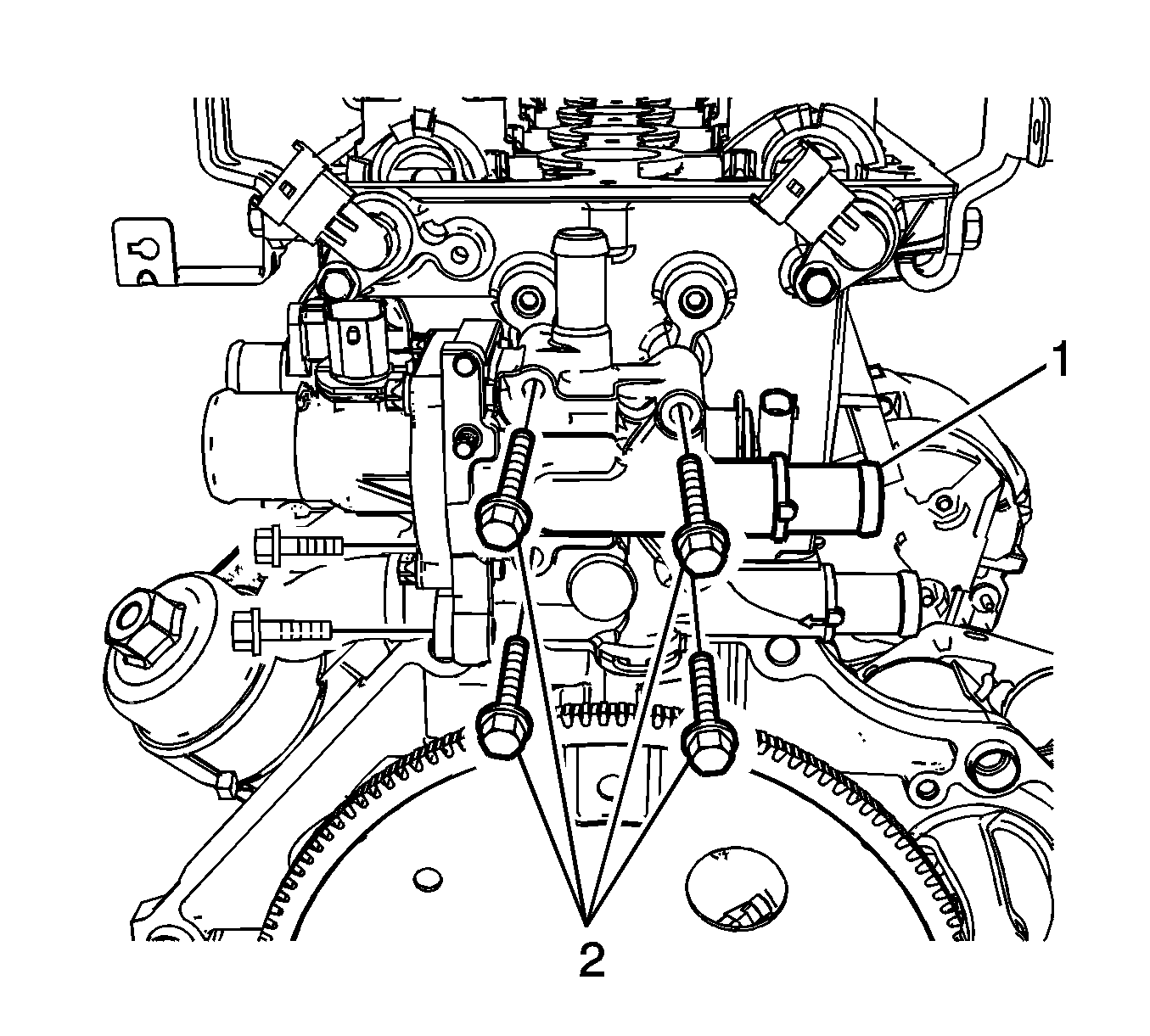

    3. Fig 3: Coolant Distributor
    GM2049555Courtesy of GENERAL MOTORS CORP.
  3. Install the coolant distributor (1).
  4. Install the exhaust manifold. Refer to Catalytic Converter Replacement (1.4L LDT/1.6L LXV) .
  5. Install the intake manifold. Refer to Intake Manifold Replacement .

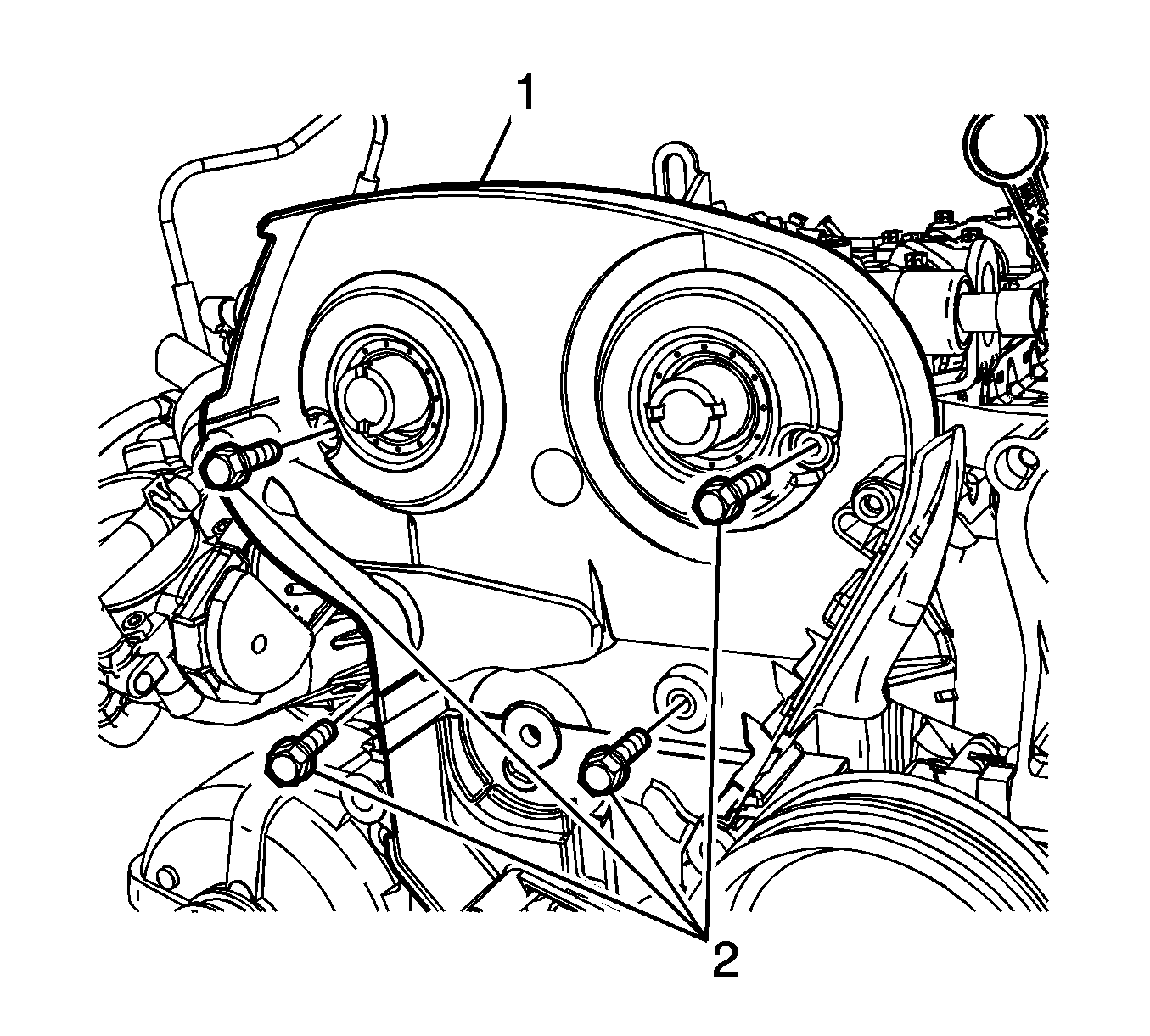

    6. Fig 4: Timing Belt Rear Cover & Bolts
    GM2049388Courtesy of GENERAL MOTORS CORP.
  6. Install the timing belt rear cover (1) and tighten to 6 N.m (53.1 lb in).
  7. Install the camshaft. Refer to Camshaft Replacement .
  8. Adjust the belt timing. Refer to Timing Belt Replacement .
