Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

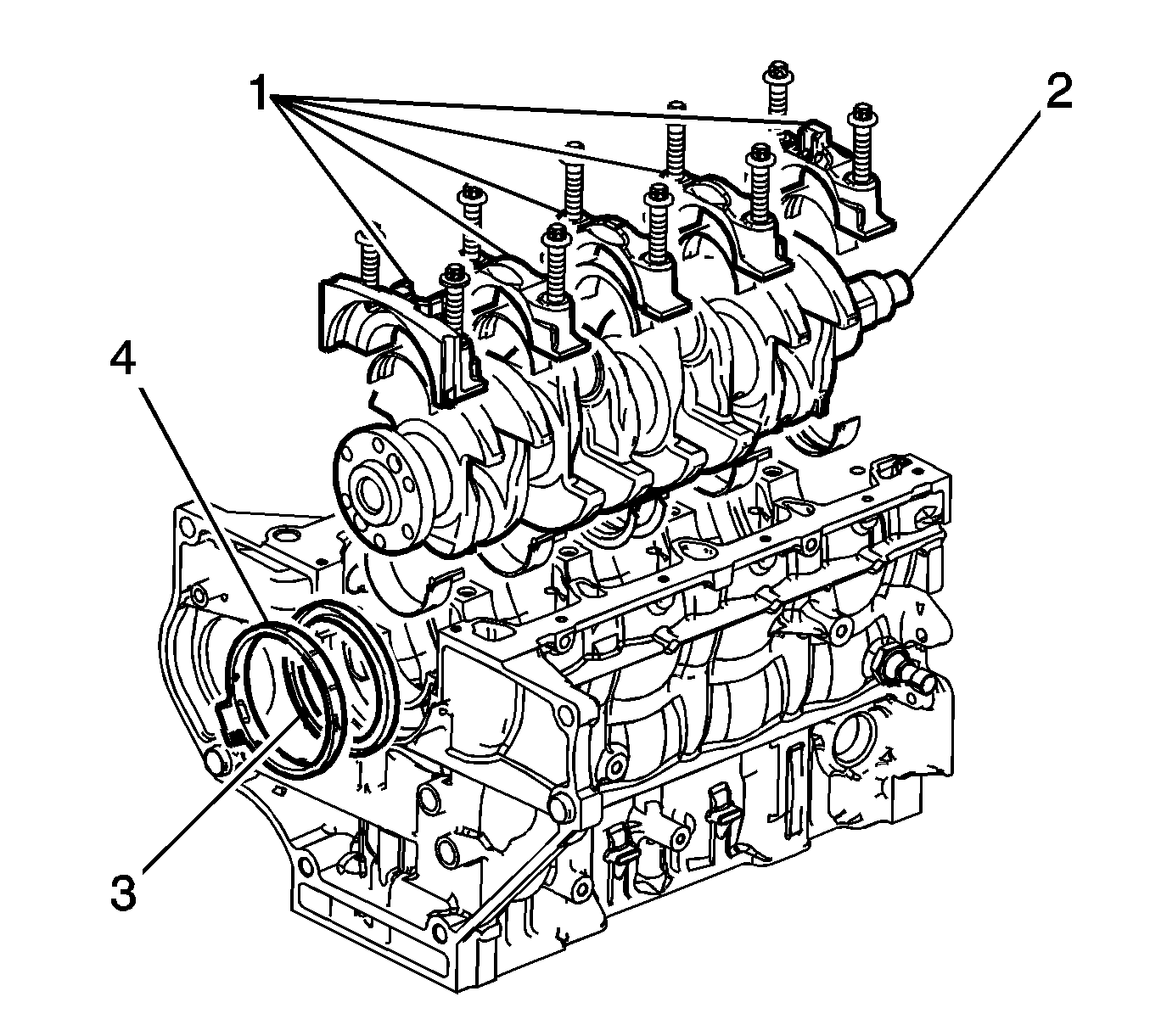

    Fig 1: Crankshaft, Seal, Caps & Bolts
    GM2049770Courtesy of GENERAL MOTORS CORP.
    NOTE: Check and confirm the sequence of the crankshaft caps and bearings.
  1. Coat and lubricate the crankshaft caps and bearings (1).
  2. Install the crankshaft (2) with bearings in sequences.
  3. Install the crankshaft caps with journal bearings (1).

    Tighten:  Tighten the crankshaft cap bolts to 50+50° N.m (36.8+50° lb ft).

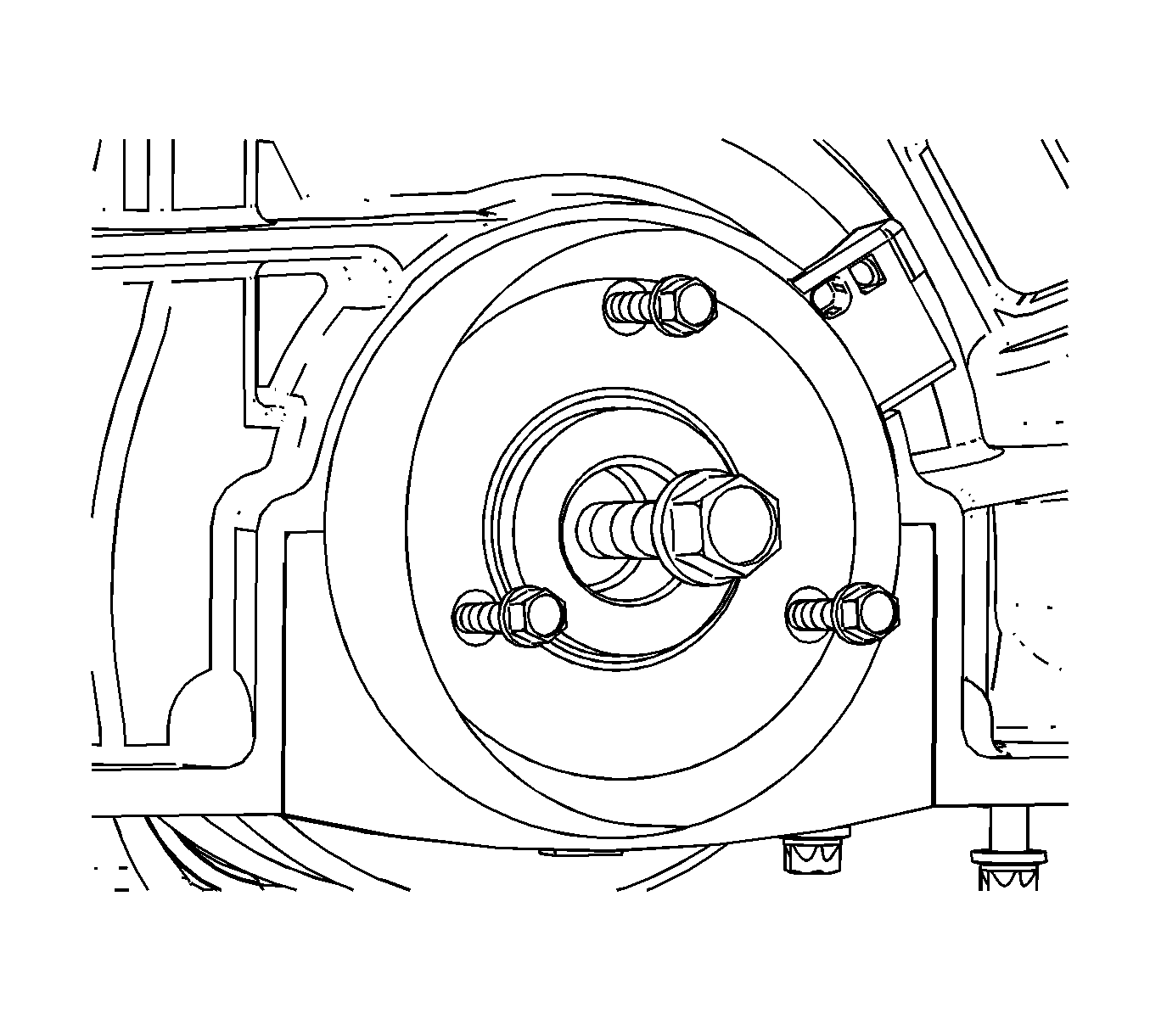

    4. Fig 2: Crankshaft Rear Oil Seal, Housing & Bolts
    GM2049601Courtesy of GENERAL MOTORS CORP.
  4. Attach the crankshaft rear oil seal to the housing.
  5. Install the crankshaft rear oil seal. Refer to Crankshaft Rear Oil Seal Replacement .
  6. Install the pistons and connecting rods. Refer to Piston, Connecting Rod, and Bearing Replacement .
