Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel or flexible plate. Refer to Automatic Transmission Flex Plate Replacement  and Engine Flywheel Replacement .
  2. Remove the crankshaft position (CKP) sensor. Refer to CRANKSHAFT POSITION SENSOR REPLACEMENT .

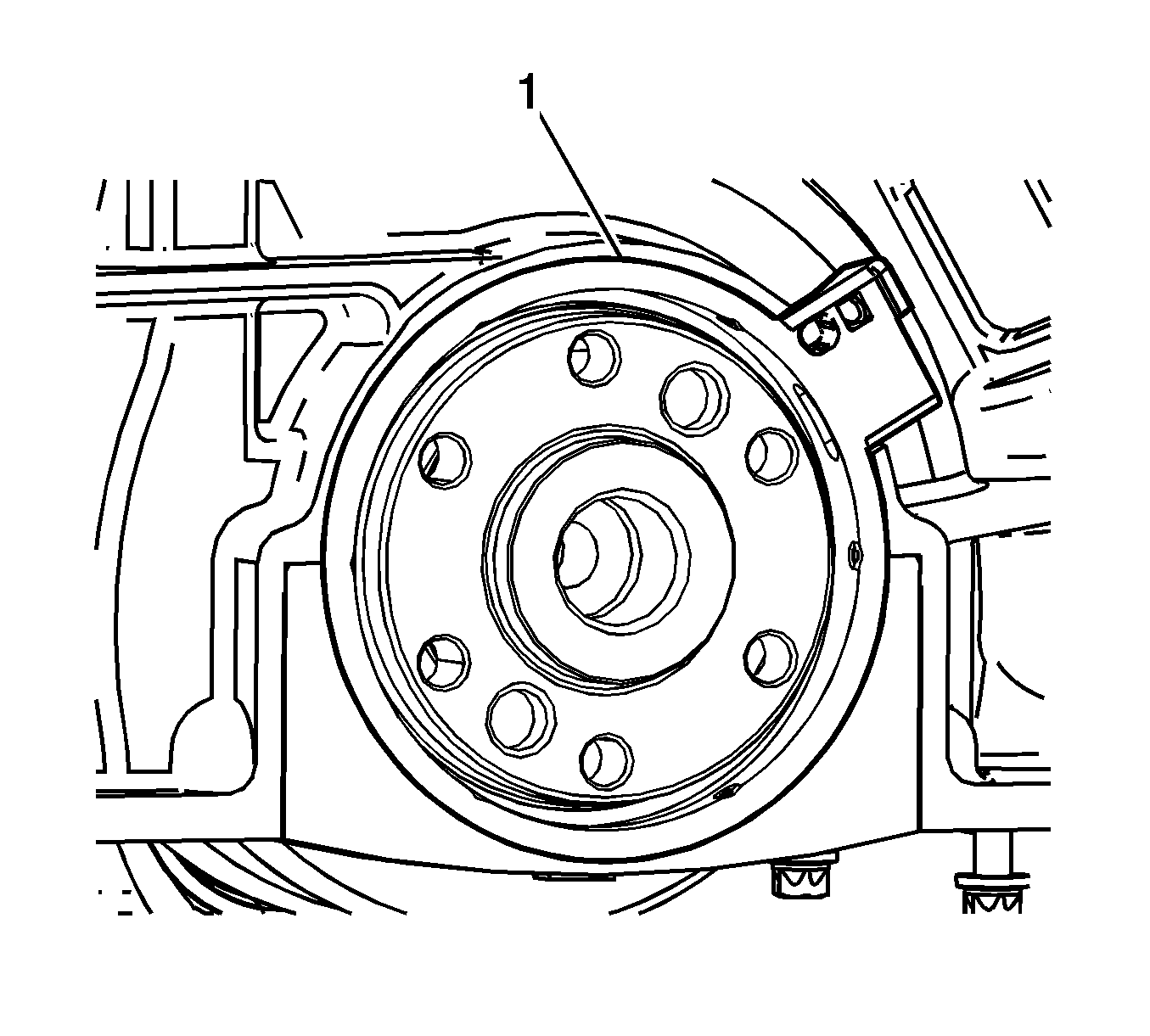

    3. Fig 1: Crankshaft Rear Oil Seal
    GM2049600Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft rear oil seal with housing (1).
