Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt. Refer to Timing Belt Replacement .
  2. Remove the crankshaft sprocket.

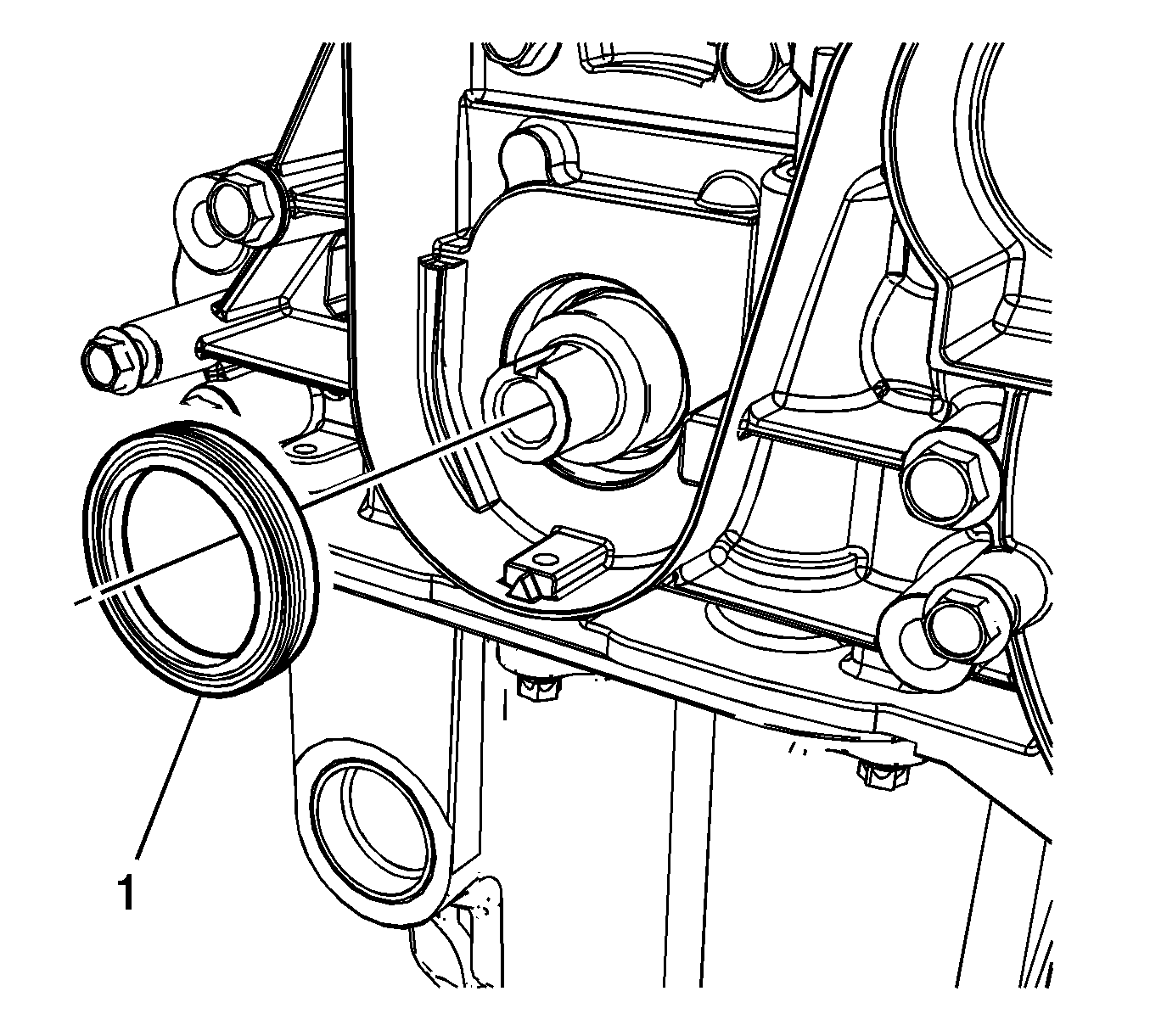

    3. Fig 1: Crankshaft Front Oil Seal Ring
    GM2049595Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft front oil seal ring (1).
